    SelectionTag Class Reference

    #include <c4d_basetag.h>

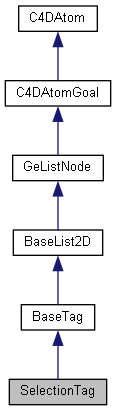

    Inheritance diagram for SelectionTag:
    Inheritance graph
    [legend]

    Detailed Description

    Represents the Selection tag.
    Holds user defined point, polygon and edge selections.

    Note
    Has to be created with Alloc() and destroyed with Free(). Use AutoAlloc to automate the allocation and destruction based on scope.

    Private Member Functions

     SelectionTag ()

     ~SelectionTag ()


    Alloc/Free

    static SelectionTag * Alloc (Int32 type)

    static void Free (SelectionTag *&bl)


    Get Selection

    BaseSelect * GetBaseSelect ()


    Additional Inherited Members

    - Public Member Functions inherited from BaseTag
    Bool Draw (BaseObject *op, BaseDraw *bd, BaseDrawHelp *bh)

    BaseTag * GetNext ()

    BaseTag * GetPred ()

    BaseObject * GetObject ()

    BaseTag * GetOrigin ()

    - Public Member Functions inherited from BaseList2D
    void SetBit (Int32 mask)

    Bool GetBit (Int32 mask) const

    void DelBit (Int32 mask)

    void ToggleBit (Int32 mask)

    Int32 GetAllBits () const

    void SetAllBits (Int32 bits)

    void SetBitEx (Int32 mask, Int32 flags)

    const Char * GetViewportRenderId (VIEWPORT_RENDER_ID typeId) const

    BaseList2D * GetNext ()

    BaseList2D * GetPred ()

    BaseContainer GetData ()

    void SetData (const BaseContainer &bc, Bool add=true)

    const BaseContainer * GetDataInstance () const

    BaseContainer * GetDataInstance ()

    const BaseContainer & GetDataInstanceRef () const

    BaseContainer & GetDataInstanceRef ()

    String GetName () const

    void SetName (const maxon::String &name)

    String GetBubbleHelp ()

    Bool TransferGoal (BaseList2D *dst, Bool undolink)

    Bool TransferMarker (BaseList2D *dst) const

    Bool Scale (Float scale)

    Bool Edit ()

    void GetIcon (IconData *dat)

    GeListHead * GetNLARoot ()

    BaseList2D * AnimationLayerRemap (BaseObject **layer=nullptr)

    String GetTypeName ()

    BaseList2D * GetMain () const

    void InsertTrackSorted (CTrack *track)

    Bool AddEventNotification (BaseList2D *bl, NOTIFY_EVENT eventid, NOTIFY_EVENT_FLAG flags, const BaseContainer *data)

    Bool RemoveEventNotification (BaseDocument *doc, BaseList2D *bl, NOTIFY_EVENT eventid)

    Bool FindEventNotification (BaseDocument *doc, BaseList2D *bl, NOTIFY_EVENT eventid)

    Bool SetDescIDState (const DescID &id, DESCIDSTATE descidstate)

    DESCIDSTATE GetDescIDState (const DescID &id, Bool tolerant) const

    GeListHead * GetOverrideRoot ()

    BaseOverride * GetFirstOverride ()

    GeListHead * GetShaderRepositoryRoot ()

    GeListHead * GetHiddenShaderRoot ()

    maxon::NimbusForwardRef GetNimbusRef (const maxon::Id &spaceId) const

    maxon::Result< maxon::NimbusForwardRef > PrivateGetOrCreateNimbusRef (const maxon::Id &spaceId)

    void RemoveNimbusRef (const maxon::Id &spaceId)

    maxon::Result< maxon::HashMap< maxon::Id, maxon::NimbusForwardRef > > GetAllNimbusRefs () const

    Bool IsNodeBased () const

    void GetMarkerStampEx (UInt32 *l1, UInt32 *l2)

    const GeMarker & GetMarker () const

    void SetMarker (const GeMarker &m)

    Bool AddUniqueID (Int32 appid, const Char *const mem, Int bytes)

    Bool FindUniqueID (Int32 appid, const Char *&mem, Int &bytes) const

    Int32 GetUniqueIDCount () const

    Bool GetUniqueIDIndex (Int32 idx, Int32 &id, const Char *&mem, Int &bytes) const

    Bool SetAnimatedParameter (CTrack *track, const DescID &id, const GeData &t_data1, const GeData &t_data2, Float mix, DESCFLAGS_SET flags)

    Bool GetAnimatedParameter (const DescID &id, GeData &t_data1, GeData &t_data2, Float &mix, DESCFLAGS_GET flags)

    BaseShader * GetFirstShader () const

    void InsertShader (BaseShader *shader, BaseShader *pred=nullptr)

    void ClearKeyframeSelection ()

    Bool FindKeyframeSelection (const DescID &id)

    Bool SetKeyframeSelection (const DescID &id, Bool selection)

    Bool KeyframeSelectionContent ()

    LayerObject * GetLayerObject (BaseDocument *doc)

    Bool SetLayerObject (LayerObject *layer)

    const LayerData * GetLayerData (BaseDocument *doc, Bool rawdata=false)

    Bool SetLayerData (BaseDocument *doc, const LayerData &data)

    GeListHead * GetCTrackRoot ()

    CTrack * GetFirstCTrack ()

    CTrack * FindCTrack (const DescID &id)

    - Public Member Functions inherited from GeListNode
    GeListNode * GetNext ()

    GeListNode * GetPred ()

    GeListNode * GetDown ()

    GeListNode * GetUp ()

    GeListNode * GetDownLast ()

    void InsertBefore (GeListNode *bl)

    void InsertAfter (GeListNode *bl)

    void InsertUnder (GeListNode *bl)

    void InsertUnderLast (GeListNode *bl)

    void Remove ()

    GeListHead * GetListHead ()

    Int32 GetNodeID (Int32 index=0) const

    template<typename CAST >
    const CAST * GetNodeData (Int32 index=0) const

    template<typename CAST >
    CAST * GetNodeData (Int32 index=0)

    void SetCustomData (GeListNode *node)

    GeListNode * GetCustomData ()

    BaseDocument * GetDocument ()

    Int32 GetBranchInfo (BranchInfo *info, Int32 max, GETBRANCHINFO flags)

    Bool IsDocumentRelated ()

    Int32 GetInfo () const

    Bool GetNBit (NBIT bit) const

    UInt32 GetNBitMask (Int32 index) const

    Bool ChangeNBit (NBIT bit, NBITCONTROL bitmode)

    - Public Member Functions inherited from C4DAtom
    Int32 GetType () const

    Int32 GetRealType () const

    Int32 GetDiskType () const

    Bool IsInstanceOf (Int32 id) const

    Int32 GetClassification () const

    Bool Message (Int32 type, void *data=nullptr)

    Bool MultiMessage (MULTIMSG_ROUTE flags, Int32 type, void *data)

    C4DAtom * GetClone (COPYFLAGS flags, AliasTrans *trn)

    Bool CopyTo (C4DAtom *dst, COPYFLAGS flags, AliasTrans *trn)

    Bool Read (HyperFile *hf, Int32 id, Int32 level)

    Bool Write (HyperFile *hf)

    Bool ReadObject (HyperFile *hf, Bool readheader)

    Bool WriteObject (HyperFile *hf)

    Bool GetDescription (Description *description, DESCFLAGS_DESC flags)

    Bool GetParameter (const DescID &id, GeData &t_data, DESCFLAGS_GET flags)

    Bool SetParameter (const DescID &id, const GeData &t_data, DESCFLAGS_SET flags)

    DynamicDescription * GetDynamicDescription ()

    Bool GetEnabling (const DescID &id, const GeData &t_data, DESCFLAGS_ENABLE flags, const BaseContainer *itemdesc)

    Bool TranslateDescID (const DescID &id, DescID &res_id, C4DAtom *&res_at)

    UInt32 GetDirty (DIRTYFLAGS flags) const

    void SetDirty (DIRTYFLAGS flags)

    UInt32 GetHDirty (HDIRTYFLAGS mask) const

    void SetHDirty (HDIRTYFLAGS mask)

    - Static Public Member Functions inherited from BaseTag
    static BaseTag * Alloc (Int32 type)

    static void Free (BaseTag *&bl)

    - Static Public Member Functions inherited from BaseList2D
    static BaseList2D * Alloc (Int32 type)

    static void Free (BaseList2D *&bl)

    - Static Public Attributes inherited from BaseList2D
    static const Int32 SETBIT_FLAG_NODIRTY

    static const Int32 SETBIT_FLAG_REMOVE


    Constructor & Destructor Documentation

    ◆ SelectionTag()

    SelectionTag ( )
    		private

    ◆ ~SelectionTag()

    ~SelectionTag ( )
    		private

    Member Function Documentation

    ◆ Alloc()

    static SelectionTag* Alloc ( Int32  type)
    		static

    Allocates a selection tag. Destroy the allocated selection tag with Free(). Use AutoAlloc to automate the allocation and destruction based on scope.

    Parameters
    [in]typeThe selection tag type: SelectionTag Types
    Returns
    The allocated selection tag, or nullptr if the allocation failed.

    ◆ Free()

    static void Free ( SelectionTag *&  bl)
    		static

    Destructs selection tags allocated with Alloc(). Use AutoAlloc to automate the allocation and destruction based on scope.

    Parameters
    [in,out]blThe selection tag to destruct. If the pointer is nullptr nothing happens. The pointer is assigned nullptr afterwards.

    ◆ GetBaseSelect()

    BaseSelect* GetBaseSelect ( )

    Gets the selection.

    Returns
    The selection. The tag owns the pointed selection.
