    Best posts made by ECHekman

    • RE: Natvis settings not working?

      Thanks Ferdinand. Putting those lines in the projectdefinitions.txt of the solution was the... solution 😉

      posted in Cinema 4D SDK
      E
      ECHekman
    • RE: How to expose C++ symbols to Python users as a third party?

      Definitly interested 🙂

      posted in General Talk
      E
      ECHekman
    • RE: Strange string addition crash

      Thanks for your response. We found the issue. Turns out we had to delay load our dlls for earlier versions of the plugin R21 etc

      posted in Cinema 4D SDK
      E
      ECHekman

    Latest posts made by ECHekman

    • RE: Document copied for Picture viewer doesnt copy contents of child of a TagData

      Thanks for your reply m_adam

      Thanks for providing the information that the init function should not modify the scene graph. Ill take this into account in the future.

      I went through that example you linked, but Im a bit unclear why it is nessesary to manually create the handling of a custom and parallel nodegraph branch when plugin GeListNodes are already graphs themselves?

      posted in Cinema 4D SDK
      E
      ECHekman
    • Document copied for Picture viewer doesnt copy contents of child of a TagData

      I am encountering a problem when rendering to picture viewer.
      I have two plugins, a TagData and a NodeData as its child.
      I also created a link from the TagData to the NodeData for easy access
      However when the document is copied and sent to the picture viewer renderer there are two issues.

      1. The link is not copied
      2. The contents of the NodeData basecontainer are not copied over

      The copied TagData does have a child object with my type, so it does exist

      Here is how I connect the two plugins

      Bool MyTagData::Init(GeListNode* node, Bool isCloneInit)
      {
          BaseTag* tag = (BaseTag*)node;
          BaseContainer *data = tag->GetDataInstance();
          BaseList2D* mynodedata= BaseList2D::Alloc(ID_MY_NODEDATA); // Creating my MyNodeData
          mynodedata->InsertUnderLast(node); //Add as mynodedata as a child to mytagdata
          data->SetLink(MYTAG_NODEDATA_INK, mynodedata); //Add link for easy access
          return true;
      }


      This basically works in all situations, except when sending it to the picture viewer for rendering.
      I feel like im missing something, but i cant find what in the documentation

      posted in Cinema 4D SDK c++
      E
      ECHekman
    • RE: Getting an effective value of an enum from a GraphNode

      @ferdinand

      I wrote a whole a4 reply about your suggestions about maxon style, error handling and my opinions about the sparse documentation and the new api in general, but i deleted it because im just so baffled by how hard it is to just get a connected node, and then get a single enum value from a node that I literally stopped caring about code architecture and style. I have tried so many different thing now im at a loss at what is supposed to be the way to do this?

      All I want to do:
      1: Get the bumpmap that is connected to the standard material node. (com.redshift3d.redshift4c4d.nodes.core.standardmaterial.bump_input)
      2: Get the inputType enum value of the bumpmap node (com.redshift3d.redshift4c4d.nodes.core.bumpmap.inputType)

      I have tried so many different things im not even going to post code. I have read the sdk manual. I have rooted through the examples projects. I have read all the code comments in the headers. Never in my life have i spent so much effort doing something this conceptually simple. What am i supposed to do here?

      I just want this value

      posted in Cinema 4D SDK
      E
      ECHekman

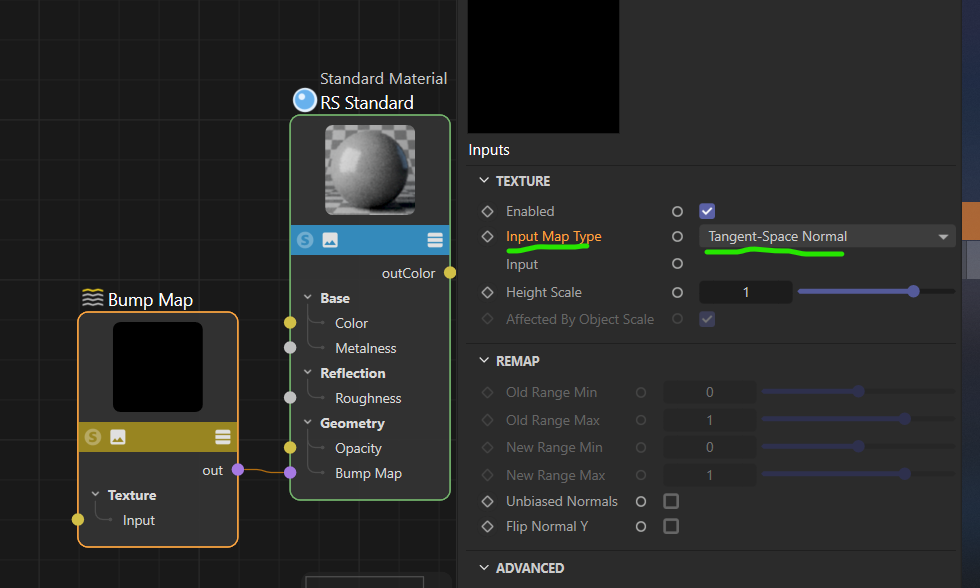

    • Getting an effective value of an enum from a GraphNode

      I am trying to wrap my mind around the GraphNode api, and starting to get it a bit (i think)
      However, im trying to retrieve the type of a RS Bump Map, however im having a bit of trouble.
      I can get the bump map node itself, but I cannot seem to get the effective value that is in its port.
      This is my latest attempt, it fails at typeNode.GetValue(maxon::EffectivePortValue,

      ifnoerr(auto & bumpRes = inputs.FindChild(maxon::Id("com.redshift3d.redshift4c4d.nodes.core.standardmaterial.bump_input")))
      {
          maxon::GraphNode bumpNode = getConnectedNode(bumpRes, maxon::NODE_KIND::NODE);

          auto assetId = bumpNode.GetValue(maxon::nodes::AssetId).GetValueOrDefault().GetValue();
          const maxon::Id& nodeId = assetId.Get<0>();

          if (nodeId == maxon::Id("com.redshift3d.redshift4c4d.nodes.core.bumpmap"))
          {
              ifnoerr(auto & typeNode = bumpNode.GetInputs().FindChild(maxon::Id("com.redshift3d.redshift4c4d.nodes.core.bumpmap.inputType")))
              {
                  maxon::ConstDataPtr inputData2 = typeNode.GetValue(maxon::EffectivePortValue, maxon::DataType::DefaultValue()) iferr_return;

                  auto type = inputData2.GetType();
                  auto typeId = type.GetId();

              }
          }
      }

      posted in Cinema 4D SDK c++ 2025
      E
      ECHekman
    • RE: Userarea keyboard focus issues in 2025.3

      Thank you Ferdinand. Ill try to remember to post bugs to the bug subforum.

      posted in Bugs
      E
      ECHekman
    • Userarea keyboard focus issues in 2025.3

      There seems to have been a change to userarea default behavior in 2025.3 - however i cannot find this in the release notes.
      Mouse clicks still trigger GeUserArea::InputEvent, however keyboard and scroll events no longer work with default settings.
      I found that when i explicitly set USERAREAFLAGS::HANDLEFOCUS in the AttachUserArea it will work like it did in previous versions. However USERAREAFLAGS settings are poorly documented and i cannot find what the settings do or if i need them (HANDLEFOCUS, TABSTOP, SYNCMESSAGE)

      posted in Bugs 2025 c++
      E
      ECHekman
    • RE: 2025.3.0 SDK Release

      Ok? will do

      posted in News & Information
      E
      ECHekman
    • RE: 2025.3.0 SDK Release

      We are experiencing an issue where keyboard and scrolling events no longer call the inputevent function of a GeUserArea. They seem to ignore the active window.
      It did work with older versions of 2025. Left, Center and Right mouse presses work normally.

      posted in News & Information
      E
      ECHekman
    • Getting debugbreak in atom.cpp

      I have created my own iCustomGUI, and it is fully functional except for that when I update the value i get a critical stop message and a debugbreak. However the data is actually correctly set and stored. So im not sure what is going on.

      atom.cpp(439): CRITICAL: Stop
      A breakpoint instruction (__debugbreak() statement or a similar call) was executed in Cinema 4D.exe.


      This is how the data is set in the Init() function of my ShaderData

      // In MyData::Init(GeListNode* node, Bool isCloneInit)
      BaseContainer ociodata;
      ociodata.SetString(SOME_STRING_ID, String("initial text"));
      ociodata.SetInt32(SOME_INT_ID,  19);
      base->SetParameter(c4dId, ociodata);


      Here is how i create the UI

      // in MyData::GetDDescription()
      BaseContainer bc = GetCustomDataTypeDefault(DA_CONTAINER);
      bc.SetInt32(DESC_CUSTOMGUI, CUSTOMGUI_OCIOCYCLE);
      bc.SetString(DESC_NAME, String(pinInfo->mStaticLabel));
      bc.SetBool(DESC_SCALEH, TRUE);
      description->SetParameter(IDCopy, bc, groupID);


      Here is how i send the update from the iCustomGUI class

      // in My_iCustomGui::Command()
      BaseContainer _data;
      _data.SetString(SOME_STRING_ID, String("some text"));
      _data.SetInt32(SOME_INT_ID,  14);

      BaseContainer m(BFM_ACTION);
      m.SetInt32(BFM_ACTION_ID, GetId());
      m.RemoveData(BFM_ACTION_VALUE);
      m.SetContainer(BFM_ACTION_VALUE, _data);
      SendParentMessage(m);


      I have the same setup with a different iCustomGUI and it works fine, but there is something about this specific case where it is doing this debug break and complaining about a critical stop. Could it be because it im using a basecontainer here in not a simple type like int/float/vector?

      posted in Cinema 4D SDK c++ 2025
      E
      ECHekman
    • RE: GeDialog ColorChooser Color + Alpha

      Thank you for your response that did the trick.

      // ... do more settings work, check the user data editor with the data type Color with Alpha and there the details for all the settings, or the docs for DR_COLORFIELD_...

      |I am not familiar with the "user data editor". I am interested in changing the settings because this is what it looks like now:

      I would like it to look like this - including the ability to fold it

      posted in Cinema 4D SDK
