#include <c4d_variationshaderdata.h>

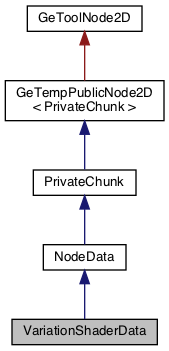

Inheritance diagram for VariationShaderData:

[legend]

Public Types
typedef NodeData	SUPER

Public Types inherited from NodeData
typedef PrivateChunk	SUPER

Public Member Functions
virtual Bool	IsInstanceOf (cineware::Int32 id) const

Public Member Functions inherited from NodeData
	NodeData ()

BaseList2D *	GetNode ()

void	SetNode (BaseList2D *ptr)

BaseTag *	GetTag (Int32 id)

BaseTag *	MakeTag (Int32 id)

Public Member Functions inherited from PrivateChunk
	PrivateChunk ()

Bool	ReadChunk (HyperFile *hf, Bool keepin=false, Bool noheader=false)

virtual Bool	IsListHead ()

virtual Int32	GetType () const

virtual Int32	GetInstanceType () const

Bool	ReadObject (HyperFile *hf, Bool readheader)

Bool	WriteObject (HyperFile *hf, Int32 type)

Bool	CopyTo (PrivateChunk dest, COPYFLAGS flags, AliasTrans trans)

virtual Bool	GetDParameter (const DescID &id, GeData &data)

virtual Bool	SetDParameter (const DescID &id, const GeData &data)

Bool	GetParameter (Int32 id, GeData &data)

Bool	SetParameter (Int32 id, const GeData &data)

Bool	GetParameter (const DescID &id, GeData &data)

Bool	SetParameter (const DescID &id, const GeData &data)

virtual Int32	GetChunkLevel ()

Public Member Functions inherited from GeTempPublicNode2D< PrivateChunk >
PrivateChunk *	GetNext () const

PrivateChunk *	GetPrev () const

void	InsertBefore (PrivateChunk *n)

void	InsertAfter (PrivateChunk *n)

void	Remove ()

Private Member Functions
virtual Bool	Init ()

virtual void	Free ()

Allocation/Free
static VariationShaderData *	Alloc ()

static void	Free (VariationShaderData *&v)

Read/Write
virtual Bool	Read (HyperFile *hf, Int32 id, Int32 level)

Bool	Write (HyperFile *hf)

Add / Remove textures
Bool	AddTextureLayer (TextureLayer layerData)

TextureLayer	GetTextureLayer (Int32 textureId)

Bool	RemoveTextureLayer (Int32 textureId)

Bool	RemoveAllTextures ()

Int32	GetTextureCount ()

Bool	GetActive (Int32 textureId)

Bool	SetActive (Int32 textureId, Bool active)

Float	GetPropability (Int32 textureId)

Bool	SetPropability (Int32 textureId, Float probability)

Bool	Distribute (DISTRIBUTION dis)

Additional Inherited Members
Protected Member Functions inherited from NodeData
virtual Bool	Execute ()

virtual Int32	GetDiskType () const

virtual Bool	CopyToX (PrivateChunk dst, COPYFLAGS flags, AliasTrans trans)

virtual Bool	TranslateDescID (GeListNode node, const DescID &id, DescID &res_id, GeListNode &res_at)

Protected Member Functions inherited from PrivateChunk
virtual Bool	HandleSubChunk (HyperFile *hf, Int32 id, Int32 level)

Detailed Description

Node data class for Cinema 4D's Variation shader.

Member Typedef Documentation

◆ SUPER

typedef NodeData SUPER

Member Function Documentation

◆ IsInstanceOf()

virtual Bool IsInstanceOf ( cineware::Int32 id ) const

virtual

Reimplemented from NodeData.

◆ Init()

virtual Bool Init ( )

privatevirtual

Called when an instance of a derived node data class needs to be initialized.

Returns: true if successful, otherwise false.

Reimplemented from NodeData.

◆ Free() [1/2]

virtual void Free ( )

privatevirtual

Reimplemented from NodeData.

◆ Alloc()

static VariationShaderData* Alloc ( )

static

Allocates a VariationShaderData. Destroy the allocated VariationShaderData with Free().

Returns: The allocated VariationShaderData, or nullptr if the allocation failed.

◆ Free() [2/2]

static void Free ( VariationShaderData *& v )

static

Destructs VariationShaderData allocated with Alloc().

Parameters

[in,out] v The VariationShaderData to destruct. If the pointer is nullptr nothing happens. The pointer is assigned nullptr afterwards.

◆ Read()

virtual Bool Read	(	HyperFile *	hf,
		Int32	id,
		Int32	level
	)

virtual

Reads the variation shader data from a hyper file.

Parameters

[in]	hf	The hyper file to read from. The caller owns the pointed hyper file.
[in]	id	The ID of the node to read.
[in]	level	The disklevel of the node to read.

Returns: true if successful, otherwise false.

Reimplemented from NodeData.

◆ Write()

Bool Write ( HyperFile * hf )

virtual

Writes the variation shader to a hyper file.

Parameters

[in] hf The hyper file to write to. The caller owns the pointed hyper file.

Reimplemented from PrivateChunk.

◆ AddTextureLayer()

Bool AddTextureLayer ( TextureLayer layerData )

Adds a new texture layer.

Note: A passed shader will be added automatically, a nullptr will just keep the link empty.

Parameters

[in] layerData The data to be used for the new texture layer.

Returns: true if the texture layer was successfully added, otherwise false.

◆ GetTextureLayer()

TextureLayer GetTextureLayer ( Int32 textureId )

Gets the data of the texture layer.

Parameters

[in] textureId The ID to get the data for.

Returns: The texture layer data.

◆ RemoveTextureLayer()

Bool RemoveTextureLayer ( Int32 textureId )

Removes a texture layer.

Note: If there is only one texture layer nothing will be removed.

Parameters

[in] textureId The ID of the texture layer to remove.

Returns: true if the texture layer was successfully removed, otherwise false.

◆ RemoveAllTextures()

Bool RemoveAllTextures ( )

Removes all texture layers from the shader list except the first one.

Returns: true if all texture layers were successfully removed, otherwise false.

◆ GetTextureCount()

Int32 GetTextureCount ( )

Returns the amount of textures the shader list contains.

Note: The minimum amount of textures is 1.

Returns: The number of textures the shader list contains.

◆ GetActive()

Bool GetActive ( Int32 textureId )

Returns the activation state of the texture layer.

Parameters

[in] textureId The ID of the layer to get the state for.

Returns: true if the texture layer is active, otherwise false.

◆ SetActive()

Bool SetActive	(	Int32	textureId,
		Bool	active
	)

Enables or disables a texture layer.

Parameters

[in]	textureId	The ID of the texture to set the state for.
[in]	active	true to enable or or false to disable the layer.

Returns: true if the state could be set, otherwise false.

◆ GetPropability()

Float GetPropability ( Int32 textureId )

Returns the probability of the texture layer.

Parameters

[in] textureId The ID of the layer to get the probability for.

Returns: The probability.

◆ SetPropability()

Bool SetPropability	(	Int32	textureId,
		Float	probability
	)

Sets the probability for the texture layer.

Parameters

[in]	textureId	The ID of the texture to set the probability for.
[in]	probability	The new probability value of the layer.

Returns: true if the probability could be set, otherwise false.

◆ Distribute()

Bool Distribute ( DISTRIBUTION dis )

Distributes the probability values for all textures in the shader list.

Note: For normalized distribution at least 2 textures are needed. Otherwise the single one value will not be changed.

Parameters

[in] dis The type of distribution: DISTRIBUTION

Returns: true if the distribution was successful, otherwise false.
