#include <c4d_splineobject.h>

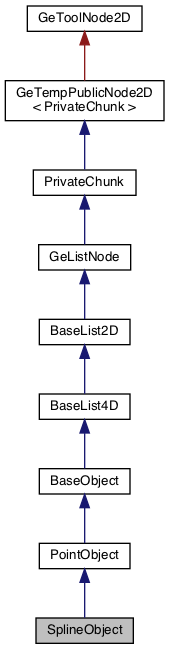

Inheritance diagram for SplineObject:

[legend]

Public Types
typedef PointObject	SUPER

Public Types inherited from PointObject
typedef BaseObject	SUPER

Public Types inherited from BaseObject
typedef BaseList4D	SUPER

Public Types inherited from BaseList4D
typedef BaseList2D	SUPER

Public Types inherited from BaseList2D
typedef GeListNode	SUPER

Public Types inherited from GeListNode
typedef PrivateChunk	SUPER

Public Member Functions
virtual Bool	IsInstanceOf (cineware::Int32 id) const

Public Member Functions inherited from PointObject
BaseSelect *	GetPointS ()

BaseSelect *	GetPointH ()

const Vector *	GetPointR ()

Vector *	GetPointW ()

Int32	GetPointCount ()

Bool	ResizeObject (Int32 pcnt)

Public Member Functions inherited from BaseObject
BaseObject *	GetNext ()

BaseObject *	GetPred ()

BaseObject *	GetUp ()

BaseObject *	GetDown ()

BaseObject *	GetDownLast ()

virtual BaseList2D *	GetClone (COPYFLAGS flags, AliasTrans *trans)

Vector	GetAbsPos () const

void	SetAbsPos (const Vector &v)

Vector	GetAbsScale () const

void	SetAbsScale (const Vector &v)

Vector	GetAbsRot () const

void	SetAbsRot (const Vector &v)

Vector	GetFrozenPos () const

void	SetFrozenPos (const Vector &v)

Vector	GetFrozenScale () const

void	SetFrozenScale (const Vector &v)

Vector	GetFrozenRot () const

void	SetFrozenRot (const Vector &v)

Vector	GetRelPos () const

void	SetRelPos (const Vector &v)

Vector	GetRelScale () const

void	SetRelScale (const Vector &v)

Vector	GetRelRot () const

void	SetRelRot (const Vector &v)

const Matrix &	GetMl () const

void	SetMl (const Matrix &m)

Matrix	GetFrozenMln () const

Matrix	GetRelMln () const

Matrix	GetRelMl () const

void	SetRelMl (const Matrix &m)

Matrix	GetMg ()

void	SetMg (const Matrix &m)

Matrix	GetMln () const

Matrix	GetMgn ()

Matrix	GetUpMg ()

void	CopyMatrixTo (BaseObject *dest)

void	SetRotationOrder (ROTATIONORDER order)

ROTATIONORDER	GetRotationOrder () const

void	SetQuaternionRotationMode (Bool active)

Bool	IsQuaternionRotationMode ()

Bool	SynchronizeVectorTrackKeys (Int32 vectorTrackID, BaseTime startRange=BaseTime(-108000, 1), BaseTime endRange=BaseTime(108000, 1))

Bool	FindBestEulerAngle (Int32 rotationTrackID, Bool bAdjustTangent, BaseTime startRange=BaseTime(-108000, 1), BaseTime endRange=BaseTime(108000, 1))

Int32	GetEditorMode ()

void	SetEditorMode (Int32 mode)

Int32	GetRenderMode ()

void	SetRenderMode (Int32 mode)

Bool	GetDeformMode ()

void	SetDeformMode (Bool mode)

BaseTag *	GetFirstTag ()

BaseTag *	GetTag (Int32 type, Int32 nr=0)

BaseTag *	MakeTag (Int32 type, BaseTag *pred=nullptr)

void	InsertTag (BaseTag tp, BaseTag pred=nullptr)

void	KillTag (Int32 type, Int32 nr=0)

BaseObject *	GetCache ()

BaseObject *	GetDeformCache ()

void	GetColorProperties (ObjectColorProperties *prop)

void	SetColorProperties (ObjectColorProperties *prop)

Bool	HasChanged ()

Public Member Functions inherited from BaseList4D
BaseList4D *	GetUp ()

BaseList4D *	GetDown ()

BaseList4D *	GetDownLast ()

void	InsertBefore (BaseList4D *bl)

void	InsertAfter (BaseList4D *bl)

void	InsertUnder (BaseList4D *bl)

void	InsertUnderLast (BaseList4D *bl)

virtual void	Remove ()

Public Member Functions inherited from BaseList2D
	BaseList2D ()

virtual	~BaseList2D ()

BaseList2D *	GetNext ()

BaseList2D *	GetPred ()

NodeData *	GetNodeData ()

void	SetNodeData (NodeData *data)

void	SetBit (Int32 mask)

Bool	GetBit (Int32 mask)

void	DelBit (Int32 mask)

void	ToggleBit (Int32 mask)

Int32	GetAllBits ()

void	SetAllBits (Int32 bits)

BaseContainer	GetData ()

BaseContainer *	GetDataInstance ()

BaseContainer &	GetDataInstanceRef ()

const String &	GetName ()

void	SetName (const String &new_name)

const GeMarker &	GetMarker () const

void	SetMarker (const GeMarker &m)

Bool	AddUniqueID (Int32 appid, const Char *const mem, Int bytes)

Bool	FindUniqueID (Int32 appid, const Char *&mem, Int &bytes) const

Int32	GetUniqueIDCount () const

Bool	GetUniqueIDIndex (Int32 idx, Int32 &id, const Char *&mem, Int &bytes) const

BaseShader *	GetFirstShader ()

Bool	InsertShader (BaseShader shader, BaseShader pred=nullptr)

Bool	InsertShaderLast (BaseShader *shader)

RootCTrack *	GetCTrackRoot ()

CTrack *	GetFirstCTrack ()

CTrack *	FindCTrack (const DescID &id)

Bool	AppendCTrack (CTrack *t)

void	InsertTrackSorted (CTrack *track)

LayerObject *	GetLayerObject ()

void	SetLayerObject (LayerObject *layer)

const LayerData *	GetLayerData (BaseDocument *doc, Bool rawdata=false)

Bool	SetLayerData (BaseDocument *doc, const LayerData &data)

DynamicDescription *	GetDynamicDescription ()

virtual Bool	IsBaseList ()

Bool	SetDescIDState (const DescID &id, DESCIDSTATE descidstate)

DESCIDSTATE	GetDescIDState (const DescID &id, Bool tolerant) const

RootPluginNode *	GetOverrideRoot ()

BaseOverride *	GetFirstOverride ()

virtual Bool	TranslateDescID (const DescID &id, DescID &res_id, GeListNode *&res_at)

Public Member Functions inherited from GeListNode
	GeListNode ()

	~GeListNode ()

virtual Bool	GetNBit (Int32 bit) const

virtual Bool	ChangeNBit (NBIT bit, NBITCONTROL bitmode)

BaseDocument *	GetDocument ()

virtual Int32	GetInfo ()

GeListNode *	GetPred ()

GeListNode *	GetNext ()

GeListNode *	GetUp ()

GeListNode *	GetDown ()

GeListNode *	GetDownLast ()

void	InsertBefore (GeListNode *op)

void	InsertAfter (GeListNode *op)

void	Remove ()

void	InsertUnder (GeListNode *op)

void	InsertUnderLast (GeListNode *op)

RootList2D *	GetListHead ()

Int32	GetNodeID (Int32 index=0) const

Public Member Functions inherited from PrivateChunk
	PrivateChunk ()

Bool	ReadChunk (HyperFile *hf, Bool keepin=false, Bool noheader=false)

virtual Bool	IsListHead ()

Bool	ReadObject (HyperFile *hf, Bool readheader)

Bool	WriteObject (HyperFile *hf, Int32 type)

Bool	CopyTo (PrivateChunk dest, COPYFLAGS flags, AliasTrans trans)

Bool	GetParameter (Int32 id, GeData &data)

Bool	SetParameter (Int32 id, const GeData &data)

Bool	GetParameter (const DescID &id, GeData &data)

Bool	SetParameter (const DescID &id, const GeData &data)

virtual Int32	GetChunkLevel ()

Public Member Functions inherited from GeTempPublicNode2D< PrivateChunk >
PrivateChunk *	GetNext () const

PrivateChunk *	GetPrev () const

void	InsertBefore (PrivateChunk *n)

void	InsertAfter (PrivateChunk *n)

void	Remove ()

Protected Member Functions
	SplineObject ()

Protected Member Functions inherited from PointObject
	PointObject ()

Protected Member Functions inherited from BaseObject
virtual Int32	GetInstanceType () const

	BaseObject ()

	BaseObject (Int32 id)

virtual	~BaseObject ()

Protected Member Functions inherited from BaseList4D
	BaseList4D ()

	~BaseList4D ()

Protected Member Functions inherited from BaseList2D
void	SetID (Int32 id)

Private Member Functions
virtual Int32	GetDiskType () const

virtual Bool	HandleSubChunk (HyperFile *hf, Int32 id, Int32 level)

virtual Bool	Write (HyperFile *hf)

Friends
class	BaseObject

Alloc/Free
static SplineObject *	Alloc (Int32 pcnt, SPLINETYPE type)

static void	Free (SplineObject *&bl)

Type
virtual Int32	GetType () const

Interpolation Type
Int32	GetInterpolationType ()

void	SetInterpolationType (Int32 i)

Spline Type
SPLINETYPE	GetSplineType ()

void	SetSplineType (SPLINETYPE t)

Closed
Bool	GetIsClosed ()

void	SetIsClosed (Bool b)

Resize
Bool	ResizeObject (Int32 pcnt, Int32 scnt)

Segment
const Segment *	GetSegmentR ()

Segment *	GetSegmentW ()

Int32	GetSegmentCount ()

Tangent
const Tangent *	GetTangentR ()

Tangent *	GetTangentW ()

Int32	GetTangentCount ()

Execute
virtual Bool	Execute ()

Additional Inherited Members
Static Public Member Functions inherited from BaseObject
static BaseObject *	Alloc (Int32 type)

static void	Free (BaseObject *&bl)

Protected Attributes inherited from BaseList2D
Int32	m_id

RootShader	mp_rootshader

RootShader	mp_rootshader_hidden

RootShader	root_shader_repository

Int32	l_bitfeld

RootCTrack	mp_rootctrack

RootPluginNode	root_override

NotifyList *	notify_events

DescIdStore *	keyframestore

DescIdStore *	propstore

BaseContainer	m_bc

NodeData *	m_data

Protected Attributes inherited from GeListNode
GeAliasGoal	m_xgoal

UInt32	m_bits [4]

RootList2D *	t_rootlist_parent

RootList2D *	m_children

BaseDocument *	parent_doc

void *	unknownData

Int	unknownDataSize

Int32	unknownDataLevel

Int32	pluginID

Detailed Description

Represents Cinema 4D's spline object.

Note: Has to be created with Alloc() and destroyed with Free().

Member Typedef Documentation

◆ SUPER

typedef PointObject SUPER

Constructor & Destructor Documentation

◆ SplineObject()

SplineObject ( )

protected

Member Function Documentation

◆ IsInstanceOf()

virtual Bool IsInstanceOf ( cineware::Int32 id ) const

virtual

Reimplemented from PointObject.

◆ GetDiskType()

virtual Int32 GetDiskType ( ) const

privatevirtual

Gets the unique disk type of the base list.

Note: Normally this is the same as GetType() but there are exceptions.

Returns: The disk type, for example Ocube.

Reimplemented from PointObject.

◆ HandleSubChunk()

virtual Bool HandleSubChunk	(	HyperFile *	hf,
		Int32	id,
		Int32	level
	)

privatevirtual

Private.

Reimplemented from BaseObject.

◆ Write()

virtual Bool Write ( HyperFile * hf )

privatevirtual

Private.

Reimplemented from BaseObject.

◆ Alloc()

static SplineObject* Alloc	(	Int32	pcnt,
		SPLINETYPE	type
	)

static

Allocates a spline object. Destroy the allocated spline object with Free().

Parameters

[in]	pcnt	The point count.
[in]	type	The spline type.

Returns: The allocated spline object, or nullptr if the allocation failed.

◆ Free()

static void Free ( SplineObject *& bl )

static

Destructs spline objects allocated with Alloc().

Parameters

[in,out] bl The spline object to destruct. If the pointer is nullptr nothing happens. The pointer is assigned nullptr afterwards.

◆ GetType()

virtual Int32 GetType ( ) const

virtual

Gets the object type for a SplineObject.

Note: Always returns Ospline.

Returns: The object type for a SplineObject i.e. Ospline.

Reimplemented from PointObject.

◆ GetInterpolationType()

Int32 GetInterpolationType ( )

Gets the spline interpolation type.

Returns: The spline interpolation type: SPLINEOBJECT_INTERPOLATION.

◆ SetInterpolationType()

void SetInterpolationType ( Int32 i )

Sets the spline interpolation type.

Parameters

[in] i The spline interpolation type to set: SPLINEOBJECT_INTERPOLATION.

◆ GetSplineType()

SPLINETYPE GetSplineType ( )

Gets the spline type.

Returns: The spline type.

◆ SetSplineType()

void SetSplineType ( SPLINETYPE t )

Sets the spline type.

Parameters

[in] t The spline type to set.

◆ GetIsClosed()

Bool GetIsClosed ( )

Checks if the spline is closed.

Returns: true if the spline is closed, otherwise false.

◆ SetIsClosed()

void SetIsClosed ( Bool b )

Sets if a spline is closed.

Parameters

[in] b true for closed splines, false for open splines.

◆ ResizeObject()

Bool ResizeObject	(	Int32	pcnt,
		Int32	scnt
	)

Changes the number of segments and points.

Parameters

[in]	pcnt	The new point count.
[in]	scnt	The new segment count.

Returns: true if successful, otherwise false.

◆ GetSegmentR()

const Segment* GetSegmentR ( )

Gets a pointer to the read-only segments buffer.

Returns: A pointer to the read-only segments buffer. The spline object owns the pointed buffer.

◆ GetSegmentW()

Segment* GetSegmentW ( )

Gets a pointer to the writable segments buffer.

Returns: A pointer to the writable segments buffer. The spline object owns the pointed buffer.

◆ GetSegmentCount()

Int32 GetSegmentCount ( )

Gets the number of segments.

Returns: The number of segments.

◆ GetTangentR()

const Tangent* GetTangentR ( )

Gets a pointer to the read-only tangents buffer.

Returns: A pointer to the read-only tangents buffer. The spline object owns the pointed buffer.

◆ GetTangentW()

Tangent* GetTangentW ( )

Gets a pointer to the writable tangents buffer.

Returns: A pointer to the writable tangents buffer. The spline object owns the pointed buffer.

◆ GetTangentCount()

Int32 GetTangentCount ( )

Gets the number of tangents.

Returns: The number of tangents.

◆ Execute()

virtual Bool Execute ( )

virtual

Overload this for self defined spline objects.

Returns: true if the spline object type is supported by the external application, otherwise false.

Reimplemented from BaseObject.

Friends And Related Function Documentation

◆ BaseObject

friend class BaseObject

friend

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Friends

Alloc/Free

Type

Interpolation Type

Spline Type

Closed

Resize

Segment

Tangent

Execute

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ SUPER

Constructor & Destructor Documentation

◆ SplineObject()

Member Function Documentation

◆ IsInstanceOf()

◆ GetDiskType()

◆ HandleSubChunk()

◆ Write()

◆ Alloc()

◆ Free()

◆ GetType()

◆ GetInterpolationType()

◆ SetInterpolationType()

◆ GetSplineType()

◆ SetSplineType()

◆ GetIsClosed()

◆ SetIsClosed()

◆ ResizeObject()

◆ GetSegmentR()

◆ GetSegmentW()

◆ GetSegmentCount()

◆ GetTangentR()

◆ GetTangentW()

◆ GetTangentCount()

◆ Execute()

Friends And Related Function Documentation

◆ BaseObject
