#include <c4d_polygonobject.h>

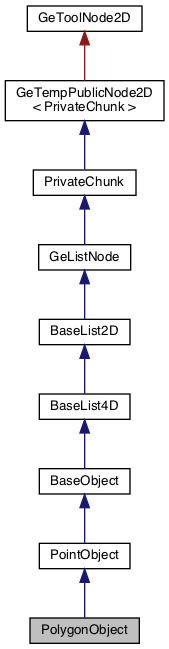

Inheritance diagram for PolygonObject:

[legend]

Public Types
typedef PointObject	SUPER

Public Types inherited from PointObject
typedef BaseObject	SUPER

Public Types inherited from BaseObject
typedef BaseList4D	SUPER

Public Types inherited from BaseList4D
typedef BaseList2D	SUPER

Public Types inherited from BaseList2D
typedef GeListNode	SUPER

Public Types inherited from GeListNode
typedef PrivateChunk	SUPER

Public Member Functions
virtual Bool	IsInstanceOf (cineware::Int32 id) const

Public Member Functions inherited from PointObject
BaseSelect *	GetPointS ()

BaseSelect *	GetPointH ()

const Vector *	GetPointR ()

Vector *	GetPointW ()

Int32	GetPointCount ()

Bool	ResizeObject (Int32 pcnt)

Public Member Functions inherited from BaseObject
BaseObject *	GetNext ()

BaseObject *	GetPred ()

BaseObject *	GetUp ()

BaseObject *	GetDown ()

BaseObject *	GetDownLast ()

virtual BaseList2D *	GetClone (COPYFLAGS flags, AliasTrans *trans)

Vector	GetAbsPos () const

void	SetAbsPos (const Vector &v)

Vector	GetAbsScale () const

void	SetAbsScale (const Vector &v)

Vector	GetAbsRot () const

void	SetAbsRot (const Vector &v)

Vector	GetFrozenPos () const

void	SetFrozenPos (const Vector &v)

Vector	GetFrozenScale () const

void	SetFrozenScale (const Vector &v)

Vector	GetFrozenRot () const

void	SetFrozenRot (const Vector &v)

Vector	GetRelPos () const

void	SetRelPos (const Vector &v)

Vector	GetRelScale () const

void	SetRelScale (const Vector &v)

Vector	GetRelRot () const

void	SetRelRot (const Vector &v)

const Matrix &	GetMl () const

void	SetMl (const Matrix &m)

Matrix	GetFrozenMln () const

Matrix	GetRelMln () const

Matrix	GetRelMl () const

void	SetRelMl (const Matrix &m)

Matrix	GetMg ()

void	SetMg (const Matrix &m)

Matrix	GetMln () const

Matrix	GetMgn ()

Matrix	GetUpMg ()

void	CopyMatrixTo (BaseObject *dest)

void	SetRotationOrder (ROTATIONORDER order)

ROTATIONORDER	GetRotationOrder () const

void	SetQuaternionRotationMode (Bool active)

Bool	IsQuaternionRotationMode ()

Bool	SynchronizeVectorTrackKeys (Int32 vectorTrackID, BaseTime startRange=BaseTime(-108000, 1), BaseTime endRange=BaseTime(108000, 1))

Bool	FindBestEulerAngle (Int32 rotationTrackID, Bool bAdjustTangent, BaseTime startRange=BaseTime(-108000, 1), BaseTime endRange=BaseTime(108000, 1))

Int32	GetEditorMode ()

void	SetEditorMode (Int32 mode)

Int32	GetRenderMode ()

void	SetRenderMode (Int32 mode)

Bool	GetDeformMode ()

void	SetDeformMode (Bool mode)

BaseTag *	GetFirstTag ()

BaseTag *	GetTag (Int32 type, Int32 nr=0)

BaseTag *	MakeTag (Int32 type, BaseTag *pred=nullptr)

void	InsertTag (BaseTag tp, BaseTag pred=nullptr)

void	KillTag (Int32 type, Int32 nr=0)

BaseObject *	GetCache ()

BaseObject *	GetDeformCache ()

void	GetColorProperties (ObjectColorProperties *prop)

void	SetColorProperties (ObjectColorProperties *prop)

virtual Bool	Execute ()

Bool	HasChanged ()

Public Member Functions inherited from BaseList4D
BaseList4D *	GetUp ()

BaseList4D *	GetDown ()

BaseList4D *	GetDownLast ()

void	InsertBefore (BaseList4D *bl)

void	InsertAfter (BaseList4D *bl)

void	InsertUnder (BaseList4D *bl)

void	InsertUnderLast (BaseList4D *bl)

virtual void	Remove ()

Public Member Functions inherited from BaseList2D
	BaseList2D ()

virtual	~BaseList2D ()

BaseList2D *	GetNext ()

BaseList2D *	GetPred ()

NodeData *	GetNodeData ()

void	SetNodeData (NodeData *data)

void	SetBit (Int32 mask)

Bool	GetBit (Int32 mask)

void	DelBit (Int32 mask)

void	ToggleBit (Int32 mask)

Int32	GetAllBits ()

void	SetAllBits (Int32 bits)

BaseContainer	GetData ()

BaseContainer *	GetDataInstance ()

BaseContainer &	GetDataInstanceRef ()

const String &	GetName ()

void	SetName (const String &new_name)

const GeMarker &	GetMarker () const

void	SetMarker (const GeMarker &m)

Bool	AddUniqueID (Int32 appid, const Char *const mem, Int bytes)

Bool	FindUniqueID (Int32 appid, const Char *&mem, Int &bytes) const

Int32	GetUniqueIDCount () const

Bool	GetUniqueIDIndex (Int32 idx, Int32 &id, const Char *&mem, Int &bytes) const

BaseShader *	GetFirstShader ()

Bool	InsertShader (BaseShader shader, BaseShader pred=nullptr)

Bool	InsertShaderLast (BaseShader *shader)

RootCTrack *	GetCTrackRoot ()

CTrack *	GetFirstCTrack ()

CTrack *	FindCTrack (const DescID &id)

Bool	AppendCTrack (CTrack *t)

void	InsertTrackSorted (CTrack *track)

LayerObject *	GetLayerObject ()

void	SetLayerObject (LayerObject *layer)

const LayerData *	GetLayerData (BaseDocument *doc, Bool rawdata=false)

Bool	SetLayerData (BaseDocument *doc, const LayerData &data)

DynamicDescription *	GetDynamicDescription ()

virtual Bool	IsBaseList ()

Bool	SetDescIDState (const DescID &id, DESCIDSTATE descidstate)

DESCIDSTATE	GetDescIDState (const DescID &id, Bool tolerant) const

RootPluginNode *	GetOverrideRoot ()

BaseOverride *	GetFirstOverride ()

virtual Bool	TranslateDescID (const DescID &id, DescID &res_id, GeListNode *&res_at)

Public Member Functions inherited from GeListNode
	GeListNode ()

	~GeListNode ()

virtual Bool	GetNBit (Int32 bit) const

virtual Bool	ChangeNBit (NBIT bit, NBITCONTROL bitmode)

BaseDocument *	GetDocument ()

virtual Int32	GetInfo ()

GeListNode *	GetPred ()

GeListNode *	GetNext ()

GeListNode *	GetUp ()

GeListNode *	GetDown ()

GeListNode *	GetDownLast ()

void	InsertBefore (GeListNode *op)

void	InsertAfter (GeListNode *op)

void	Remove ()

void	InsertUnder (GeListNode *op)

void	InsertUnderLast (GeListNode *op)

RootList2D *	GetListHead ()

Int32	GetNodeID (Int32 index=0) const

Public Member Functions inherited from PrivateChunk
	PrivateChunk ()

Bool	ReadChunk (HyperFile *hf, Bool keepin=false, Bool noheader=false)

virtual Bool	IsListHead ()

Bool	ReadObject (HyperFile *hf, Bool readheader)

Bool	WriteObject (HyperFile *hf, Int32 type)

Bool	CopyTo (PrivateChunk dest, COPYFLAGS flags, AliasTrans trans)

Bool	GetParameter (Int32 id, GeData &data)

Bool	SetParameter (Int32 id, const GeData &data)

Bool	GetParameter (const DescID &id, GeData &data)

Bool	SetParameter (const DescID &id, const GeData &data)

virtual Int32	GetChunkLevel ()

Public Member Functions inherited from GeTempPublicNode2D< PrivateChunk >
PrivateChunk *	GetNext () const

PrivateChunk *	GetPrev () const

void	InsertBefore (PrivateChunk *n)

void	InsertAfter (PrivateChunk *n)

void	Remove ()

Protected Member Functions
	PolygonObject ()

Protected Member Functions inherited from PointObject
	PointObject ()

Protected Member Functions inherited from BaseObject
virtual Bool	HandleSubChunk (HyperFile *hf, Int32 id, Int32 level)

virtual Bool	Write (HyperFile *hf)

virtual Int32	GetInstanceType () const

	BaseObject ()

	BaseObject (Int32 id)

virtual	~BaseObject ()

Protected Member Functions inherited from BaseList4D
	BaseList4D ()

	~BaseList4D ()

Protected Member Functions inherited from BaseList2D
void	SetID (Int32 id)

Private Member Functions
virtual Int32	GetDiskType () const

Friends
class	BaseObject

Alloc/Free
static PolygonObject *	Alloc (Int32 pcnt, Int32 vcnt)

static void	Free (PolygonObject *&bl)

Type
virtual Int32	GetType () const

Polygon Data
BaseSelect *	GetPolygonS ()

BaseSelect *	GetPolygonH ()

BaseSelect *	GetEdgeS ()

BaseSelect *	GetEdgeH ()

BaseSelect *	GetPhongBreak ()

const CPolygon *	GetPolygonR ()

CPolygon *	GetPolygonW ()

Int32	GetPolygonCount ()

Resize
Bool	ResizeObject (Int32 pcnt, Int32 vcnt)

Bool	ResizeObject (Int32 pcnt, Int32 vcnt, Int32 ncnt)

N-gon
Int32	GetNgonCount ()

NgonBase *	GetNgonBase ()

Miscellaneous
Vector32 *	CreatePhongNormals ()

BaseTag *	MakeUVWTag (const String &name, const TextureTag *generateFrom=nullptr)

Additional Inherited Members
Static Public Member Functions inherited from BaseObject
static BaseObject *	Alloc (Int32 type)

static void	Free (BaseObject *&bl)

Protected Attributes inherited from BaseList2D
Int32	m_id

RootShader	mp_rootshader

RootShader	mp_rootshader_hidden

RootShader	root_shader_repository

Int32	l_bitfeld

RootCTrack	mp_rootctrack

RootPluginNode	root_override

NotifyList *	notify_events

DescIdStore *	keyframestore

DescIdStore *	propstore

BaseContainer	m_bc

NodeData *	m_data

Protected Attributes inherited from GeListNode
GeAliasGoal	m_xgoal

UInt32	m_bits [4]

RootList2D *	t_rootlist_parent

RootList2D *	m_children

BaseDocument *	parent_doc

void *	unknownData

Int	unknownDataSize

Int32	unknownDataLevel

Int32	pluginID

Detailed Description

Represents Cinema 4D's polygon object.

Note: Has to be created with Alloc() and destroyed with Free().

Member Typedef Documentation

◆ SUPER

typedef PointObject SUPER

Constructor & Destructor Documentation

◆ PolygonObject()

PolygonObject ( )

protected

Member Function Documentation

◆ IsInstanceOf()

virtual Bool IsInstanceOf ( cineware::Int32 id ) const

virtual

Reimplemented from PointObject.

◆ GetDiskType()

virtual Int32 GetDiskType ( ) const

privatevirtual

Gets the unique disk type of the base list.

Note: Normally this is the same as GetType() but there are exceptions.

Returns: The disk type, for example Ocube.

Reimplemented from PointObject.

◆ Alloc()

static PolygonObject* Alloc	(	Int32	pcnt,
		Int32	vcnt
	)

static

Allocates a polygon object. Destroy the allocated polygon object with Free().

Parameters

[in]	pcnt	The point count.
[in]	vcnt	The polygon count.

Returns: The allocated polygon object, or nullptr if the allocation failed.

◆ Free()

static void Free ( PolygonObject *& bl )

static

Destructs polygon objects allocated with Alloc().

Parameters

[in,out] bl The polygon object to destruct. If the pointer is nullptr nothing happens. The pointer is assigned nullptr afterwards.

◆ GetType()

virtual Int32 GetType ( ) const

virtual

Gets the object type for a PolygonObject.

Note: Always returns Opolygon.

Returns: The object type for a PolygonObject i.e. Opolygon.

Reimplemented from PointObject.

◆ GetPolygonS()

BaseSelect* GetPolygonS ( )

Gets the selected polygons (visible ones only).

Returns: The selection of visible polygons. The polygon object owns the pointed base select.

◆ GetPolygonH()

BaseSelect* GetPolygonH ( )

Gets the hidden polygons.

Note: These are only hidden within the editor.

Returns: The selection of hidden polygons. The polygon object owns the pointed base select.

◆ GetEdgeS()

BaseSelect* GetEdgeS ( )

Gets the selected edges.
Edges are indexed by 4 * polygon + edge where polygon is the polygon index and edge is the edge index between 0 and 3.

Returns: The selection of visible edges. The polygon object owns the pointed base select.

◆ GetEdgeH()

BaseSelect* GetEdgeH ( )

Gets the hidden edges.
Edges are indexed by 4 * polygon + edge where polygon is the polygon index and edge is the edge index between 0 and 3.

Returns: The selection of hidden edges. The polygon object owns the pointed base select.

◆ GetPhongBreak()

BaseSelect* GetPhongBreak ( )

Gets the phong break edges.
Edges are indexed by 4 * polygon + edge where polygon is the polygon index and edge is the edge index between 0 and 3.

Returns: The selection of phong break edges. The polygon object owns the pointed base select.

◆ GetPolygonR()

const CPolygon* GetPolygonR ( )

Gets a pointer to the read-only buffer of polygons.

Returns: A pointer to the read-only buffer of polygons. The polygon object owns the pointed buffer.

◆ GetPolygonW()

CPolygon* GetPolygonW ( )

Gets a pointer to the writable array of polygons.

Returns: A pointer to the writable array of polygons. The polygon object owns the pointed buffer.

◆ GetPolygonCount()

Int32 GetPolygonCount ( )

Gets the number of polygons.

Returns: The number of polygons.

◆ ResizeObject() [1/2]

Bool ResizeObject	(	Int32	pcnt,
		Int32	vcnt
	)

Changes the number of points and polygons.

Parameters

[in]	pcnt	The new number of points.
[in]	vcnt	The new number of polygons.

Returns: true if successful, otherwise false.

◆ ResizeObject() [2/2]

Bool ResizeObject	(	Int32	pcnt,
		Int32	vcnt,
		Int32	ncnt
	)

Changes the number of points, polygons and N-gons.

Parameters

[in]	pcnt	The new number of points.
[in]	vcnt	The new number of polygons.
[in]	ncnt	The new number of N-gons.

Returns: true if successful, otherwise false.

◆ GetNgonCount()

Int32 GetNgonCount ( )

Gets the number of N-gons in the polygon object, i.e. the number of polygons with more than 4 points.

Returns: The number of N-gons in the polygon object.

◆ GetNgonBase()

NgonBase* GetNgonBase ( )

Gets the NgonBase instance for the polygon object.

Returns: The N-gon base. The polygon object owns the pointed N-gon base.

◆ CreatePhongNormals()

Vector32* CreatePhongNormals ( )

Gets a buffer with the stored phong normals for the polygon object.
Buffer contains 4*GetPolygonCount() vectors, one for each point of each face (including the unused fourth point of a triangle). The buffer has to be freed afterwards with DeleteMem().

Note: This method is only valid if the object has a phong tag.

Returns: A pointer to the buffer with phong normals.

◆ MakeUVWTag()

BaseTag* MakeUVWTag	(	const String &	name,
		const TextureTag *	generateFrom = `nullptr`
	)

Creates a UVW tag for the object.

Parameters

[in]	name	The name for the new tag.
[in]	generateFrom	A pointer to a texture tag to be used to generate or copy the UVW data from or nullptr. Note: TEXTURETAG_PROJECTION_CAMERAMAP and TEXTURETAG_PROJECTION_FRONTAL are not supported.

Returns: The UVW tag, or nullptr if an error occurred. Cineware SDK owns the pointed tag.

Friends And Related Function Documentation

◆ BaseObject

friend class BaseObject

friend

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Friends

Alloc/Free

Type

Polygon Data

Resize

N-gon

Miscellaneous

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ SUPER

Constructor & Destructor Documentation

◆ PolygonObject()

Member Function Documentation

◆ IsInstanceOf()

◆ GetDiskType()

◆ Alloc()

◆ Free()

◆ GetType()

◆ GetPolygonS()

◆ GetPolygonH()

◆ GetEdgeS()

◆ GetEdgeH()

◆ GetPhongBreak()

◆ GetPolygonR()

◆ GetPolygonW()

◆ GetPolygonCount()

◆ ResizeObject() [1/2]

◆ ResizeObject() [2/2]

◆ GetNgonCount()

◆ GetNgonBase()

◆ CreatePhongNormals()

◆ MakeUVWTag()

Friends And Related Function Documentation

◆ BaseObject
