DocumentPref Class Reference

#include <c4d_documentpref.h>

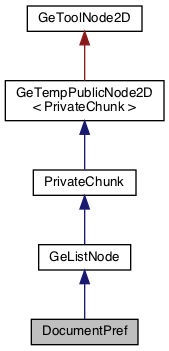

Inheritance diagram for DocumentPref:

Public Member Functions
	DocumentPref ()
virtual Bool	Write (HyperFile *hf)
virtual Bool	Read (HyperFile *hf, Int32 id, Int32 level)
Float	GetLOD ()
Bool	GetRenderLod ()
Int32	GetFps ()
BaseTime	GetMinTime ()
BaseTime	GetMaxTime ()
BaseTime	GetLoopMinTime ()
BaseTime	GetLoopMaxTime ()
void	SetLOD (Float lod, BaseDocument *doc)
void	SetRenderLod (Bool lod, BaseDocument *doc)
void	SetFps (Int32 newfps, BaseDocument *doc)
void	SetMinTime (const BaseTime &new_min, BaseDocument *doc)
void	SetMaxTime (const BaseTime &new_max, BaseDocument *doc)
void	SetLoopMinTime (const BaseTime &new_min, BaseDocument *doc)
void	SetLoopMaxTime (const BaseTime &new_max, BaseDocument *doc)
Public Member Functions inherited from GeListNode
virtual Bool	IsInstanceOf (cineware::Int32 id) const
	GeListNode ()
	~GeListNode ()
virtual Bool	HandleSubChunk (HyperFile *hf, Int32 id, Int32 level)
virtual Bool	IsBaseList ()
virtual Bool	GetNBit (Int32 bit) const
virtual Bool	ChangeNBit (NBIT bit, NBITCONTROL bitmode)
BaseDocument *	GetDocument ()
virtual Int32	GetInfo ()
virtual Int32	GetDiskType () const
GeListNode *	GetPred ()
GeListNode *	GetNext ()
GeListNode *	GetUp ()
GeListNode *	GetDown ()
GeListNode *	GetDownLast ()
void	InsertBefore (GeListNode *op)
void	InsertAfter (GeListNode *op)
void	Remove ()
void	InsertUnder (GeListNode *op)
void	InsertUnderLast (GeListNode *op)
RootList2D *	GetListHead ()
Int32	GetNodeID (Int32 index=0) const
Public Member Functions inherited from PrivateChunk
	PrivateChunk ()
Bool	ReadChunk (HyperFile *hf, Bool keepin=false, Bool noheader=false)
virtual Bool	IsListHead ()
virtual Int32	GetType () const
virtual Int32	GetInstanceType () const
Bool	ReadObject (HyperFile *hf, Bool readheader)
Bool	WriteObject (HyperFile *hf, Int32 type)
Bool	CopyTo (PrivateChunk *dest, COPYFLAGS flags, AliasTrans *trans)
virtual Bool	GetDParameter (const DescID &id, GeData &data)
virtual Bool	SetDParameter (const DescID &id, const GeData &data)
Bool	GetParameter (Int32 id, GeData &data)
Bool	SetParameter (Int32 id, const GeData &data)
Bool	GetParameter (const DescID &id, GeData &data)
Bool	SetParameter (const DescID &id, const GeData &data)
virtual Int32	GetChunkLevel ()
Public Member Functions inherited from GeTempPublicNode2D< PrivateChunk >
PrivateChunk *	GetNext () const
PrivateChunk *	GetPrev () const
void	InsertBefore (PrivateChunk *n)
void	InsertAfter (PrivateChunk *n)
void	Remove ()

Private Attributes
Float	d_lod
Int32	d_fps
BaseTime	d_min
BaseTime	d_max
BaseTime	d_loop_min
BaseTime	d_loop_max
Bool	d_renderlod
Bool	use_animation
Bool	use_expressions
Bool	use_generators
Bool	use_deformers

Friends
class	BaseDocument

Additional Inherited Members
Public Types inherited from GeListNode
typedef PrivateChunk	SUPER
Protected Member Functions inherited from GeListNode
virtual Bool	CopyToX (PrivateChunk *dest, COPYFLAGS flags, AliasTrans *trans)
virtual GeListNode *	GetClone (COPYFLAGS flags, AliasTrans *trans)
virtual Bool	TranslateDescID (const DescID &id, DescID &res_id, GeListNode *&res_at)
Protected Attributes inherited from GeListNode
GeAliasGoal	m_xgoal
UInt32	m_bits [4]
RootList2D *	t_rootlist_parent
RootList2D *	m_children
BaseDocument *	parent_doc
void *	unknownData
Int	unknownDataSize
Int32	unknownDataLevel
Int32	pluginID

Detailed Description

Access document preferences.

Constructor & Destructor Documentation

DocumentPref()

DocumentPref

(

)

Default constructor.

Member Function Documentation

Write()

virtual Bool Write ( HyperFile *  hf )

virtual

Private.

Reimplemented from GeListNode.

Read()

virtual Bool Read ( HyperFile *  hf, Int32  id, Int32  level  )

virtual

Private.

GetLOD()

Float GetLOD

(

)

Gets the Level Of Detail.

Returns

The Level Of Detail. The default LOD values are:

• Low = 0.25
• Medium = 0.5
• High = 1.0

GetRenderLod()

Bool GetRenderLod

(

)

Checks if the Level Of Detail for rendering should be used in the editor.

Returns

true if using the render LOD, otherwise false.

GetFps()

Int32 GetFps

(

)

Gets the number of Frames Per Second.

Returns

The number of FPS.

GetMinTime()

BaseTime GetMinTime

(

)

Gets the start time.

See also

BaseTime for conversion of FPS or other time units. GetFps()

Returns

The minimum time of the document.

GetMaxTime()

BaseTime GetMaxTime

(

)

Gets the end time.

See also

BaseTime for conversion of FPS or other time units. GetFps()

Returns

The maximum time of the document.

GetLoopMinTime()

BaseTime GetLoopMinTime

(

)

Gets the time of the left boundary for the preview range (loop range).

See also

BaseTime for conversion of FPS or other time units. GetFps()

Returns

The minimum time of the document's loop.

GetLoopMaxTime()

BaseTime GetLoopMaxTime

(

)

Gets the time of the right boundary for the preview range (loop range).

See also

BaseTime for conversion of FPS or other time units. GetFps()

Returns

The maximum time of the document's loop.

SetLOD()

void SetLOD	(	Float	lod,
		BaseDocument *	doc
	)

Sets the Level Of Detail.

Parameters

[in]	lod	The Level Of Detail. The default LOD values are: Low = 0.25 Medium = 0.5 High = 1.0
[in]	doc	The document.

SetRenderLod()

void SetRenderLod	(	Bool	lod,
		BaseDocument *	doc
	)

Sets if the Level Of Detail for rendering should be used in the editor.

Parameters

[in]	lod	true if the render LOD should be used, otherwise false.
[in]	doc	The document.

SetFps()

void SetFps	(	Int32	newfps,
		BaseDocument *	doc
	)

Sets the number of Frames Per Second.

Parameters

[in]	newfps	The number of FPS.
[in]	doc	The document.

SetMinTime()

void SetMinTime	(	const BaseTime &	new_min,
		BaseDocument *	doc
	)

Sets the start time.

See also

BaseTime for conversion of FPS or other time units. GetFps()

Parameters

[in]	new_min	The minimum time.
[in]	doc	The document.

SetMaxTime()

void SetMaxTime	(	const BaseTime &	new_max,
		BaseDocument *	doc
	)

Sets the end time.

See also

BaseTime for conversion of FPS or other time units. GetFps()

Parameters

[in]	new_max	The maximum time.
[in]	doc	The document.

SetLoopMinTime()

void SetLoopMinTime	(	const BaseTime &	new_min,
		BaseDocument *	doc
	)

Sets the time of the left boundary for the preview range (loop range).

See also

BaseTime for conversion of FPS or other time units. GetFps()

Parameters

[in]	new_min	The minimum time of the document's loop.
[in]	doc	The document.

SetLoopMaxTime()

void SetLoopMaxTime	(	const BaseTime &	new_max,
		BaseDocument *	doc
	)

Sets the time of the right boundary for the preview range (loop range).

See also

BaseTime for conversion of FPS or other time units. GetFps()

Parameters

[in]	new_max	The maximum time of the document's loop.
[in]	doc	The document.

Friends And Related Function Documentation

BaseDocument

friend class BaseDocument

friend

Member Data Documentation

d_lod

Float d_lod

private

d_fps

Int32 d_fps

private

d_min

BaseTime d_min

private

d_max

BaseTime d_max

private

d_loop_min

BaseTime d_loop_min

private

d_loop_max

BaseTime d_loop_max

private

d_renderlod

Bool d_renderlod

private

use_animation

Bool use_animation

private

use_expressions

Bool use_expressions

private

use_generators

Bool use_generators

private

use_deformers

Bool use_deformers

private
