#include <c4d_basedraw.h>

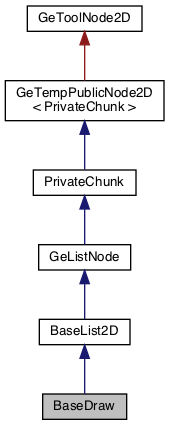

Inheritance diagram for BaseDraw:

[legend]

Public Types
typedef BaseList2D	SUPER

Public Types inherited from BaseList2D
typedef GeListNode	SUPER

Public Types inherited from GeListNode
typedef PrivateChunk	SUPER

Public Member Functions
virtual Bool	IsInstanceOf (cineware::Int32 id) const

Public Member Functions inherited from BaseList2D
	BaseList2D ()

virtual	~BaseList2D ()

BaseList2D *	GetNext ()

BaseList2D *	GetPred ()

NodeData *	GetNodeData ()

void	SetNodeData (NodeData *data)

void	SetBit (Int32 mask)

Bool	GetBit (Int32 mask)

void	DelBit (Int32 mask)

void	ToggleBit (Int32 mask)

Int32	GetAllBits ()

void	SetAllBits (Int32 bits)

BaseContainer	GetData ()

BaseContainer *	GetDataInstance ()

BaseContainer &	GetDataInstanceRef ()

const String &	GetName ()

void	SetName (const String &new_name)

const GeMarker &	GetMarker () const

void	SetMarker (const GeMarker &m)

Bool	AddUniqueID (Int32 appid, const Char *const mem, Int bytes)

Bool	FindUniqueID (Int32 appid, const Char *&mem, Int &bytes) const

Int32	GetUniqueIDCount () const

Bool	GetUniqueIDIndex (Int32 idx, Int32 &id, const Char *&mem, Int &bytes) const

BaseShader *	GetFirstShader ()

Bool	InsertShader (BaseShader shader, BaseShader pred=nullptr)

Bool	InsertShaderLast (BaseShader *shader)

RootCTrack *	GetCTrackRoot ()

CTrack *	GetFirstCTrack ()

CTrack *	FindCTrack (const DescID &id)

Bool	AppendCTrack (CTrack *t)

void	InsertTrackSorted (CTrack *track)

virtual Int32	GetType () const

virtual Int32	GetDiskType () const

LayerObject *	GetLayerObject ()

void	SetLayerObject (LayerObject *layer)

const LayerData *	GetLayerData (BaseDocument *doc, Bool rawdata=false)

Bool	SetLayerData (BaseDocument *doc, const LayerData &data)

DynamicDescription *	GetDynamicDescription ()

virtual Bool	IsBaseList ()

virtual void	Remove ()

Bool	SetDescIDState (const DescID &id, DESCIDSTATE descidstate)

DESCIDSTATE	GetDescIDState (const DescID &id, Bool tolerant) const

RootPluginNode *	GetOverrideRoot ()

BaseOverride *	GetFirstOverride ()

virtual Bool	TranslateDescID (const DescID &id, DescID &res_id, GeListNode *&res_at)

Public Member Functions inherited from GeListNode
	GeListNode ()

	~GeListNode ()

virtual Bool	GetNBit (Int32 bit) const

virtual Bool	ChangeNBit (NBIT bit, NBITCONTROL bitmode)

BaseDocument *	GetDocument ()

virtual Int32	GetInfo ()

GeListNode *	GetPred ()

GeListNode *	GetNext ()

GeListNode *	GetUp ()

GeListNode *	GetDown ()

GeListNode *	GetDownLast ()

void	InsertBefore (GeListNode *op)

void	InsertAfter (GeListNode *op)

void	Remove ()

void	InsertUnder (GeListNode *op)

void	InsertUnderLast (GeListNode *op)

RootList2D *	GetListHead ()

Int32	GetNodeID (Int32 index=0) const

Public Member Functions inherited from PrivateChunk
	PrivateChunk ()

Bool	ReadChunk (HyperFile *hf, Bool keepin=false, Bool noheader=false)

virtual Bool	IsListHead ()

Bool	ReadObject (HyperFile *hf, Bool readheader)

Bool	WriteObject (HyperFile *hf, Int32 type)

Bool	CopyTo (PrivateChunk dest, COPYFLAGS flags, AliasTrans trans)

Bool	GetParameter (Int32 id, GeData &data)

Bool	SetParameter (Int32 id, const GeData &data)

Bool	GetParameter (const DescID &id, GeData &data)

Bool	SetParameter (const DescID &id, const GeData &data)

virtual Int32	GetChunkLevel ()

Public Member Functions inherited from GeTempPublicNode2D< PrivateChunk >
PrivateChunk *	GetNext () const

PrivateChunk *	GetPrev () const

void	InsertBefore (PrivateChunk *n)

void	InsertAfter (PrivateChunk *n)

void	Remove ()

Private Attributes
BaseDrawPref	_bpref

BaseLink	s_link

BaseObject *	ed_camera

Friends
class	BaseDocument

class	ViewPanel

Constructor/Destructor
	BaseDraw ()

	~BaseDraw ()

Alloc/Free
static BaseDraw *	Alloc ()

static void	Free (BaseDraw *&bd)

Get/Set Parameter
GeData	GetParameterData (Int32 id, const GeData &data=GeData())

virtual Bool	GetParameter (const DescID &id, GeData &t_data)

virtual Bool	SetParameter (const DescID &id, const GeData &t_data)

Clone/Copy
virtual BaseList2D *	GetClone (COPYFLAGS flags, AliasTrans *trans)

Editor Camera
BaseObject *	GetSceneCamera (const BaseDocument *doc)

void	SetSceneCamera (BaseObject *op, Bool animate=false)

BaseObject *	GetEditorCamera ()

Private
virtual Bool	CopyToX (PrivateChunk dst, COPYFLAGS flags, AliasTrans trn)

const BaseDrawPref &	GetBaseDrawPrefs ()

virtual Bool	HandleSubChunk (HyperFile *hf, Int32 id, Int32 level)

virtual Bool	Write (HyperFile *hf)

Additional Inherited Members
Protected Member Functions inherited from BaseList2D
void	SetID (Int32 id)

virtual Bool	GetDParameter (const DescID &id, GeData &data)

virtual Bool	SetDParameter (const DescID &id, const GeData &data)

virtual Int32	GetInstanceType () const

Protected Attributes inherited from BaseList2D
Int32	m_id

RootShader	mp_rootshader

RootShader	mp_rootshader_hidden

RootShader	root_shader_repository

Int32	l_bitfeld

RootCTrack	mp_rootctrack

RootPluginNode	root_override

NotifyList *	notify_events

DescIdStore *	keyframestore

DescIdStore *	propstore

BaseContainer	m_bc

NodeData *	m_data

Protected Attributes inherited from GeListNode
GeAliasGoal	m_xgoal

UInt32	m_bits [4]

RootList2D *	t_rootlist_parent

RootList2D *	m_children

BaseDocument *	parent_doc

void *	unknownData

Int	unknownDataSize

Int32	unknownDataLevel

Int32	pluginID

Detailed Description

Represents a Cinema 4D view window that can be drawn into.

Note: Has to be created with Alloc() and destroyed with Free().

Member Typedef Documentation

◆ SUPER

typedef BaseList2D SUPER

Constructor & Destructor Documentation

◆ BaseDraw()

BaseDraw ( )

Default constructor.

◆ ~BaseDraw()

~BaseDraw ( )

Default destructor.

Member Function Documentation

◆ IsInstanceOf()

virtual Bool IsInstanceOf ( cineware::Int32 id ) const

virtual

Reimplemented from BaseList2D.

◆ Alloc()

static BaseDraw* Alloc ( )

static

Allocates a base draw. Destroy the allocated base draw with Free().

Returns: The allocated base draw, or nullptr if the allocation failed.

◆ Free()

static void Free ( BaseDraw *& bd )

static

Destructs base draws allocated with Alloc().

Parameters

[in,out] bd The base draw to destruct. If the pointer is nullptr nothing happens. The pointer is assigned nullptr afterwards.

◆ GetParameterData()

GeData GetParameterData	(	Int32	id,
		const GeData &	data = `GeData()`
	)

Convenience method to get base draw parameters:

GeData BaseDraw::GetParameterData(Int32 id)
{
  GeData t_data;
  BaseList2D::GetParameter(DescLevel(id), t_data, 0);
  return t_data;
}

Parameters

[in]	id	A parameter ID. See dbasedraw.h description file.
[in]	data	Optionally assign the parameter data.

Returns: The parameter data for id.

◆ GetParameter()

virtual Bool GetParameter	(	const DescID &	id,
		GeData &	t_data
	)

virtual

Gets a base draw parameter.

Parameters

[in]	id	The ID of the parameter.
[in]	t_data	Assigned the parameter data.

Returns: true if the parameter was retrieved, otherwise false.

◆ SetParameter()

virtual Bool SetParameter	(	const DescID &	id,
		const GeData &	t_data
	)

virtual

Sets a base draw parameter.

Parameters

[in]	id	The ID of the parameter.
[in]	t_data	The parameter data to set.

Returns: true if the parameter was set, otherwise false.

◆ GetClone()

virtual BaseList2D* GetClone	(	COPYFLAGS	flags,
		AliasTrans *	trans
	)

virtual

Gets a clone/copy of the base draw.

Parameters

[in]	flags	Flags for the clone.
[in]	trans	An alias translator for the operation. Can be nullptr. The caller owns the pointed alias translator.

Returns: The cloned base draw. The caller owns the pointed base draw.

Reimplemented from BaseList2D.

◆ GetSceneCamera()

BaseObject* GetSceneCamera ( const BaseDocument * doc )

Gets the current scene camera from the passed document.

Since: 17.008

Parameters

[in] doc The document to get the scene camera from. The caller owns the pointed document.

Returns: The scene camera, or nullptr if no scene camera is used.

◆ SetSceneCamera()

void SetSceneCamera	(	BaseObject *	op,
		Bool	animate = `false`
	)

Sets a new scene camera. If op is nullptr, the editor camera is used.

Since: 17.008

Parameters

[in]	op	The new camera.
[in]	animate	Private.

◆ GetEditorCamera()

BaseObject* GetEditorCamera ( )

Gets the editor camera.

Returns: The editor camera. Cineware SDK owns the pointed camera.

◆ CopyToX()

virtual Bool CopyToX	(	PrivateChunk *	dst,
		COPYFLAGS	flags,
		AliasTrans *	trn
	)

virtual

Private.

Reimplemented from BaseList2D.

◆ GetBaseDrawPrefs()

const BaseDrawPref& GetBaseDrawPrefs ( )

Private.

◆ HandleSubChunk()

virtual Bool HandleSubChunk	(	HyperFile *	hf,
		Int32	id,
		Int32	level
	)

virtual

Private.

Reimplemented from BaseList2D.

◆ Write()

virtual Bool Write ( HyperFile * hf )

virtual

Private.

Reimplemented from BaseList2D.

Friends And Related Function Documentation

◆ BaseDocument

friend class BaseDocument

friend

◆ ViewPanel

friend class ViewPanel

friend

Member Data Documentation

◆ _bpref

BaseDrawPref _bpref

private

◆ s_link

BaseLink s_link

private

◆ ed_camera

BaseObject* ed_camera

private
