#include <c4d_painter.h>

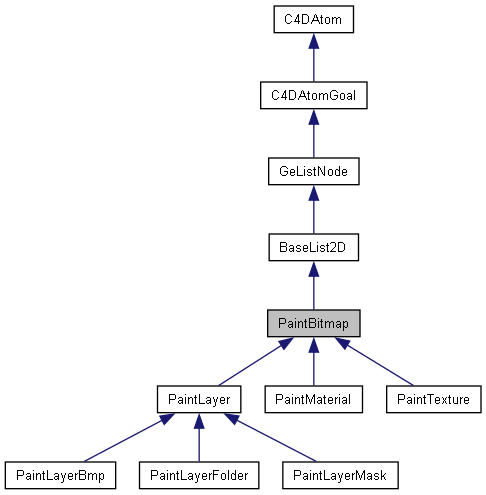

Inheritance diagram for PaintBitmap:

[legend]

Detailed Description

The base class of all paint classes. Can be a texture, material, layer or mask.

Public Member Functions
Int32	GetBw () const

Int32	GetBh () const

PaintTexture *	GetPaintTexture ()

const PaintTexture *	GetPaintTexture () const

PaintBitmap *	GetParent ()

const PaintBitmap *	GetParent () const

PaintLayer *	GetLayerDownFirst ()

const PaintLayer *	GetLayerDownFirst () const

PaintLayer *	GetLayerDownLast ()

const PaintLayer *	GetLayerDownLast () const

PaintLayer *	GetAlphaFirst ()

const PaintLayer *	GetAlphaFirst () const

PaintLayer *	GetAlphaLast ()

const PaintLayer *	GetAlphaLast () const

PaintLayerBmp *	AddAlphaChannel (Int32 bitdepth, PaintLayer *prev=nullptr, Bool undo=true, Bool activate=true)

Bool	AskApplyAlphaMask () const

void	ApplyAlphaMask (Int32 x, Int32 y, Int32 cnt, PIX *bits, COLORMODE mode, Bool inverted, Int32 flags) const

PaintLayerMask *	FindSelectionMask (PaintBitmap *toplevel, Int32 bitdepth)

COLORMODE	GetColorMode () const

UInt32	GetDirty (DIRTYFLAGS flags) const

void	UpdateRefresh (Int32 xmin, Int32 ymin, Int32 xmax, Int32 ymax, UInt32 flags)

void	UpdateRefreshAll (UInt32 flags, Bool reallyall)

Bool	ReCalc (BaseThread thread, Int32 x1, Int32 y1, Int32 x2, Int32 y2, BaseBitmap bmp, Int32 flags, UInt32 showbit)

Public Member Functions inherited from BaseList2D
void	SetBit (Int32 mask)

Bool	GetBit (Int32 mask) const

void	DelBit (Int32 mask)

void	ToggleBit (Int32 mask)

Int32	GetAllBits () const

void	SetAllBits (Int32 bits)

void	SetBitEx (Int32 mask, Int32 flags)

const Char *	GetViewportRenderId (VIEWPORT_RENDER_ID typeId) const

BaseList2D *	GetNext ()

const BaseList2D *	GetNext () const

BaseList2D *	GetPred ()

const BaseList2D *	GetPred () const

BaseContainer	GetData () const

void	SetData (const BaseContainer &bc, Bool add=true)

const BaseContainer &	GetDataInstanceRef () const

BaseContainer &	GetDataInstanceRef ()

const BaseContainer *	GetDataInstance () const

BaseContainer *	GetDataInstance ()

String	GetName () const

void	SetName (const maxon::String &name, Bool setDirty=true)

String	GetBubbleHelp ()

Bool	TransferGoal (BaseList2D *dst, Bool undolink)

Bool	TransferMarker (BaseList2D *dst) const

Bool	CopyDynamicDescriptionFrom (const BaseList2D *src)

Bool	Scale (Float scale)

Bool	Edit ()

void	GetIcon (IconData *dat)

GeListHead *	GetNLARoot (Bool create)

BaseList2D *	AnimationLayerRemap (BaseObject **layer=nullptr)

String	GetTypeName () const

const BaseList2D *	GetMain () const

BaseList2D *	GetMain ()

void	InsertTrackSorted (CTrack *track)

Bool	AddEventNotification (BaseList2D bl, NOTIFY_EVENT eventid, NOTIFY_EVENT_FLAG flags, const BaseContainer data)

Bool	RemoveEventNotification (const BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	FindEventNotification (const BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	SetDescIDState (const DescID &id, DESCIDSTATE descidstate)

DESCIDSTATE	GetDescIDState (const DescID &id, Bool tolerant) const

GeListHead *	GetOverrideRoot (Bool create)

BaseOverride *	GetFirstOverride ()

GeListHead *	GetShaderRepositoryRoot (Bool create)

GeListHead *	GetHiddenShaderRoot (Bool create)

maxon::NimbusForwardRef	GetNimbusRef (const maxon::Id &spaceId) const

maxon::Result< maxon::NimbusForwardRef >	PrivateGetOrCreateNimbusRef (const maxon::Id &spaceId)

void	RemoveNimbusRef (const maxon::Id &spaceId)

maxon::Result< maxon::HashMap< maxon::Id, maxon::NimbusForwardRef > >	GetAllNimbusRefs () const

Bool	IsNodeBased () const

maxon::Result< Bool >	GetAccessedObjects (METHOD_ID method, AccessedObjectsCallback &access) const

maxon::Result< Bool >	GetAccessedObjectsRec (ACCESSED_OBJECTS_MASK read, ACCESSED_OBJECTS_MASK write, METHOD_ID method, Bool withSiblings, Bool withChildren, AccessedObjectsCallback &access) const

maxon::Result< Bool >	GetAccessedObjectsOfHierarchy (ACCESSED_OBJECTS_MASK read, ACCESSED_OBJECTS_MASK write, METHOD_ID method, AccessedObjectsCallback &access) const

maxon::Result< Bool >	GetAccessedObjectsOfChildren (ACCESSED_OBJECTS_MASK read, ACCESSED_OBJECTS_MASK write, METHOD_ID method, AccessedObjectsCallback &access) const

maxon::Result< Bool >	GetAccessedObjectsOfFirstChildHierarchy (ACCESSED_OBJECTS_MASK read, ACCESSED_OBJECTS_MASK write, METHOD_ID method, AccessedObjectsCallback &access) const

maxon::Result< maxon::GenericData >	GroupChanges ()

void	GetMarkerStampEx (UInt32 l1, UInt32 l2)

const GeMarker &	GetMarker () const

void	SetMarker (const GeMarker &m)

Bool	AddUniqueID (Int32 appid, const Char *const mem, Int bytes)

Bool	FindUniqueID (Int32 appid, const Char *&mem, Int &bytes) const

Int32	GetUniqueIDCount () const

Bool	GetUniqueIDIndex (Int32 idx, Int32 &id, const Char *&mem, Int &bytes) const

Bool	SetAnimatedParameter (const CTrack *track, const DescID &id, const GeData &t_data1, const GeData &t_data2, Float mix, DESCFLAGS_SET flags)

Bool	GetAnimatedParameter (const DescID &id, GeData &t_data1, GeData &t_data2, Float &mix, DESCFLAGS_GET flags) const

BaseShader *	GetFirstShader () const

void	InsertShader (BaseShader shader, BaseShader pred=nullptr)

void	ClearKeyframeSelection ()

Bool	FindKeyframeSelection (const DescID &id)

Bool	SetKeyframeSelection (const DescID &id, Bool selection)

Bool	KeyframeSelectionContent ()

LayerObject *	GetLayerObject (const BaseDocument *doc)

const LayerObject *	GetLayerObject (const BaseDocument *doc) const

Bool	SetLayerObject (const LayerObject *layer)

const LayerData *	GetLayerData (const BaseDocument *doc, Bool rawdata=false) const

Bool	SetLayerData (BaseDocument *doc, const LayerData &data)

GeListHead *	GetCTrackRoot (Bool create)

const GeListHead *	GetCTrackRoot () const

const CTrack *	GetFirstCTrack () const

CTrack *	GetFirstCTrack ()

const CTrack *	FindCTrack (const DescID &id) const

CTrack *	FindCTrack (const DescID &id)

Public Member Functions inherited from GeListNode
GeListNode *	GetNext ()

const GeListNode *	GetNext () const

GeListNode *	GetPred ()

const GeListNode *	GetPred () const

GeListNode *	GetDown ()

const GeListNode *	GetDown () const

GeListNode *	GetUp ()

const GeListNode *	GetUp () const

GeListNode *	GetDownLast ()

const GeListNode *	GetDownLast () const

void	InsertBefore (GeListNode *bl)

void	InsertAfter (GeListNode *bl)

void	InsertUnder (GeListNode *bl)

void	InsertUnderLast (GeListNode *bl)

void	Remove ()

void	FlushChilds ()

void	MoveChildrenTo (GeListNode *dest)

GeListHead *	GetListHead ()

const GeListHead *	GetListHead () const

Int32	GetNodeID (Int32 index=0) const

template<typename CAST >
const CAST *	GetNodeData (Int32 index=0) const

template<typename CAST >
CAST *	GetNodeData (Int32 index=0)

void	SetCustomData (GeListNode *node)

GeListNode *	GetCustomData ()

const GeListNode *	GetCustomData () const

const BaseDocument *	GetDocument () const

BaseDocument *	GetDocument ()

maxon::Result< Bool >	GetBranchInfo (const maxon::ValueReceiver< const BranchInfo & > &info, GETBRANCHINFO flags) const

Bool	IsDocumentRelated () const

Int32	GetInfo () const

Bool	GetNBit (NBIT bit) const

UInt32	GetNBitMask (Int32 index) const

Bool	ChangeNBit (NBIT bit, NBITCONTROL bitmode)

Public Member Functions inherited from C4DAtomGoal
Bool	HasLinks () const

Public Member Functions inherited from C4DAtom
Int32	GetType () const

Int32	GetRealType () const

Int32	GetDiskType () const

Bool	IsInstanceOf (Int32 id) const

Int32	GetClassification () const

Bool	Message (Int32 type, void *data=nullptr)

Bool	MultiMessage (MULTIMSG_ROUTE flags, Int32 type, void *data)

C4DAtom *	GetClone (COPYFLAGS flags, AliasTrans *trn) const

Bool	CopyTo (C4DAtom dst, COPYFLAGS flags, AliasTrans trn) const

Bool	Read (HyperFile *hf, Int32 id, Int32 level)

Bool	Write (HyperFile *hf) const

Bool	ReadObject (HyperFile *hf, Bool readheader)

Bool	WriteObject (HyperFile *hf) const

Bool	GetDescription (Description *description, DESCFLAGS_DESC flags) const

Bool	GetParameter (const DescID &id, GeData &t_data, DESCFLAGS_GET flags) const

Bool	SetParameter (const DescID &id, const GeData &t_data, DESCFLAGS_SET flags)

DynamicDescription *	GetDynamicDescriptionWritable ()

const DynamicDescription *	GetDynamicDescription () const

Bool	CopyDynamicDescriptionFrom (const BaseList2D *src)

Bool	GetEnabling (const DescID &id, const GeData &t_data, DESCFLAGS_ENABLE flags, const BaseContainer *itemdesc) const

Bool	TranslateDescID (const DescID &id, DescID &res_id, C4DAtom *&res_at)

UInt32	GetDirty (DIRTYFLAGS flags) const

void	SetDirty (DIRTYFLAGS flags)

UInt32	GetHDirty (HDIRTYFLAGS mask) const

void	SetHDirty (HDIRTYFLAGS mask)

Static Public Member Functions
static Bool	ConvertBits (Int32 cnt, const PIX src, Int32 srcinc, COLORMODE srcmode, PIX dst, Int32 dstinc, COLORMODE dstmode, Int32 dithery, Int32 ditherx)

Static Public Member Functions inherited from BaseList2D
static BaseList2D *	Alloc (Int32 type)

static void	Free (BaseList2D *&bl)

Private Member Functions
	PaintBitmap ()

	~PaintBitmap ()

Additional Inherited Members
Static Public Attributes inherited from BaseList2D
static const Int32	SETBIT_FLAG_NODIRTY

static const Int32	SETBIT_FLAG_REMOVE

Constructor & Destructor Documentation

◆ PaintBitmap()

PaintBitmap ( )

private

◆ ~PaintBitmap()

~PaintBitmap ( )

private

Member Function Documentation

◆ GetBw()

Int32 GetBw ( ) const

Retrieves the width of the paint bitmap.

Returns: The width of the paint bitmap.

◆ GetBh()

Int32 GetBh ( ) const

Retrieves the height of the paint bitmap.

Returns: The height of the paint bitmap.

◆ GetPaintTexture() [1/2]

PaintTexture* GetPaintTexture ( )

Retrieves the paint texture if possible.

Returns: The paint texture, otherwise nullptr.

◆ GetPaintTexture() [2/2]

const PaintTexture* GetPaintTexture ( ) const

◆ GetParent() [1/2]

PaintBitmap* GetParent ( )

Retrieves the parent if available. This can be a layer or a texture for instance.

Returns: The parent, otherwise nullptr.

◆ GetParent() [2/2]

const PaintBitmap* GetParent ( ) const

◆ GetLayerDownFirst() [1/2]

PaintLayer* GetLayerDownFirst ( )

Retrieves the first child layer.

Returns: The first child layer, or nullptr if there is none.

◆ GetLayerDownFirst() [2/2]

const PaintLayer* GetLayerDownFirst ( ) const

◆ GetLayerDownLast() [1/2]

PaintLayer* GetLayerDownLast ( )

Retrieves the last child layer.

Returns: The last child layer, or nullptr if there is none.

◆ GetLayerDownLast() [2/2]

const PaintLayer* GetLayerDownLast ( ) const

◆ GetAlphaFirst() [1/2]

PaintLayer* GetAlphaFirst ( )

Retrieves the first alpha channel layer.

Returns: The first alpha channel layer, or nullptr if there is none.

◆ GetAlphaFirst() [2/2]

const PaintLayer* GetAlphaFirst ( ) const

◆ GetAlphaLast() [1/2]

PaintLayer* GetAlphaLast ( )

Retrieves the last alpha channel layer.

Returns: The last alpha channel layer, or nullptr if there is none.

◆ GetAlphaLast() [2/2]

const PaintLayer* GetAlphaLast ( ) const

◆ AddAlphaChannel()

PaintLayerBmp* AddAlphaChannel	(	Int32	bitdepth,
		PaintLayer *	prev = `nullptr`,
		Bool	undo = `true`,
		Bool	activate = `true`
	)

Adds an alpha channel to the layer.

Parameters

[in]	bitdepth	The bit depth of the alpha channel: BITDEPTH
[in]	prev	An optional point to insert the alpha channel.
[in]	undo	true to create an undo on the undo stack, otherwise false.
[in]	activate	true to activate alpha channel.

Returns: The added alpha channel, or nullptr if it failed.

◆ AskApplyAlphaMask()

Bool AskApplyAlphaMask ( ) const

Checks if the alpha mask can be applied.

Returns: true if the alpha mask can be applied, otherwise false.

◆ ApplyAlphaMask()

void ApplyAlphaMask	(	Int32	x,
		Int32	y,
		Int32	cnt,
		PIX *	bits,
		COLORMODE	mode,
		Bool	inverted,
		Int32	flags
	)		const

Applies the alpha mask.

Parameters

[in]	x	The X coordinate of the starting point.
[in]	y	The Y coordinate of the starting point.
[in]	cnt	The length of the masked line.
[in]	bits	The masked pixels.
[in]	mode	The color mode (only with alpha channel): COLORMODE
[in]	inverted	true to apply an inverted alpha mask.
[in]	flags	The flags: GETPIXEL

◆ FindSelectionMask()

PaintLayerMask* FindSelectionMask	(	PaintBitmap **	toplevel,
		Int32 *	bitdepth
	)

Finds the selection mask.

Parameters

[in]	toplevel	The root level. PaintMaterial if the selection is in a material, otherwise PaintTexture.
[in]	bitdepth	The bit depth of the selection mask.

Returns: The selection mask, or nullptr if there is none.

◆ GetColorMode()

COLORMODE GetColorMode ( ) const

Retrieves the color mode of the paint bitmap.

Returns: The color mode: COLORMODE

◆ GetDirty()

UInt32 GetDirty ( DIRTYFLAGS flags ) const

Retrieves the dirty count.

Parameters

[in] flags Reserved, must be DIRTYFLAGS::NONE.

Returns: The dirty count, incremented when the paint bitmap changes.

◆ UpdateRefresh()

void UpdateRefresh	(	Int32	xmin,
		Int32	ymin,
		Int32	xmax,
		Int32	ymax,
		UInt32	flags
	)

Refreshes an area of the paint bitmap. Must be done after modifying it.

Parameters

[in]	xmin	The left coordinate of the refreshed area.
[in]	ymin	The top coordinate of the refreshed area.
[in]	xmax	The right coordinate of the refreshed area.
[in]	ymax	The bottom coordinate of the refreshed area.
[in]	flags	The flags: UPDATE

◆ UpdateRefreshAll()

void UpdateRefreshAll	(	UInt32	flags,
		Bool	reallyall
	)

Refreshes the complete paint bitmap. Has to be done after modifying it.

Parameters

[in]	flags	The flags: UPDATE
[in]	reallyall	If true an infinite bounding box is used for the refresh. If false the bounding box of the layer is used, this is much faster.

◆ ReCalc()

Bool ReCalc	(	BaseThread *	thread,
		Int32	x1,
		Int32	y1,
		Int32	x2,
		Int32	y2,
		BaseBitmap *	bmp,
		Int32	flags,
		UInt32	showbit
	)

Creates a flattened bitmap of the paint bitmap.

Parameters

[in]	thread	Pass the thread to be used for the calculation.
[in]	x1	The left coordinate of the calculation window.
[in]	y1	The top coordinate of the calculation window.
[in]	x2	The right coordinate of the calculation window.
[in]	y2	The bottom coordinate of the calculation window.
[out]	bmp	The flattened bitmap.
[in]	flags	The flags: RECALC
[in]	showbit	Must be set to 0.

Returns: true if successful, otherwise false.

◆ ConvertBits()

static Bool ConvertBits	(	Int32	cnt,
		const PIX *	src,
		Int32	srcinc,
		COLORMODE	srcmode,
		PIX *	dst,
		Int32	dstinc,
		COLORMODE	dstmode,
		Int32	dithery,
		Int32	ditherx
	)

static

Converts pixel data.

Parameters

[in]	cnt	The number of pixels to convert.
[in]	src	The pixel source buffer.
[in]	srcinc	The source step size.
[in]	srcmode	The source color mode: COLORMODE
[out]	dst	The pixel destination buffer.
[in]	dstinc	The destination step size.
[in]	dstmode	The destination color mode: COLORMODE
[in]	dithery	If NOTOK no dithering is applied, otherwise pass the Y pixel coordinate.
[in]	ditherx	If NOTOK no dithering is applied, otherwise pass the X pixel coordinate.

Returns: true if successful, otherwise false.

Detailed Description

Public Member Functions

Static Public Member Functions

Private Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ PaintBitmap()

◆ ~PaintBitmap()

Member Function Documentation

◆ GetBw()

◆ GetBh()

◆ GetPaintTexture() [1/2]

◆ GetPaintTexture() [2/2]

◆ GetParent() [1/2]

◆ GetParent() [2/2]

◆ GetLayerDownFirst() [1/2]

◆ GetLayerDownFirst() [2/2]

◆ GetLayerDownLast() [1/2]

◆ GetLayerDownLast() [2/2]

◆ GetAlphaFirst() [1/2]

◆ GetAlphaFirst() [2/2]

◆ GetAlphaLast() [1/2]

◆ GetAlphaLast() [2/2]

◆ AddAlphaChannel()

◆ AskApplyAlphaMask()

◆ ApplyAlphaMask()

◆ FindSelectionMask()

◆ GetColorMode()

◆ GetDirty()

◆ UpdateRefresh()

◆ UpdateRefreshAll()

◆ ReCalc()

◆ ConvertBits()
