#include <c4d_basetag.h>

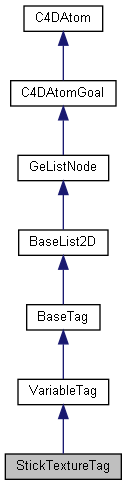

Inheritance diagram for StickTextureTag:

[legend]

Detailed Description

Represents the Stick Texture Tag.
Stores points for the stick to texture.
Contains an array that stores a number of point vectors. These represent the stored state of the object.
When no data is stored or when the data has been invalidated by a point count change, GetDataCount() returns 0.

Note: Has to be created with Alloc() and destroyed with Free(). Use AutoAlloc to automate the allocation and destruction based on scope.

Private Member Functions
	StickTextureTag ()

	~StickTextureTag ()

Alloc/Free
static StickTextureTag *	Alloc (Int32 type)

static void	Free (StickTextureTag *&bl)

Get Data
const Vector *	GetDataAddressR (void) const

Vector *	GetDataAddressW (void)

Record
Bool	Record (BaseObject *op, Bool always)

Additional Inherited Members
Public Member Functions inherited from VariableTag
Int32	GetDataCount (void) const

Int32	GetDataSize (void) const

maxon::UniqueHash	GetDataHash (void) const

const void *	GetLowlevelDataAddressR (void) const

void *	GetLowlevelDataAddressW (void)

Public Member Functions inherited from BaseTag
Bool	Draw (BaseObject op, BaseDraw bd, BaseDrawHelp *bh)

BaseTag *	GetNext (void)

BaseTag *	GetPred (void)

BaseObject *	GetObject (void)

BaseTag *	GetOrigin ()

Public Member Functions inherited from BaseList2D
void	SetBit (Int32 mask)

Bool	GetBit (Int32 mask) const

void	DelBit (Int32 mask)

void	ToggleBit (Int32 mask)

Int32	GetAllBits () const

void	SetAllBits (Int32 bits)

void	SetBitEx (Int32 mask, Int32 flags)

const Char *	GetViewportRenderId (VIEWPORT_RENDER_ID typeId) const

BaseList2D *	GetNext ()

BaseList2D *	GetPred ()

BaseContainer	GetData ()

void	SetData (const BaseContainer &bc, Bool add=true)

const BaseContainer *	GetDataInstance () const

BaseContainer *	GetDataInstance ()

const BaseContainer &	GetDataInstanceRef () const

BaseContainer &	GetDataInstanceRef ()

String	GetName () const

void	SetName (const maxon::String &name)

String	GetBubbleHelp ()

Bool	TransferGoal (BaseList2D *dst, Bool undolink)

Bool	TransferMarker (BaseList2D *dst) const

Bool	Scale (Float scale)

Bool	Edit ()

void	GetIcon (IconData *dat)

GeListHead *	GetNLARoot ()

BaseList2D *	AnimationLayerRemap (BaseObject **layer=nullptr)

String	GetTypeName ()

BaseList2D *	GetMain () const

void	InsertTrackSorted (CTrack *track)

Bool	AddEventNotification (BaseList2D bl, NOTIFY_EVENT eventid, NOTIFY_EVENT_FLAG flags, const BaseContainer data)

Bool	RemoveEventNotification (BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	FindEventNotification (BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	SetDescIDState (const DescID &id, DESCIDSTATE descidstate)

DESCIDSTATE	GetDescIDState (const DescID &id, Bool tolerant) const

GeListHead *	GetOverrideRoot ()

BaseOverride *	GetFirstOverride ()

GeListHead *	GetShaderRepositoryRoot ()

GeListHead *	GetHiddenShaderRoot ()

maxon::NimbusForwardRef	GetNimbusRef (const maxon::Id &spaceId) const

maxon::Result< maxon::NimbusForwardRef >	PrivateGetOrCreateNimbusRef (const maxon::Id &spaceId)

void	RemoveNimbusRef (const maxon::Id &spaceId)

maxon::Result< maxon::HashMap< maxon::Id, maxon::NimbusForwardRef > >	GetAllNimbusRefs () const

Bool	IsNodeBased () const

void	GetMarkerStampEx (UInt32 l1, UInt32 l2)

const GeMarker &	GetMarker () const

void	SetMarker (const GeMarker &m)

Bool	AddUniqueID (Int32 appid, const Char *const mem, Int bytes)

Bool	FindUniqueID (Int32 appid, const Char *&mem, Int &bytes) const

Int32	GetUniqueIDCount () const

Bool	GetUniqueIDIndex (Int32 idx, Int32 &id, const Char *&mem, Int &bytes) const

Bool	SetAnimatedParameter (CTrack *track, const DescID &id, const GeData &t_data1, const GeData &t_data2, Float mix, DESCFLAGS_SET flags)

Bool	GetAnimatedParameter (const DescID &id, GeData &t_data1, GeData &t_data2, Float &mix, DESCFLAGS_GET flags)

BaseShader *	GetFirstShader () const

void	InsertShader (BaseShader shader, BaseShader pred=nullptr)

void	ClearKeyframeSelection ()

Bool	FindKeyframeSelection (const DescID &id)

Bool	SetKeyframeSelection (const DescID &id, Bool selection)

Bool	KeyframeSelectionContent ()

LayerObject *	GetLayerObject (BaseDocument *doc)

Bool	SetLayerObject (LayerObject *layer)

const LayerData *	GetLayerData (BaseDocument *doc, Bool rawdata=false)

Bool	SetLayerData (BaseDocument *doc, const LayerData &data)

GeListHead *	GetCTrackRoot ()

CTrack *	GetFirstCTrack ()

CTrack *	FindCTrack (const DescID &id)

Public Member Functions inherited from GeListNode
GeListNode *	GetNext ()

GeListNode *	GetPred ()

GeListNode *	GetDown ()

GeListNode *	GetUp ()

GeListNode *	GetDownLast ()

void	InsertBefore (GeListNode *bl)

void	InsertAfter (GeListNode *bl)

void	InsertUnder (GeListNode *bl)

void	InsertUnderLast (GeListNode *bl)

void	Remove ()

GeListHead *	GetListHead ()

Int32	GetNodeID (Int32 index=0) const

template<typename CAST >
const CAST *	GetNodeData (Int32 index=0) const

template<typename CAST >
CAST *	GetNodeData (Int32 index=0)

void	SetCustomData (GeListNode *node)

GeListNode *	GetCustomData ()

BaseDocument *	GetDocument ()

Int32	GetBranchInfo (BranchInfo *info, Int32 max, GETBRANCHINFO flags)

Bool	IsDocumentRelated ()

Int32	GetInfo () const

Bool	GetNBit (NBIT bit) const

UInt32	GetNBitMask (Int32 index) const

Bool	ChangeNBit (NBIT bit, NBITCONTROL bitmode)

Public Member Functions inherited from C4DAtom
Int32	GetType () const

Int32	GetRealType () const

Int32	GetDiskType () const

Bool	IsInstanceOf (Int32 id) const

Int32	GetClassification () const

Bool	Message (Int32 type, void *data=nullptr)

Bool	MultiMessage (MULTIMSG_ROUTE flags, Int32 type, void *data)

C4DAtom *	GetClone (COPYFLAGS flags, AliasTrans *trn)

Bool	CopyTo (C4DAtom dst, COPYFLAGS flags, AliasTrans trn)

Bool	Read (HyperFile *hf, Int32 id, Int32 level)

Bool	Write (HyperFile *hf)

Bool	ReadObject (HyperFile *hf, Bool readheader)

Bool	WriteObject (HyperFile *hf)

Bool	GetDescription (Description *description, DESCFLAGS_DESC flags)

Bool	GetParameter (const DescID &id, GeData &t_data, DESCFLAGS_GET flags)

Bool	SetParameter (const DescID &id, const GeData &t_data, DESCFLAGS_SET flags)

DynamicDescription *	GetDynamicDescription ()

Bool	GetEnabling (const DescID &id, const GeData &t_data, DESCFLAGS_ENABLE flags, const BaseContainer *itemdesc)

Bool	TranslateDescID (const DescID &id, DescID &res_id, C4DAtom *&res_at)

UInt32	GetDirty (DIRTYFLAGS flags) const

void	SetDirty (DIRTYFLAGS flags)

UInt32	GetHDirty (HDIRTYFLAGS mask) const

void	SetHDirty (HDIRTYFLAGS mask)

Static Public Member Functions inherited from VariableTag
static VariableTag *	Alloc (Int32 type, Int32 count)

static void	Free (VariableTag *&bl)

Static Public Member Functions inherited from BaseTag
static BaseTag *	Alloc (Int32 type)

static void	Free (BaseTag *&bl)

Static Public Member Functions inherited from BaseList2D
static BaseList2D *	Alloc (Int32 type)

static void	Free (BaseList2D *&bl)

Static Public Attributes inherited from BaseList2D
static const Int32	SETBIT_FLAG_NODIRTY

static const Int32	SETBIT_FLAG_REMOVE

Constructor & Destructor Documentation

◆ StickTextureTag()

StickTextureTag ( )

private

◆ ~StickTextureTag()

~StickTextureTag ( )

private

Member Function Documentation

◆ Alloc()

static StickTextureTag* Alloc ( Int32 type )

static

Allocates a stick-texture tag. Destroy the allocated stick-texture tag with Free(). Use AutoAlloc to automate the allocation and destruction based on scope.

Parameters

[in] type The tag type. Normally Tsticktexture.

Returns: The allocated stick-texture tag, or nullptr if the allocation failed.

◆ Free()

static void Free ( StickTextureTag *& bl )

static

Destructs stick-texture tags allocated with Alloc(). Use AutoAlloc to automate the allocation and destruction based on scope.

Parameters

[in,out] bl The stick-texture tag to destruct. If the pointer is nullptr nothing happens. The pointer is assigned nullptr afterwards.

◆ GetDataAddressR()

const Vector* GetDataAddressR ( void ) const

Gets a handle to the read-only stick-texture coordinates array.

Returns: The read-only stick-texture coordinates array. The tag owns the pointed array.

◆ GetDataAddressW()

Vector* GetDataAddressW ( void )

Gets a handle to the writable stick-texture coordinates array.

Returns: The read-only stick-texture coordinates array. The tag owns the pointed array.

◆ Record()

Bool Record	(	BaseObject *	op,
		Bool	always
	)

Records the state of the object in the same way as the user clicking Record in the Stick Texture Tag within Cinema 4D.

Parameters

[in]	op	The object to record. The caller owns the pointed object.
[in]	always	If false then it will only be recorded if the point count has changed since the last time Record was called. true forces it to record always.

Returns: true if the stick-texture state was recorded successfully, otherwise false.
