#include <c4d_basetag.h>

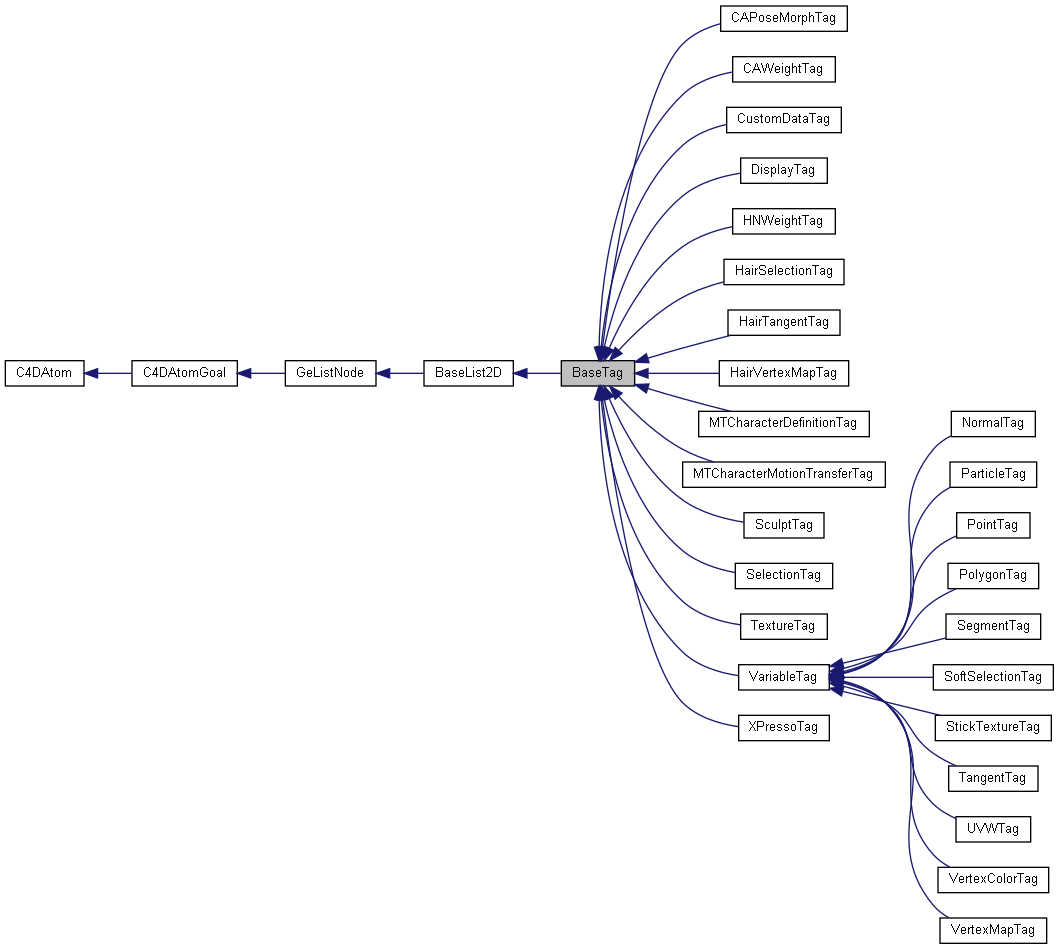

Inheritance diagram for BaseTag:

[legend]

Detailed Description

A variety of properties can be added to objects using tags.
For example, adding smoothing (Phong tag) or preventing an object from being edited accidentally (Protection tag).

Note: Has to be created with Alloc() and destroyed with Free(). Use AutoAlloc to automate the allocation and destruction based on scope.

Public Member Functions
Bool	Draw (BaseObject op, BaseDraw bd, BaseDrawHelp *bh)

Public Member Functions inherited from BaseList2D
void	SetBit (Int32 mask)

Bool	GetBit (Int32 mask) const

void	DelBit (Int32 mask)

void	ToggleBit (Int32 mask)

Int32	GetAllBits () const

void	SetAllBits (Int32 bits)

void	SetBitEx (Int32 mask, Int32 flags)

const Char *	GetViewportRenderId (VIEWPORT_RENDER_ID typeId) const

BaseList2D *	GetNext ()

BaseList2D *	GetPred ()

BaseContainer	GetData ()

void	SetData (const BaseContainer &bc, Bool add=true)

const BaseContainer *	GetDataInstance () const

BaseContainer *	GetDataInstance ()

const BaseContainer &	GetDataInstanceRef () const

BaseContainer &	GetDataInstanceRef ()

String	GetName () const

void	SetName (const maxon::String &name)

String	GetBubbleHelp ()

Bool	TransferGoal (BaseList2D *dst, Bool undolink)

Bool	TransferMarker (BaseList2D *dst) const

Bool	Scale (Float scale)

Bool	Edit ()

void	GetIcon (IconData *dat)

GeListHead *	GetNLARoot ()

BaseList2D *	AnimationLayerRemap (BaseObject **layer=nullptr)

String	GetTypeName ()

BaseList2D *	GetMain () const

void	InsertTrackSorted (CTrack *track)

Bool	AddEventNotification (BaseList2D bl, NOTIFY_EVENT eventid, NOTIFY_EVENT_FLAG flags, const BaseContainer data)

Bool	RemoveEventNotification (BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	FindEventNotification (BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	SetDescIDState (const DescID &id, DESCIDSTATE descidstate)

DESCIDSTATE	GetDescIDState (const DescID &id, Bool tolerant) const

GeListHead *	GetOverrideRoot ()

BaseOverride *	GetFirstOverride ()

GeListHead *	GetShaderRepositoryRoot ()

GeListHead *	GetHiddenShaderRoot ()

maxon::NimbusForwardRef	GetNimbusRef (const maxon::Id &spaceId) const

maxon::Result< maxon::NimbusForwardRef >	PrivateGetOrCreateNimbusRef (const maxon::Id &spaceId)

void	RemoveNimbusRef (const maxon::Id &spaceId)

maxon::Result< maxon::HashMap< maxon::Id, maxon::NimbusForwardRef > >	GetAllNimbusRefs () const

Bool	IsNodeBased () const

void	GetMarkerStampEx (UInt32 l1, UInt32 l2)

const GeMarker &	GetMarker () const

void	SetMarker (const GeMarker &m)

Bool	AddUniqueID (Int32 appid, const Char *const mem, Int bytes)

Bool	FindUniqueID (Int32 appid, const Char *&mem, Int &bytes) const

Int32	GetUniqueIDCount () const

Bool	GetUniqueIDIndex (Int32 idx, Int32 &id, const Char *&mem, Int &bytes) const

Bool	SetAnimatedParameter (CTrack *track, const DescID &id, const GeData &t_data1, const GeData &t_data2, Float mix, DESCFLAGS_SET flags)

Bool	GetAnimatedParameter (const DescID &id, GeData &t_data1, GeData &t_data2, Float &mix, DESCFLAGS_GET flags)

BaseShader *	GetFirstShader () const

void	InsertShader (BaseShader shader, BaseShader pred=nullptr)

void	ClearKeyframeSelection ()

Bool	FindKeyframeSelection (const DescID &id)

Bool	SetKeyframeSelection (const DescID &id, Bool selection)

Bool	KeyframeSelectionContent ()

LayerObject *	GetLayerObject (BaseDocument *doc)

Bool	SetLayerObject (LayerObject *layer)

const LayerData *	GetLayerData (BaseDocument *doc, Bool rawdata=false)

Bool	SetLayerData (BaseDocument *doc, const LayerData &data)

GeListHead *	GetCTrackRoot ()

CTrack *	GetFirstCTrack ()

CTrack *	FindCTrack (const DescID &id)

Public Member Functions inherited from GeListNode
GeListNode *	GetNext ()

GeListNode *	GetPred ()

GeListNode *	GetDown ()

GeListNode *	GetUp ()

GeListNode *	GetDownLast ()

void	InsertBefore (GeListNode *bl)

void	InsertAfter (GeListNode *bl)

void	InsertUnder (GeListNode *bl)

void	InsertUnderLast (GeListNode *bl)

void	Remove ()

GeListHead *	GetListHead ()

Int32	GetNodeID (Int32 index=0) const

template<typename CAST >
const CAST *	GetNodeData (Int32 index=0) const

template<typename CAST >
CAST *	GetNodeData (Int32 index=0)

void	SetCustomData (GeListNode *node)

GeListNode *	GetCustomData ()

BaseDocument *	GetDocument ()

Int32	GetBranchInfo (BranchInfo *info, Int32 max, GETBRANCHINFO flags)

Bool	IsDocumentRelated ()

Int32	GetInfo () const

Bool	GetNBit (NBIT bit) const

UInt32	GetNBitMask (Int32 index) const

Bool	ChangeNBit (NBIT bit, NBITCONTROL bitmode)

Public Member Functions inherited from C4DAtom
Int32	GetType () const

Int32	GetRealType () const

Int32	GetDiskType () const

Bool	IsInstanceOf (Int32 id) const

Int32	GetClassification () const

Bool	Message (Int32 type, void *data=nullptr)

Bool	MultiMessage (MULTIMSG_ROUTE flags, Int32 type, void *data)

C4DAtom *	GetClone (COPYFLAGS flags, AliasTrans *trn)

Bool	CopyTo (C4DAtom dst, COPYFLAGS flags, AliasTrans trn)

Bool	Read (HyperFile *hf, Int32 id, Int32 level)

Bool	Write (HyperFile *hf)

Bool	ReadObject (HyperFile *hf, Bool readheader)

Bool	WriteObject (HyperFile *hf)

Bool	GetDescription (Description *description, DESCFLAGS_DESC flags)

Bool	GetParameter (const DescID &id, GeData &t_data, DESCFLAGS_GET flags)

Bool	SetParameter (const DescID &id, const GeData &t_data, DESCFLAGS_SET flags)

DynamicDescription *	GetDynamicDescription ()

Bool	GetEnabling (const DescID &id, const GeData &t_data, DESCFLAGS_ENABLE flags, const BaseContainer *itemdesc)

Bool	TranslateDescID (const DescID &id, DescID &res_id, C4DAtom *&res_at)

UInt32	GetDirty (DIRTYFLAGS flags) const

void	SetDirty (DIRTYFLAGS flags)

UInt32	GetHDirty (HDIRTYFLAGS mask) const

void	SetHDirty (HDIRTYFLAGS mask)

Private Member Functions
	BaseTag ()

	~BaseTag ()

Alloc/Free
static BaseTag *	Alloc (Int32 type)

static void	Free (BaseTag *&bl)

Navigation
BaseTag *	GetNext (void)

BaseTag *	GetPred (void)

Miscellaneous
BaseObject *	GetObject (void)

BaseTag *	GetOrigin ()

Additional Inherited Members
Static Public Member Functions inherited from BaseList2D
static BaseList2D *	Alloc (Int32 type)

static void	Free (BaseList2D *&bl)

Static Public Attributes inherited from BaseList2D
static const Int32	SETBIT_FLAG_NODIRTY

static const Int32	SETBIT_FLAG_REMOVE

Constructor & Destructor Documentation

◆ BaseTag()

BaseTag ( )

private

◆ ~BaseTag()

~BaseTag ( )

private

Member Function Documentation

◆ Alloc()

static BaseTag* Alloc ( Int32 type )

static

Allocates a base tag. Destroy the allocated base tag with Free(). Use AutoAlloc to automate the allocation and destruction based on scope.

Parameters

[in] type The tag type: : Tag Types

Returns: The allocated base tag, or nullptr if the allocation failed.

◆ Free()

static void Free ( BaseTag *& bl )

static

Destructs base tags allocated with Alloc(). Use AutoAlloc to automate the allocation and destruction based on scope.

Parameters

[in,out] bl The base tag to destruct. If the pointer is nullptr nothing happens. The pointer is assigned nullptr afterwards.

◆ GetNext()

BaseTag* GetNext ( void )

Gets the next tag in the list.

Returns: The next tag, or nullptr if there is none. Cinema 4D owns the pointed tag.

◆ GetPred()

BaseTag* GetPred ( void )

Gets the previous tag in the list.

Returns: The previous tag, or nullptr if there is none. Cinema 4D owns the pointed tag.

◆ GetObject()

BaseObject* GetObject ( void )

Gets the object that the tag is attached to.

Returns: The host object, or nullptr if the tag is not associated with an object. Cinema 4D owns the pointed object.

◆ GetOrigin()

BaseTag* GetOrigin ( )

Gets where the tag was cloned from.
For example, if the tag is on a cache object, it tells what the original tag was from the original document.

Returns: The origin of the tag, or nullptr if such information is not available. Cinema 4D owns the pointed object.

◆ Draw()

Bool Draw	(	BaseObject *	op,
		BaseDraw *	bd,
		BaseDrawHelp *	bh
	)

Draws a tag.
