#include <lib_customdatatag.h>

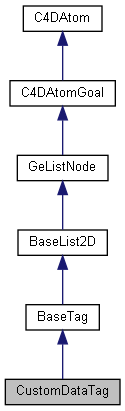

Inheritance diagram for CustomDataTag:

[legend]

Detailed Description

CustomDataTag contains data attached to each mesh vertex or each polyvertex. The CustomDataTag is automatically registered by implementing CustomDataTagClassInterface. While each CustomDataTagClassInterface implementation registers a specific CustomdataTag whith the provided plugin id (returned by BaseTag::GetType()) all CustomDataTags are instances of Tmeshattribute. In the case of polyvertex data storage the indexing follows the CPolygon pattern.

Public Member Functions
maxon::Result< void >	InitData ()

maxon::Result< maxon::CustomDataTagClass >	GetCustomDataTagClass () const

maxon::Result< maxon::DataType >	GetDataType () const

CUSTOMDATATAG_MODE	GetMode () const

void	SetMode (CUSTOMDATATAG_MODE mode)

maxon::Result< void >	Resize (Int newCount)

Int	GetComponentCount () const

const void *	GetConstVertexDataPtr (Int32 vertexIndex) const

void *	GetVertexDataPtr (Int32 vertexIndex)

void	SetVertexDataPtr (void *data, Int32 vertexIndex)

const void *	GetConstPolyVertexDataPtr (Int32 polygonIndex, Int32 polyVertexIndex) const

void *	GetPolyVertexDataPtr (Int32 polygonIndex, Int32 polyVertexIndex)

void	SetPolyVertexDataPtr (const void *data, Int32 polygonIndex, Int32 polyVertexIndex)

const maxon::PolyData< const void * >	GetConstPolygonDataPtr (Int32 polygonIndex) const

maxon::PolyData< void * >	GetPolygonDataPtr (Int32 polygonIndex)

void	SetPolygonDataPtr (maxon::PolyData< void * > data, Int32 polygonIndex)

maxon::MeshAttribute	GetVertexAttribute (Int32 vertexIndex)

void	SetVertexAttribute (const maxon::MeshAttribute &data, Int32 vertexIndex)

maxon::MeshAttribute	GetPolyVertexAttribute (Int32 polygonIndex, Int32 polyVertexIndex)

void	SetPolyVertexAttribute (const maxon::MeshAttribute &data, Int32 polygonIndex, Int32 polyVertexIndex)

maxon::PolyData< maxon::MeshAttribute >	GetPolygonAttribute (Int32 polygonIndex)

void	SetPolygonAttribute (maxon::PolyData< maxon::MeshAttribute > data, Int32 polygonIndex)

maxon::Result< void >	DisplayControl (BaseDocument doc, BaseObject op, BaseDraw bd, BaseDrawHelp bh, ControlDisplayStruct &cds) const

maxon::Result< void >	InitDisplayControl (BaseDocument doc, BaseDraw bd, const AtomArray *active)

void	FreeDisplayControl ()

template<typename TYPE >
const TYPE &	GetVertexData (Int32 vertexIndex) const

template<typename TYPE >
maxon::ResultRef< TYPE >	GetVertexDataRef (Int32 vertexIndex)

template<typename TYPE >
void	SetVertexData (Int32 vertexIndex, TYPE &&value)

template<typename TYPE >
const TYPE &	GetPolyVertexData (Int32 polygonIndex, Int32 polyVertexIndex) const

template<typename TYPE >
maxon::ResultRef< TYPE >	GetPolyVertexDataRef (Int32 polygonIndex, Int32 polyVertexIndex)

template<typename TYPE >
void	SetPolyVertexData (Int32 polygonIndex, Int32 polyVertexIndex, TYPE &&value)

template<typename TYPE >
const maxon::PolyData< TYPE > &	GetPolygonData (Int32 polygonIndex) const

template<typename TYPE >
maxon::Result< maxon::PolyData< TYPE & > >	GetPolygonDataRef (Int32 polygonIndex)

template<typename TYPE >
void	SetPolygonData (Int32 polygonIndex, maxon::PolyData< TYPE > &&value)

Public Member Functions inherited from BaseTag
Bool	Draw (BaseObject op, BaseDraw bd, BaseDrawHelp *bh)

BaseTag *	GetNext (void)

BaseTag *	GetPred (void)

BaseObject *	GetObject (void)

BaseTag *	GetOrigin ()

Public Member Functions inherited from BaseList2D
void	SetBit (Int32 mask)

Bool	GetBit (Int32 mask) const

void	DelBit (Int32 mask)

void	ToggleBit (Int32 mask)

Int32	GetAllBits () const

void	SetAllBits (Int32 bits)

void	SetBitEx (Int32 mask, Int32 flags)

const Char *	GetViewportRenderId (VIEWPORT_RENDER_ID typeId) const

BaseList2D *	GetNext ()

BaseList2D *	GetPred ()

BaseContainer	GetData ()

void	SetData (const BaseContainer &bc, Bool add=true)

const BaseContainer *	GetDataInstance () const

BaseContainer *	GetDataInstance ()

const BaseContainer &	GetDataInstanceRef () const

BaseContainer &	GetDataInstanceRef ()

String	GetName () const

void	SetName (const maxon::String &name)

String	GetBubbleHelp ()

Bool	TransferGoal (BaseList2D *dst, Bool undolink)

Bool	TransferMarker (BaseList2D *dst) const

Bool	Scale (Float scale)

Bool	Edit ()

void	GetIcon (IconData *dat)

GeListHead *	GetNLARoot ()

BaseList2D *	AnimationLayerRemap (BaseObject **layer=nullptr)

String	GetTypeName ()

BaseList2D *	GetMain () const

void	InsertTrackSorted (CTrack *track)

Bool	AddEventNotification (BaseList2D bl, NOTIFY_EVENT eventid, NOTIFY_EVENT_FLAG flags, const BaseContainer data)

Bool	RemoveEventNotification (BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	FindEventNotification (BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	SetDescIDState (const DescID &id, DESCIDSTATE descidstate)

DESCIDSTATE	GetDescIDState (const DescID &id, Bool tolerant) const

GeListHead *	GetOverrideRoot ()

BaseOverride *	GetFirstOverride ()

GeListHead *	GetShaderRepositoryRoot ()

GeListHead *	GetHiddenShaderRoot ()

maxon::NimbusForwardRef	GetNimbusRef (const maxon::Id &spaceId) const

maxon::Result< maxon::NimbusForwardRef >	PrivateGetOrCreateNimbusRef (const maxon::Id &spaceId)

void	RemoveNimbusRef (const maxon::Id &spaceId)

maxon::Result< maxon::HashMap< maxon::Id, maxon::NimbusForwardRef > >	GetAllNimbusRefs () const

Bool	IsNodeBased () const

void	GetMarkerStampEx (UInt32 l1, UInt32 l2)

const GeMarker &	GetMarker () const

void	SetMarker (const GeMarker &m)

Bool	AddUniqueID (Int32 appid, const Char *const mem, Int bytes)

Bool	FindUniqueID (Int32 appid, const Char *&mem, Int &bytes) const

Int32	GetUniqueIDCount () const

Bool	GetUniqueIDIndex (Int32 idx, Int32 &id, const Char *&mem, Int &bytes) const

Bool	SetAnimatedParameter (CTrack *track, const DescID &id, const GeData &t_data1, const GeData &t_data2, Float mix, DESCFLAGS_SET flags)

Bool	GetAnimatedParameter (const DescID &id, GeData &t_data1, GeData &t_data2, Float &mix, DESCFLAGS_GET flags)

BaseShader *	GetFirstShader () const

void	InsertShader (BaseShader shader, BaseShader pred=nullptr)

void	ClearKeyframeSelection ()

Bool	FindKeyframeSelection (const DescID &id)

Bool	SetKeyframeSelection (const DescID &id, Bool selection)

Bool	KeyframeSelectionContent ()

LayerObject *	GetLayerObject (BaseDocument *doc)

Bool	SetLayerObject (LayerObject *layer)

const LayerData *	GetLayerData (BaseDocument *doc, Bool rawdata=false)

Bool	SetLayerData (BaseDocument *doc, const LayerData &data)

GeListHead *	GetCTrackRoot ()

CTrack *	GetFirstCTrack ()

CTrack *	FindCTrack (const DescID &id)

Public Member Functions inherited from GeListNode
GeListNode *	GetNext ()

GeListNode *	GetPred ()

GeListNode *	GetDown ()

GeListNode *	GetUp ()

GeListNode *	GetDownLast ()

void	InsertBefore (GeListNode *bl)

void	InsertAfter (GeListNode *bl)

void	InsertUnder (GeListNode *bl)

void	InsertUnderLast (GeListNode *bl)

void	Remove ()

GeListHead *	GetListHead ()

Int32	GetNodeID (Int32 index=0) const

template<typename CAST >
const CAST *	GetNodeData (Int32 index=0) const

template<typename CAST >
CAST *	GetNodeData (Int32 index=0)

void	SetCustomData (GeListNode *node)

GeListNode *	GetCustomData ()

BaseDocument *	GetDocument ()

Int32	GetBranchInfo (BranchInfo *info, Int32 max, GETBRANCHINFO flags)

Bool	IsDocumentRelated ()

Int32	GetInfo () const

Bool	GetNBit (NBIT bit) const

UInt32	GetNBitMask (Int32 index) const

Bool	ChangeNBit (NBIT bit, NBITCONTROL bitmode)

Public Member Functions inherited from C4DAtom
Int32	GetType () const

Int32	GetRealType () const

Int32	GetDiskType () const

Bool	IsInstanceOf (Int32 id) const

Int32	GetClassification () const

Bool	Message (Int32 type, void *data=nullptr)

Bool	MultiMessage (MULTIMSG_ROUTE flags, Int32 type, void *data)

C4DAtom *	GetClone (COPYFLAGS flags, AliasTrans *trn)

Bool	CopyTo (C4DAtom dst, COPYFLAGS flags, AliasTrans trn)

Bool	Read (HyperFile *hf, Int32 id, Int32 level)

Bool	Write (HyperFile *hf)

Bool	ReadObject (HyperFile *hf, Bool readheader)

Bool	WriteObject (HyperFile *hf)

Bool	GetDescription (Description *description, DESCFLAGS_DESC flags)

Bool	GetParameter (const DescID &id, GeData &t_data, DESCFLAGS_GET flags)

Bool	SetParameter (const DescID &id, const GeData &t_data, DESCFLAGS_SET flags)

DynamicDescription *	GetDynamicDescription ()

Bool	GetEnabling (const DescID &id, const GeData &t_data, DESCFLAGS_ENABLE flags, const BaseContainer *itemdesc)

Bool	TranslateDescID (const DescID &id, DescID &res_id, C4DAtom *&res_at)

UInt32	GetDirty (DIRTYFLAGS flags) const

void	SetDirty (DIRTYFLAGS flags)

UInt32	GetHDirty (HDIRTYFLAGS mask) const

void	SetHDirty (HDIRTYFLAGS mask)

Static Public Member Functions
static CustomDataTag *	Alloc (Int32 tagId)

static void	Free (CustomDataTag *&tag)

Static Public Member Functions inherited from BaseTag
static BaseTag *	Alloc (Int32 type)

static void	Free (BaseTag *&bl)

Static Public Member Functions inherited from BaseList2D
static BaseList2D *	Alloc (Int32 type)

static void	Free (BaseList2D *&bl)

Private Member Functions
	CustomDataTag ()

	~CustomDataTag ()

Additional Inherited Members
Static Public Attributes inherited from BaseList2D
static const Int32	SETBIT_FLAG_NODIRTY

static const Int32	SETBIT_FLAG_REMOVE

Constructor & Destructor Documentation

◆ CustomDataTag()

CustomDataTag ( )

private

◆ ~CustomDataTag()

~CustomDataTag ( )

private

Member Function Documentation

◆ Alloc()

static CustomDataTag* Alloc ( Int32 tagId )

static

Allocates a new instance of a specific type of CustomDataTag.

Parameters

[in] tagId The plugin id for the new instance.

Returns: A new CustomDataTag pointer.

◆ Free()

static void Free ( CustomDataTag *& tag )

static

Destroys a CustomDataTag instance and frees all resources.

Parameters

[in,out] tag The tag to destroy.

◆ InitData()

maxon::Result<void> InitData ( )

Initializes the data with the correct component count based on the mesh vertex or PolygonCount. Must be called after BaseObject::InsertTag().

Returns: OK on success.

◆ GetCustomDataTagClass()

maxon::Result<maxon::CustomDataTagClass> GetCustomDataTagClass ( ) const

Returns a reference to the underlying CustomDataTagClass.

Returns: MeshAttributeClass reference or an error.

◆ GetDataType()

maxon::Result<maxon::DataType> GetDataType ( ) const

Returns a pointer to the datatype used by the CustomDataTag.

Returns: The dataType pointer or an error.

◆ GetMode()

CUSTOMDATATAG_MODE GetMode ( ) const

Returns the component mode, i.e. if it is attached to mesh vertices or to mesh polyvertices.

Returns: The current mode.

◆ SetMode()

void SetMode ( CUSTOMDATATAG_MODE mode )

Sets the component mode and translates existing data (e.g. from CUSTOMDATATAG_MODE::POLYVERTEX to CUSTOMDATATAG_MODE::VERTEX each vertex will receive the average value of all attached polyvertices)

Parameters

[in] mode The new CUSTOMDATATAG_MODE.

◆ Resize()

maxon::Result<void> Resize ( Int newCount )

Resizes the data count.

Parameters

[in] newCount The new data count.

Returns: OK on success.

◆ GetComponentCount()

Int GetComponentCount ( ) const

Gets the component count.

Returns: The data count.

◆ GetConstVertexDataPtr()

const void* GetConstVertexDataPtr ( Int32 vertexIndex ) const

Gets a read-only pointer to the data at the passed vertex index. Must be called only if GetMode() == CUSTOMDATATAG_MODE::VERTEX.

Parameters

[in] vertexIndex The vertex index.

Returns: A read-only pointer to the data at vertexIndex.

◆ GetVertexDataPtr()

void* GetVertexDataPtr ( Int32 vertexIndex )

Gets a writable pointer to the data at the passed vertex index. Must be called only if GetMode() == CUSTOMDATATAG_MODE::VERTEX.

Parameters

[in] vertexIndex The vertex index.

Returns: A writable pointer to the data at vertexIndex.

◆ SetVertexDataPtr()

void SetVertexDataPtr	(	void *	data,
		Int32	vertexIndex
	)

Sets data at vertexIndex. Must be called only if GetMode() == CUSTOMDATATAG_MODE::VERTEX. Data is copied.

Parameters

[in]	data	A pointer to the original data.
[in]	vertexIndex	The vertex index.

◆ GetConstPolyVertexDataPtr()

const void* GetConstPolyVertexDataPtr	(	Int32	polygonIndex,
		Int32	polyVertexIndex
	)		const

Gets a read-only pointer to the data at the passed polyVertexIndex in polygonIndex. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Parameters

[in]	polygonIndex	The polygon index.
[in]	polyVertexIndex	The polygon vertex index in range 0 to 3.

Returns: A read-only pointer to the data at polyVertexIndex in polygonIndex.

◆ GetPolyVertexDataPtr()

void* GetPolyVertexDataPtr	(	Int32	polygonIndex,
		Int32	polyVertexIndex
	)

Gets a writable pointer to the data at the passed polyVertexIndex in polygonIndex. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Parameters

[in]	polygonIndex	The polygon index.
[in]	polyVertexIndex	The polygon vertex index in range 0 to 3.

Returns: A writable pointer to the data at polyVertexIndex in polygonIndex.

◆ SetPolyVertexDataPtr()

void SetPolyVertexDataPtr	(	const void *	data,
		Int32	polygonIndex,
		Int32	polyVertexIndex
	)

Sets data at polyVertexIndex in polygonIndex. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX. Data is copied.

Parameters

[in]	data	A pointer to the original data.
[in]	polygonIndex	The polygon index.
[in]	polyVertexIndex	The polygon vertex index in range 0 to 3.

◆ GetConstPolygonDataPtr()

const maxon::PolyData<const void*> GetConstPolygonDataPtr ( Int32 polygonIndex ) const

Retrieves read-only PolyData pointers to the data at the passed polygonIndex. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Parameters

[in] polygonIndex The polygon index.

Returns: A PolyData that contains read-only pointers.

◆ GetPolygonDataPtr()

maxon::PolyData<void*> GetPolygonDataPtr ( Int32 polygonIndex )

Retrieves writable PolyData pointers to the data at the passed polygonIndex. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Parameters

[in] polygonIndex The polygon index.

Returns: A PolyData that contains writable pointers.

◆ SetPolygonDataPtr()

void SetPolygonDataPtr	(	maxon::PolyData< void * >	data,
		Int32	polygonIndex
	)

Sets data for a polygon. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX. Data is copied.

Parameters

[in]	data	A PolyData that contains to the original data.
[in]	polygonIndex	The polygon index.

◆ GetVertexAttribute()

maxon::MeshAttribute GetVertexAttribute ( Int32 vertexIndex )

Gets a writable MeshAttribute at the passed vertex index. Must be called only if GetMode() == CUSTOMDATATAG_MODE::VERTEX.

Parameters

[in] vertexIndex The vertex index.

Returns: A writable MeshAttribute at vertexIndex.

◆ SetVertexAttribute()

void SetVertexAttribute	(	const maxon::MeshAttribute &	data,
		Int32	vertexIndex
	)

Sets MeshAttribute at vertexIndex. Must be called only if GetMode() == CUSTOMDATATAG_MODE::VERTEX. Data is copied.

Parameters

[in]	data	A MeshAttribute which contains the original data.
[in]	vertexIndex	The vertex index.

◆ GetPolyVertexAttribute()

maxon::MeshAttribute GetPolyVertexAttribute	(	Int32	polygonIndex,
		Int32	polyVertexIndex
	)

Gets a writable MeshAttribute to the data at the passed polyVertexIndex in polygonIndex. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Parameters

[in]	polygonIndex	The polygon index.
[in]	polyVertexIndex	The polygon vertex index in range 0 to 3.

Returns: A writable MeshAttribute at polyVertexIndex in polygonIndex.

◆ SetPolyVertexAttribute()

void SetPolyVertexAttribute	(	const maxon::MeshAttribute &	data,
		Int32	polygonIndex,
		Int32	polyVertexIndex
	)

Sets MeshAttribute at polyVertexIndex in polygonIndex. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX. Data is copied.

Parameters

[in]	data	A MeshAttribute which contains the original data.
[in]	polygonIndex	The polygon index.
[in]	polyVertexIndex	The polygon vertex index in range 0 to 3.

◆ GetPolygonAttribute()

maxon::PolyData<maxon::MeshAttribute> GetPolygonAttribute ( Int32 polygonIndex )

Retrieves writable PolyData of MeshAttributes at the passed polygonIndex. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Parameters

[in] polygonIndex The polygon index.

Returns: A writable PolyData of MeshAttributes.

◆ SetPolygonAttribute()

void SetPolygonAttribute	(	maxon::PolyData< maxon::MeshAttribute >	data,
		Int32	polygonIndex
	)

Sets MeshAttribute data for a polygon. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX. Data is copied.

Parameters

[in]	data	A PolyData of MeshAttribute which contains the original data.
[in]	polygonIndex	The polygon index.

◆ DisplayControl()

maxon::Result<void> DisplayControl	(	BaseDocument *	doc,
		BaseObject *	op,
		BaseDraw *	bd,
		BaseDrawHelp *	bh,
		ControlDisplayStruct &	cds
	)		const

Private.

◆ InitDisplayControl()

maxon::Result<void> InitDisplayControl	(	BaseDocument *	doc,
		BaseDraw *	bd,
		const AtomArray *	active
	)

Private.

◆ FreeDisplayControl()

void FreeDisplayControl ( )

Private.

◆ GetVertexData()

const TYPE& GetVertexData ( Int32 vertexIndex ) const

Gets a read-only data reference for the given index. The specified type must match, otherwise this will crash. Must be called only if GetMode() == CUSTOMDATATAG_MODE::VERTEX.

Template Parameters

TYPE	The type that will be returned.

Parameters

[in] vertexIndex The vertex index.

Returns: Reference to the data at vertexIndex.

◆ GetVertexDataRef()

maxon::ResultRef<TYPE> GetVertexDataRef ( Int32 vertexIndex )

Gets a writable data reference for the given index. The specified type must match, otherwise this will crash. Must be called only if GetMode() == CUSTOMDATATAG_MODE::VERTEX.

Template Parameters

TYPE	The type that will be returned.

Parameters

[in] vertexIndex The vertex index.

Returns: Reference to the data at vertexIndex.

◆ SetVertexData()

void SetVertexData	(	Int32	vertexIndex,
		TYPE &&	value
	)

Sets a data value at vertexIndex. The operation always succeeds as the datatype either needs to be trivially copyable or support move semantics. Must be called only if GetMode() == CUSTOMDATATAG_MODE::VERTEX.

Template Parameters

TYPE	The type that will be set.

Parameters

[in]	vertexIndex	The vertex index.
[in]	value	The new data value.

◆ GetPolyVertexData()

const TYPE& GetPolyVertexData	(	Int32	polygonIndex,
		Int32	polyVertexIndex
	)		const

Gets a read-only data reference for the given polygonIndex and polyVertexIndex. The specified type must match, otherwise this will crash. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Template Parameters

TYPE	The type that will be returned.

Parameters

[in]	polygonIndex	The polygon index.
[in]	polyVertexIndex	The polygon vertex index in range 0 to 3.

Returns: Reference to the data at polyVertexIndex in polygonIndex.

◆ GetPolyVertexDataRef()

maxon::ResultRef<TYPE> GetPolyVertexDataRef	(	Int32	polygonIndex,
		Int32	polyVertexIndex
	)

Gets a writable data reference for the given polygonIndex and polyVertexIndex. The specified type must match, otherwise this will crash. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Template Parameters

TYPE	The type that will be returned.

Parameters

[in]	polygonIndex	The polygon index.
[in]	polyVertexIndex	The polygon vertex index in range 0 to 3.

Returns: Reference to the data at polyVertexIndex in polygonIndex.

◆ SetPolyVertexData()

void SetPolyVertexData	(	Int32	polygonIndex,
		Int32	polyVertexIndex,
		TYPE &&	value
	)

Sets a data value for a given polygonIndex and polyVertexIndex. The operation always succeeds as the datatype either needs to be trivially copyable or support move semantics. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Template Parameters

TYPE	The type that will be set.

Parameters

[in]	polygonIndex	The polygon index.
[in]	polyVertexIndex	The polygon vertex index in range 0 to 3.
[in]	value	The new data value.

◆ GetPolygonData()

const maxon::PolyData<TYPE>& GetPolygonData ( Int32 polygonIndex ) const

Gets a read-only PolyData data reference for the given polygonIndex. The specified type must match, otherwise this will crash. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Template Parameters

TYPE	The type that will be returned.

Parameters

[in] polygonIndex The polygon index.

Returns: Reference to the PolyData at polygonIndex.

◆ GetPolygonDataRef()

maxon::Result<maxon::PolyData<TYPE&> > GetPolygonDataRef ( Int32 polygonIndex )

Gets a writable PolyData data reference for the given polygonIndex. The specified type must match, otherwise this will crash. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Template Parameters

TYPE	The type that will be returned.

Parameters

[in] polygonIndex The polygon index.

Returns: Reference to the PolyData at polygonIndex.

◆ SetPolygonData()

void SetPolygonData	(	Int32	polygonIndex,
		maxon::PolyData< TYPE > &&	value
	)

Sets a polygon data value. The operation always succeeds as the datatype either needs to be trivially copyable or support move semantics. Must be called only if GetMode() == CUSTOMDATATAG_MODE::POLYVERTEX.

Template Parameters

TYPE	The type that will be set.

Parameters

[in]	polygonIndex	The polygon index.
[in]	value	The new data values.

Detailed Description

Public Member Functions

Static Public Member Functions

Private Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ CustomDataTag()

◆ ~CustomDataTag()

Member Function Documentation

◆ Alloc()

◆ Free()

◆ InitData()

◆ GetCustomDataTagClass()

◆ GetDataType()

◆ GetMode()

◆ SetMode()

◆ Resize()

◆ GetComponentCount()

◆ GetConstVertexDataPtr()

◆ GetVertexDataPtr()

◆ SetVertexDataPtr()

◆ GetConstPolyVertexDataPtr()

◆ GetPolyVertexDataPtr()

◆ SetPolyVertexDataPtr()

◆ GetConstPolygonDataPtr()

◆ GetPolygonDataPtr()

◆ SetPolygonDataPtr()

◆ GetVertexAttribute()

◆ SetVertexAttribute()

◆ GetPolyVertexAttribute()

◆ SetPolyVertexAttribute()

◆ GetPolygonAttribute()

◆ SetPolygonAttribute()

◆ DisplayControl()

◆ InitDisplayControl()

◆ FreeDisplayControl()

◆ GetVertexData()

◆ GetVertexDataRef()

◆ SetVertexData()

◆ GetPolyVertexData()

◆ GetPolyVertexDataRef()

◆ SetPolyVertexData()

◆ GetPolygonData()

◆ GetPolygonDataRef()

◆ SetPolygonData()
