c4d.gui.TreeViewCustomGui¶

class c4d.gui.TreeViewCustomGui¶

The tree view GUI (CUSTOMGUI_TREEVIEW) is a very versatile list view interface.

New in version R13.029.

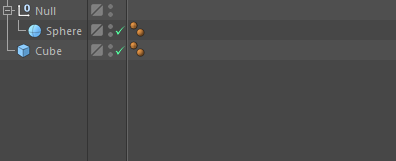

It looks like this:

The settings are:

TREEVIEW_BORDER int Border type:

BORDER_NONE No border.

BORDER_THIN_IN Thin border inward.

BORDER_THIN_OUT Thin border outward.

BORDER_IN Normal border inward.

BORDER_OUT Normal border outward.

BORDER_GROUP_IN Group border inside.

BORDER_GROUP_OUT Group border outside.

BORDER_OUT2 Outward border 2.

BORDER_OUT3 Outward border 3

BORDER_BLACK Thin black line.

BORDER_ACTIVE_1 Active border 1.

BORDER_ACTIVE_2 Active border 2.

BORDER_ACTIVE_3 Active border 3.

BORDER_ACTIVE_4 Active border 4.

BORDER_GROUP_TOP Border along the top.

BORDER_ROUND Border with round corners.

BORDER_SCHEME_EDIT Edit field border like the shortcut gadget for example.

BORDER_SCHEME_EDIT_NUMERIC Edit field border that is open to the right like the link field for example.

BORDER_OUT3l Outward border 3, open to the left.

BORDER_OUT3r Outward border 3, open to the right.

BORDER_THIN_INb Thin border inward, open to the botton.

BORDER_MASK Masks out border type.

BORDER_TEXT_DOTTED

New in version R21:
Only used with GeDialog.AddStaticText().

Draws a dotted line at right of text, useful to visually connect the text with its parameter.

BORDER_WITH_TITLE_MONO Display group title with monospaced font.

BORDER_WITH_TITLE_BOLD Display group title with bold font.

BORDER_WITH_TITLE Display group title in the border.

TREEVIEW_OUTSIDE_DROP bool True if an object may be dropped under all the objects in the tree view.

TREEVIEW_HIDE_LINES bool True if no lines should be drawn.

TREEVIEW_CTRL_DRAG bool True if item may be duplicated by Ctrl + Drag.

TREEVIEW_NO_MULTISELECT bool True if no multiple selection is allowed.

TREEVIEW_HAS_HEADER bool True if the tree view may have a header line.

TREEVIEW_RESIZE_HEADER bool True if the column width can be changed by the user.

TREEVIEW_MOVE_COLUMN bool True if the user can move the columns.

TREEVIEW_FIXED_LAYOUT bool True if all lines have the same height.

TREEVIEW_NOAUTOCOLUMNS bool True if only the first line is asked for the columns width, resulting in a huge speedup.

TREEVIEW_NO_OPEN_CTRLCLK bool True if it is not allowed to open the complete tree with Ctrl + Click.

TREEVIEW_ALT_DRAG bool True if Alt should be used instead of Ctrl for drag and drop; implies item may be duplicated by Alt + Drag.

TREEVIEW_NO_BACK_DELETE bool Disable “delete pressed” messages if backspace was hit.

TREEVIEW_NO_DELETE bool Disable Delete Message Callback completely for backspace and delete.

TREEVIEW_ALTERNATE_BG bool Alternate background per line.

TREEVIEW_CURSORKEYS bool True if cursor keys should be processed. Note: The focus item has to be set to None if it is deleted and this flag is set.

TREEVIEW_NOENTERRENAME bool Suppresses the rename popup when the user presses enter.

TREEVIEW_NO_VERTICALSCROLL bool True to disable vertical scrolling and show the full list.

TREEVIEW_ADDROW bool Show an add new column row at the bottom of the list.

TREEVIEW_RESIZABLE bool The treeview is resizable from the bottom edge.

Methods Signatures

`TreeViewCustomGui.SetRoot(self, root, functions, ...)`	Initializes the tree.
`TreeViewCustomGui.SetLayout(self, columns, data)`	Sets the layout for the tree view.
`TreeViewCustomGui.Refresh(self)`	Refreshes the tree view.
`TreeViewCustomGui.SetHeaderText(self, lColumnID, str)`	Set the header text for a column.
`TreeViewCustomGui.MakeVisible(self, pObj)`	Scrolls to pObj and expands the tree if necessary.
`TreeViewCustomGui.ShowObject(self, pObj)`	Expands the tree to pObj.
`TreeViewCustomGui.GetVisibleScrollArea(self)`	Queries the internal scroll group for its currently visible region.
`TreeViewCustomGui.SetVisibleScrollArea(self, x1, y1, x2, y2)`	Sets the internal scroll group currently visible region, a rectangle between (x1, y1) and (x2, y2).
`TreeViewCustomGui.GetVisibleLineCount(self)`	Gets the number of currently visible lines related to folded and unfolded items of the tree.
`TreeViewCustomGui.SetFocusItem(self, pItem)`	Sets the focus item.
`TreeViewCustomGui.IsFocusItem(self, pItem)`	Checks if pItem is the focus item.

Inheritance

Parent Class:

c4d.gui.BaseCustomGui

Methods Documentation

TreeViewCustomGui.SetRoot(self, root, functions, userdata)¶

Initializes the tree.

Parameters:	root (any) – Root object. functions (c4d.gui.TreeViewFunctions) – Tree view functions. userdata (any) – User data.
Return type:	bool
Returns:	True if successful, otherwise False.

TreeViewCustomGui.SetLayout(self, columns, data)¶

Sets the layout for the tree view.

Parameters:

columns (int) – Number of columns.

data (c4d.BaseContainer) –

Column data container, with one column type entry for each column:

LV_TREE	Tree or list.
LV_USERTREE	User tree. If set, the tree view calls `TreeViewFunctions.DrawCell()` for the left cell of each line (otherwise it would display the object’s name in the cell).
LV_USER	Custom.
LV_CHECKBOX	Checkbox. If set, the tree view calls `TreeViewFunctions.IsChecked()` and `TreeViewFunctions.SetCheck()` for each column and row.
LV_CHECKBOXUSER	Checkbox. If set, the tree view calls `TreeViewFunctions.IsChecked()` and `TreeViewFunctions.SetCheck()` for each column and row. User draw by `TreeViewFunctions.DrawCell()`.
LV_SLIDER	Slider. If set, the tree view calls TreeViewFunctions.GetFloatValue and TreeViewFunctions.SetFloatValue() for each column and row. NOT AVAILABLE IN PYTHON.
LV_DROPDOWN	Dropdown cycle box. If set, the tree view calls TreeViewFunctions.GetDropDownMenu() and TreeViewFunctions.SetDropDownMenu() for each column and row. NOT AVAILABLE IN PYTHON.

Return type:

bool

Returns:

True if successful, otherwise False.

TreeViewCustomGui.Refresh(self)¶: Refreshes the tree view.

TreeViewCustomGui.SetHeaderText(self, lColumnID, str)¶

Set the header text for a column.

Parameters:	lColumnID (int) – Column index. str (str) – Header text.
Return type:	bool
Returns:	True if successful, otherwise False.

TreeViewCustomGui.MakeVisible(self, pObj)¶

Scrolls to pObj and expands the tree if necessary.

Parameters:	pObj (any) – The object to scroll to.
Return type:	bool
Returns:	True if successful, otherwise False.

TreeViewCustomGui.ShowObject(self, pObj)¶

Expands the tree to pObj.

Parameters:	pObj (any) – The object to expand to.
Return type:	bool
Returns:	True if successful, otherwise False.

TreeViewCustomGui.GetVisibleScrollArea(self)¶

Queries the internal scroll group for its currently visible region.

New in version R17.048.

Return type:	tuple(int,int,int,int)
Returns:	The X and Y coordinates of the top/bottom left/right visible corner: tuple(x1,y1,x2,y2).

TreeViewCustomGui.SetVisibleScrollArea(self, x1, y1, x2, y2)¶

Sets the internal scroll group currently visible region, a rectangle between (x1, y1) and (x2, y2).

New in version R18.020.

Parameters:	x1 (int) – The left X value. y1 (int) – The top Y value. x2 (int) – The right X value. y2 (int) – The bottom Y value.
Return type:	bool
Returns:	True if successful, otherwise False.

TreeViewCustomGui.GetVisibleLineCount(self)¶

Gets the number of currently visible lines related to folded and unfolded items of the tree.

New in version R17.048.

Return type:	int
Returns:	The number of visible lines.

TreeViewCustomGui.SetFocusItem(self, pItem)¶

Sets the focus item.

Parameters:	pItem (any) – The new focus item.

TreeViewCustomGui.IsFocusItem(self, pItem)¶

Checks if pItem is the focus item.

Parameters:	pItem (any) – The item to check.
Return type:	bool
Returns:	True if pItem is the focus item, otherwise False.

BORDER_NONE	No border.
BORDER_THIN_IN	Thin border inward.
BORDER_THIN_OUT	Thin border outward.
BORDER_IN	Normal border inward.
BORDER_OUT	Normal border outward.
BORDER_GROUP_IN	Group border inside.
BORDER_GROUP_OUT	Group border outside.
BORDER_OUT2	Outward border 2.
BORDER_OUT3	Outward border 3
BORDER_BLACK	Thin black line.
BORDER_ACTIVE_1	Active border 1.
BORDER_ACTIVE_2	Active border 2.
BORDER_ACTIVE_3	Active border 3.
BORDER_ACTIVE_4	Active border 4.
BORDER_GROUP_TOP	Border along the top.
BORDER_ROUND	Border with round corners.
BORDER_SCHEME_EDIT	Edit field border like the shortcut gadget for example.
BORDER_SCHEME_EDIT_NUMERIC	Edit field border that is open to the right like the link field for example.
BORDER_OUT3l	Outward border 3, open to the left.
BORDER_OUT3r	Outward border 3, open to the right.
BORDER_THIN_INb	Thin border inward, open to the botton.
BORDER_MASK	Masks out border type.
BORDER_TEXT_DOTTED	New in version R21: Only used with `GeDialog.AddStaticText()`. Draws a dotted line at right of text, useful to visually connect the text with its parameter.
BORDER_WITH_TITLE_MONO	Display group title with monospaced font.
BORDER_WITH_TITLE_BOLD	Display group title with bold font.
BORDER_WITH_TITLE	Display group title in the border.

TREEVIEW_OUTSIDE_DROP	bool	True if an object may be dropped under all the objects in the tree view.
TREEVIEW_HIDE_LINES	bool	True if no lines should be drawn.
TREEVIEW_CTRL_DRAG	bool	True if item may be duplicated by Ctrl + Drag.
TREEVIEW_NO_MULTISELECT	bool	True if no multiple selection is allowed.
TREEVIEW_HAS_HEADER	bool	True if the tree view may have a header line.
TREEVIEW_RESIZE_HEADER	bool	True if the column width can be changed by the user.
TREEVIEW_MOVE_COLUMN	bool	True if the user can move the columns.
TREEVIEW_FIXED_LAYOUT	bool	True if all lines have the same height.
TREEVIEW_NOAUTOCOLUMNS	bool	True if only the first line is asked for the columns width, resulting in a huge speedup.
TREEVIEW_NO_OPEN_CTRLCLK	bool	True if it is not allowed to open the complete tree with Ctrl + Click.
TREEVIEW_ALT_DRAG	bool	True if Alt should be used instead of Ctrl for drag and drop; implies item may be duplicated by Alt + Drag.
TREEVIEW_NO_BACK_DELETE	bool	Disable “delete pressed” messages if backspace was hit.
TREEVIEW_NO_DELETE	bool	Disable Delete Message Callback completely for backspace and delete.
TREEVIEW_ALTERNATE_BG	bool	Alternate background per line.
TREEVIEW_CURSORKEYS	bool	True if cursor keys should be processed. Note: The focus item has to be set to None if it is deleted and this flag is set.
TREEVIEW_NOENTERRENAME	bool	Suppresses the rename popup when the user presses enter.
TREEVIEW_NO_VERTICALSCROLL	bool	True to disable vertical scrolling and show the full list.
TREEVIEW_ADDROW	bool	Show an add new column row at the bottom of the list.
TREEVIEW_RESIZABLE	bool	The treeview is resizable from the bottom edge.
