c4d.gui.SplineCustomGui

class c4d.gui.SplineCustomGui

Spline GUI (CUSTOMGUI_SPLINE) for the SplineData data type. These are the settings:

SPLINECONTROL_GRID_H	bool	Shows the horizontal grid.
SPLINECONTROL_GRID_V	bool	Shows the vertical grid.
SPLINECONTROL_VALUE_EDIT_H	bool	Show X edit box.
SPLINECONTROL_VALUE_EDIT_V	bool	Show Y edit box.
SPLINECONTROL_VALUE_LABELS_H_LEGACY	bool	Show labels on the X axis.
SPLINECONTROL_VALUE_LABELS_V_LEGACY	bool	Show labels on the Y axis.
SPLINECONTROL_X_MIN	float	Min. X.
SPLINECONTROL_X_MAX	float	Max. X.
SPLINECONTROL_X_STEPS	float	X steps (for the edit box).
SPLINECONTROL_Y_MIN	float	Min. Y.
SPLINECONTROL_Y_MAX	float	Max. Y.
SPLINECONTROL_Y_STEPS	float	Y steps (for the edit box).
SPLINECONTROL_PRESET_BTN_LEGACY	bool	Has preset button.
SPLINECONTROL_ROUND_SLIDER_LEGACY	bool	Has tension slider.
SPLINECONTROL_GRIDLINES_H_LEGACY	int	Number of horizontal grid lines.
SPLINECONTROL_GRIDLINES_V_LEGACY	int	Number of vertical grid lines.
SPLINECONTROL_MINSIZE_H	int	Minimal horizontal size.
SPLINECONTROL_MINSIZE_V	int	Minimal vertical size.
SPLINECONTROL_X_MIN_TEXT_LEGACY	str	Xmin label text.
SPLINECONTROL_X_MAX_TEXT_LEGACY	str	Xmax label text.
SPLINECONTROL_Y_MIN_TEXT_LEGACY	str	Xmin label text.
SPLINECONTROL_Y_MAX_TEXT_LEGACY	str	Xmax label text.
SPLINECONTROL_X_TEXT	str	X label text.
SPLINECONTROL_Y_TEXT	str	Y label text.
SPLINECONTROL_NEW_NO_HORIZ_LEGACY	bool	New knots can’t be moved horizontally.
SPLINECONTROL_NEW_NO_VERT_LEGACY	bool	New knots can’t be moved vertically.
SPLINECONTROL_HIDE_GRID_H_LEGACY	bool	Hide the horizontal grid.
SPLINECONTROL_HIDE_GRID_V_LEGACY	bool	Hide the vertical grid.
SPLINECONTROL_HIDE_PRESET_BTN_LEGACY	bool	Hide preset button.
SPLINECONTROL_HIDE_ROUND_SLIDER_LEGACY	bool	Hide tension slider.
SPLINECONTROL_HIDE_VALUE_EDIT_H_LEGACY	bool	Hide X edit box.
SPLINECONTROL_HIDE_VALUE_EDIT_V_LEGACY	bool	Hide Y edit box.
SPLINECONTROL_HIDE_VALUE_LABELS_H_LEGACY	bool	Hide labels on the X axis.
SPLINECONTROL_HIDE_VALUE_LABELS_V_LEGACY	bool	Hide labels on the Y axis.
SPLINECONTROL_ALLOW_HORIZ_SCALE_MOVE	bool	Allows horizontal scale and move.
SPLINECONTROL_ALLOW_VERT_SCALE_MOVE	bool	Allows vertical scale and move.
SPLINECONTROL_OPTIMAL	bool	Uses optimal area.
SPLINECONTROL_OPTIMAL_X_MIN	float	Optimal X minimum.
SPLINECONTROL_OPTIMAL_Y_MIN	float	Optimal Y minimum.
SPLINECONTROL_OPTIMAL_X_MAX	float	Optimal X maximum.
SPLINECONTROL_OPTIMAL_Y_MAX	float	Optimal Y maximum.
SPLINECONTROL_SQUARE	bool	Area is square.
SPLINECONTROL_CUSTOMCOLOR_SET	bool	The custom color specified in SPLINECONTROL_CUSTOMCOLOR_COL is used for the curves.
SPLINECONTROL_CUSTOMCOLOR_COL	vector	The custom color.
SPLINECONTROL_NO_FLOATING_WINDOW	bool	No entry in the menu to open the spline in a floating window.
SPLINECONTROL_NO_PRESETS	bool	No load/save preset buttons.

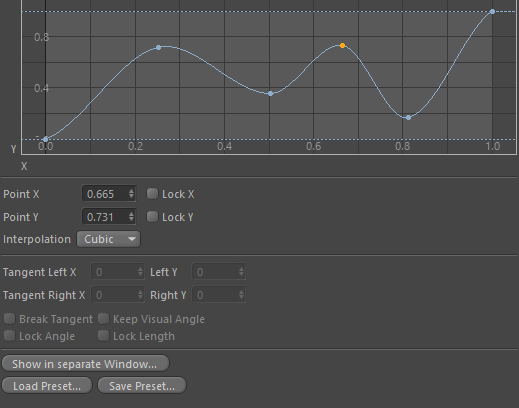

This is how it looks:

Methods Signatures

SplineCustomGui.SetSpline(self, data)	Sets the data.
SplineCustomGui.GetSplineData(self)	Gets the data.
SplineCustomGui.SetGridLineCountH(self, l)	Set the horizontal grid line count.
SplineCustomGui.SetGridLineCountV(self, l)	Set the vertical grid line count.
SplineCustomGui.GetGridLineCountH(self)	Get the horizontal grid line count.
SplineCustomGui.GetGridLineCountV(self)	Get the vertical grid line count.
SplineCustomGui.GetScreenPosition(self, v)	Get the screen position for a spline value.
SplineCustomGui.GetValue(self, x, y)	Get the spline value for a screen position.
SplineCustomGui.SetCustomColor(self[, bSet, col])	Set a custom color for the curve.

Inheritance

Inheritance

Parent Class:

• c4d.gui.BaseCustomGui

Methods Documentation

SplineCustomGui.SetSpline(self, data)

Sets the data.

Parameters:data (c4d.SplineData) – The new spline data. Return type:bool Returns:True if successful, otherwise False.

SplineCustomGui.GetSplineData(self)

Gets the data.

Return type:c4d.SplineData Returns:The spline data.

SplineCustomGui.SetGridLineCountH(self, l)

Set the horizontal grid line count.

Parameters:l (int) – The new count.

SplineCustomGui.SetGridLineCountV(self, l)

Set the vertical grid line count.

Parameters:l (int) – The new count.

SplineCustomGui.GetGridLineCountH(self)

Get the horizontal grid line count.

Return type:int Returns:The count.

SplineCustomGui.GetGridLineCountV(self)

Get the vertical grid line count.

Return type:int Returns:The count.

SplineCustomGui.GetScreenPosition(self, v)

Get the screen position for a spline value.

Parameters:v (c4d.Vector) – The spline value. Return type:tuple(float, float) Returns:The screen X and Y positions.

SplineCustomGui.GetValue(self, x, y)

Get the spline value for a screen position.

New in version R14.014.

Parameters:

• x (int) – The screen X position.
• y (int) – The screen Y position.

Return type:

c4d.Vector

Returns:

The spline value.

SplineCustomGui.SetCustomColor(self, bSet=False, col=Vector(0))

Set a custom color for the curve.

New in version R14.014.

Parameters:

• bSet (bool) – True if a custom color should be used.
• col (c4d.Vector) – The custom color.
