c4d.gui.GradientCustomGui

class c4d.gui.GradientCustomGui

Gradient GUI(CUSTOMGUI_GRADIENT) for Gradient data type. These are the settings:

Symbol ID Type Description Property in a res file
GRADIENTPROPERTY_ALPHA_WITH_COLOR bool
If GRADIENTPROPERTY_ALPHA is set to True, this creates a Gradient with Color and Alpha.
It’s also shows controls to handle both gradients.

GRADIENT MYGRADIENT { COLOR; }
GRADIENTPROPERTY_ALPHA bool Creates an Alpha gradient.
GRADIENT MYGRADIENT { ALPHA; }
GRADIENTPROPERTY_NOEDITCOLOR bool No color editing.
GRADIENT MYGRADIENT { NOEDITCOLOR; }
GRADIENTPROPERTY_NOPRESETS bool No load/save preset buttons.
GRADIENT MYGRADIENT { NOPRESETS; }
GRADIENTPROPERTY_NOINTERPOLATION bool No Interpolation parameter.
GRADIENT MYGRADIENT { NOINTERPOLATION; }
GRADIENTPROPERTY_NOKNOTPOSITION bool No Knot Position parameter.
GRADIENT MYGRADIENT { NOKNOTPOSITION; }
GRADIENTPROPERTY_NOBIASPOSITION bool No Bias Position parameter.
GRADIENT MYGRADIENT { NOBIASPOSITION; }
GRADIENTPROPERTY_NOBRIGHTNESS bool No Brightness parameter.
GRADIENT MYGRADIENT { NOBRIGHTNESS; }

Note

These 2 options are allowed:

  • DR_COLORFIELD_ICC_BASEDOC: Use ICC profile of the current document.
  • DR_COLORFIELD_ICC_BPTEX: Use ICC profile of the current BodyPain3D texture.

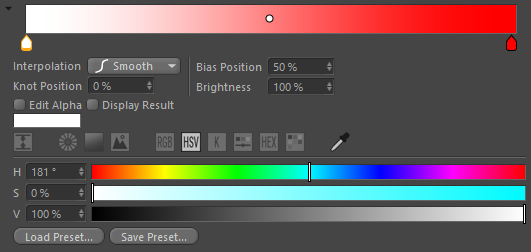

This is what it looks like:

../../../../_images/gradientcustomgui_gradient.png

Methods Signatures

GradientCustomGui.SetGradient(self, data) Sets the data.
GradientCustomGui.GetGradient(self) Get the data.

Inheritance

Inheritance

Parent Class:

Methods Documentation

GradientCustomGui.SetGradient(self, data)

Sets the data.

Parameters:data (c4d.Gradient) – The new Gradient data.
Return type:bool
Returns:True if successful, otherwise False.
GradientCustomGui.GetGradient(self)

Get the data.

Return type:c4d.Gradient
Returns:The new gradient data object.
