LodObjectData Class Reference

#include <c4d_lodobjectdata.h>

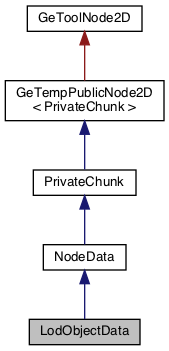

Inheritance diagram for LodObjectData:

Public Types
typedef NodeData	SUPER
Public Types inherited from NodeData
typedef PrivateChunk	SUPER

Public Member Functions
virtual Bool	IsInstanceOf (cineware::Int32 id) const
Public Member Functions inherited from NodeData
	NodeData ()
BaseList2D *	GetNode ()
void	SetNode (BaseList2D *ptr)
BaseTag *	GetTag (Int32 id)
BaseTag *	MakeTag (Int32 id)
Public Member Functions inherited from PrivateChunk
	PrivateChunk ()
Bool	ReadChunk (HyperFile *hf, Bool keepin=false, Bool noheader=false)
virtual Bool	IsListHead ()
virtual Int32	GetType () const
virtual Int32	GetInstanceType () const
Bool	ReadObject (HyperFile *hf, Bool readheader)
Bool	WriteObject (HyperFile *hf, Int32 type)
Bool	CopyTo (PrivateChunk *dest, COPYFLAGS flags, AliasTrans *trans)
Bool	GetParameter (Int32 id, GeData &data)
Bool	SetParameter (Int32 id, const GeData &data)
Bool	GetParameter (const DescID &id, GeData &data)
Bool	SetParameter (const DescID &id, const GeData &data)
virtual Int32	GetChunkLevel ()
Public Member Functions inherited from GeTempPublicNode2D< PrivateChunk >
PrivateChunk *	GetNext () const
PrivateChunk *	GetPrev () const
void	InsertBefore (PrivateChunk *n)
void	InsertAfter (PrivateChunk *n)
void	Remove ()

Static Protected Member Functions
static NodeData *	Alloc ()

Private Member Functions
virtual Bool	Init ()
virtual void	Free ()
virtual Bool	SetDParameter (const DescID &id, const GeData &t_data)
virtual Bool	GetDParameter (const DescID &id, GeData &t_data)
virtual Bool	Read (HyperFile *hf, Int32 id, Int32 level)
virtual Bool	Write (HyperFile *hf)
virtual Bool	CopyToX (PrivateChunk *dest, COPYFLAGS flags, AliasTrans *trn)

Friends
class	BaseObject

Constructor/Destructor
	LodObjectData ()
	~LodObjectData ()

Level
Int32	GetCurrentLevel ()
Int32	GetLevelCount ()

Additional Inherited Members
Protected Member Functions inherited from NodeData
virtual Bool	Execute ()
virtual Int32	GetDiskType () const
virtual Bool	TranslateDescID (GeListNode *node, const DescID &id, DescID &res_id, GeListNode *&res_at)
Protected Member Functions inherited from PrivateChunk
virtual Bool	HandleSubChunk (HyperFile *hf, Int32 id, Int32 level)

Detailed Description

Node data class for Cinema 4D's LOD object.

Since

R19

Member Typedef Documentation

SUPER

typedef NodeData SUPER

Constructor & Destructor Documentation

LodObjectData()

LodObjectData

(

)

Default constructor.

~LodObjectData()

~LodObjectData

(

)

Destructor.

Member Function Documentation

IsInstanceOf()

virtual Bool IsInstanceOf ( cineware::Int32  id ) const

virtual

Reimplemented from NodeData.

GetCurrentLevel()

Int32 GetCurrentLevel

(

)

Queries the current LOD level.

Returns

The current LOD level index, or NOTOK in error case.

GetLevelCount()

Int32 GetLevelCount

(

)

Queries the current number of LOD levels.

Returns

The current LOD level count, or NOTOK in error case.

Alloc()

static NodeData* Alloc ( )

staticprotected

Init()

virtual Bool Init ( )

privatevirtual

Called when an instance of a derived node data class needs to be initialized.

Returns

true if successful, otherwise false.

Reimplemented from NodeData.

Free()

virtual void Free ( )

privatevirtual

Reimplemented from NodeData.

SetDParameter()

virtual Bool SetDParameter ( const DescID &  id, const GeData &  t_data  )

privatevirtual

Reimplemented from PrivateChunk.

GetDParameter()

virtual Bool GetDParameter ( const DescID &  id, GeData &  t_data  )

privatevirtual

Reimplemented from PrivateChunk.

Read()

virtual Bool Read ( HyperFile *  hf, Int32  id, Int32  level  )

privatevirtual

Reads the node from a hyper file.

Parameters

[in]	hf	The hyper file to read from. Cineware SDK owns the pointed hyper file.
[in]	id	The ID of the node to read.
[in]	level	The disklevel of the node to read.

Returns

true if successful, otherwise false.

Reimplemented from NodeData.

Write()

virtual Bool Write ( HyperFile *  hf )

privatevirtual

Reimplemented from PrivateChunk.

CopyToX()

virtual Bool CopyToX ( PrivateChunk *  dst, COPYFLAGS  flags, AliasTrans *  trans  )

privatevirtual

Private.

Reimplemented from NodeData.

Friends And Related Function Documentation

BaseObject

friend class BaseObject

friend
