InstanceObjectData Class Reference

#include <c4d_instanceobjectdata.h>

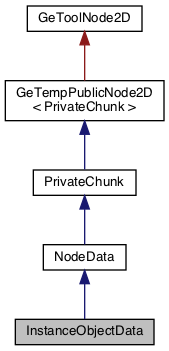

Inheritance diagram for InstanceObjectData:

Public Types
typedef NodeData	SUPER
Public Types inherited from NodeData
typedef PrivateChunk	SUPER

Public Member Functions
virtual Bool	IsInstanceOf (cineware::Int32 id) const
Public Member Functions inherited from NodeData
	NodeData ()
BaseList2D *	GetNode ()
void	SetNode (BaseList2D *ptr)
BaseTag *	GetTag (Int32 id)
BaseTag *	MakeTag (Int32 id)
Public Member Functions inherited from PrivateChunk
	PrivateChunk ()
Bool	ReadChunk (HyperFile *hf, Bool keepin=false, Bool noheader=false)
virtual Bool	IsListHead ()
virtual Int32	GetType () const
virtual Int32	GetInstanceType () const
Bool	ReadObject (HyperFile *hf, Bool readheader)
Bool	WriteObject (HyperFile *hf, Int32 type)
Bool	CopyTo (PrivateChunk *dest, COPYFLAGS flags, AliasTrans *trans)
Bool	GetParameter (Int32 id, GeData &data)
Bool	SetParameter (Int32 id, const GeData &data)
Bool	GetParameter (const DescID &id, GeData &data)
Bool	SetParameter (const DescID &id, const GeData &data)
Public Member Functions inherited from GeTempPublicNode2D< PrivateChunk >
PrivateChunk *	GetNext () const
PrivateChunk *	GetPrev () const
void	InsertBefore (PrivateChunk *n)
void	InsertAfter (PrivateChunk *n)
void	Remove ()

Static Protected Member Functions
static NodeData *	Alloc ()

Private Member Functions
virtual Bool	Init ()
virtual void	Free ()
virtual Bool	SetDParameter (const DescID &id, const GeData &t_data)
virtual Bool	GetDParameter (const DescID &id, GeData &t_data)
virtual Int32	GetChunkLevel ()
virtual Bool	Read (HyperFile *hf, Int32 id, Int32 level)
virtual Bool	Write (HyperFile *hf)
virtual Bool	CopyToX (PrivateChunk *dest, COPYFLAGS flags, AliasTrans *trn)
void	FlushArrays ()

Private Attributes
BaseArray< Matrix >	objectMatrices
BaseArray< Color64 >	objectColors

Friends
class	BaseObject

Multi-instance Reference Object
BaseObject *	GetReferenceObject (BaseDocument *doc)
void	SetReferenceObject (BaseObject *refObj)

Multi-instance Matrix and Instance Count
Bool	IsMultiInstance ()
Bool	SetInstanceMatrices (const BaseArray< Matrix > &matrices)
BaseArray< Matrix > *	GetInstanceMatrices ()
Matrix	GetInstanceMatrix (UInt index) const
UInt	GetInstanceCount ()

Multi-instance Color
Bool	SetInstanceColors (const BaseArray< Color64 > &colors)
BaseArray< Color64 > *	GetInstanceColors ()
Color64	GetInstanceColor (UInt index)

Additional Inherited Members
Protected Member Functions inherited from NodeData
virtual Bool	Execute ()
virtual Int32	GetDiskType () const
virtual Bool	TranslateDescID (GeListNode *node, const DescID &id, DescID &res_id, GeListNode *&res_at)
Protected Member Functions inherited from PrivateChunk
virtual Bool	HandleSubChunk (HyperFile *hf, Int32 id, Int32 level)

Detailed Description

Node data class for Cinema 4D's instance object.

Since

R20

Member Typedef Documentation

SUPER

typedef NodeData SUPER

Member Function Documentation

IsInstanceOf()

virtual Bool IsInstanceOf ( cineware::Int32  id ) const

virtual

Reimplemented from NodeData.

GetReferenceObject()

BaseObject* GetReferenceObject

(

BaseDocument *

doc

)

Return the instanciated object.

Note

Same as accessing the INSTANCEOBJECT_LINK element in the object's data container.

Parameters

[in]

doc

The document the instance object belongs to.

Returns

The reference object. Null if the instance object is unassigned.

SetReferenceObject()

void SetReferenceObject

(

BaseObject *

refObj

)

Sets the instanciated object used for the multiple instances.

Parameters

[in]

refObj

The reference object to set.

IsMultiInstance()

Bool IsMultiInstance

(

)

Checks if the instance object is in multi-instance mode.

Returns

true if in multi-instance mode, otherwise false.

SetInstanceMatrices()

Bool SetInstanceMatrices

(

const BaseArray< Matrix > &

matrices

)

Sets the instance matrices.

Note

The size of matrices determines the instance count.

Parameters

[in]

matrices

The instance matrix array.

Returns

true if successful, otherwise false.

GetInstanceMatrices()

BaseArray<Matrix>* GetInstanceMatrices

(

)

Returns the instance matrices.

Returns

The pointer to the matrix array. Owned by the instance object.

GetInstanceMatrix()

Matrix GetInstanceMatrix

(

UInt

index

)

const

Returns the global matrix of the instance at the specified index.

Parameters

[in]

index

The instance index.

Returns

The instance matrix.

GetInstanceCount()

UInt GetInstanceCount

(

)

Returns the instance count (number of instances and matrices).

Returns

The instance count.

SetInstanceColors()

Bool SetInstanceColors

(

const BaseArray< Color64 > &

colors

)

Sets the instance colors.

Parameters

[in]

colors

The array of instance colors to set.

Returns

true if successful, otherwise false.

GetInstanceColors()

BaseArray<Color64>* GetInstanceColors

(

)

Returns the instance colors.

Note

If the array is null or empty, the default color is used.

Returns

The pointer to the color array. Owned by the instance object.

GetInstanceColor()

Color64 GetInstanceColor

(

UInt

index

)

Returns the color of the instance at the specified index.

Note

If no color is found or index is invalid, the default color is returned.

Parameters

[in]

index

The instance index.

Returns

The instance color.

Alloc()

static NodeData* Alloc ( )

staticprotected

Init()

virtual Bool Init ( )

privatevirtual

Called when an instance of a derived node data class needs to be initialized.

Returns

true if successful, otherwise false.

Reimplemented from NodeData.

Free()

virtual void Free ( )

privatevirtual

Reimplemented from NodeData.

SetDParameter()

virtual Bool SetDParameter ( const DescID &  id, const GeData &  t_data  )

privatevirtual

Reimplemented from PrivateChunk.

GetDParameter()

virtual Bool GetDParameter ( const DescID &  id, GeData &  t_data  )

privatevirtual

Reimplemented from PrivateChunk.

GetChunkLevel()

virtual Int32 GetChunkLevel ( )

privatevirtual

Reimplemented from PrivateChunk.

Read()

virtual Bool Read ( HyperFile *  hf, Int32  id, Int32  level  )

privatevirtual

Reads the node from a hyper file.

Parameters

[in]	hf	The hyper file to read from. Cineware SDK owns the pointed hyper file.
[in]	id	The ID of the node to read.
[in]	level	The disklevel of the node to read.

Returns

true if successful, otherwise false.

Reimplemented from NodeData.

Write()

virtual Bool Write ( HyperFile *  hf )

privatevirtual

Reimplemented from PrivateChunk.

CopyToX()

virtual Bool CopyToX ( PrivateChunk *  dst, COPYFLAGS  flags, AliasTrans *  trans  )

privatevirtual

Private.

Reimplemented from NodeData.

FlushArrays()

void FlushArrays ( )

private

Friends And Related Function Documentation

BaseObject

friend class BaseObject

friend

Member Data Documentation

objectMatrices

BaseArray<Matrix> objectMatrices

private

objectColors

BaseArray<Color64> objectColors

private
