GvRealNodeData Class Reference

#include <gv_node.h>

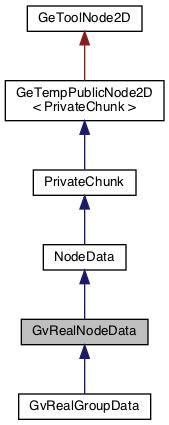

Inheritance diagram for GvRealNodeData:

Public Member Functions
	GvRealNodeData ()
virtual	~GvRealNodeData ()
virtual Bool	Init ()
virtual Bool	Read (HyperFile *hf, Int32 id, Int32 level)
virtual Bool	Write (HyperFile *hf)
virtual Bool	CopyToX (PrivateChunk *dest, COPYFLAGS flags, AliasTrans *trn)
virtual Bool	IsInstanceOf (const GeListNode *node, Int32 type) const
virtual Int32	GetChunkLevel ()
virtual Int32	GetType () const
Bool	CopyData (GvRealNodeData *dest, AliasTrans *trn=nullptr)
Int32	GetGvNodeIndex () const
GvPortArray &	GetInPorts ()
GvPortArray &	GetOutPorts ()
Int32	GetInPortCount () const
Int32	GetOutPortCount () const
GvRealPort *	GetInPort (Int32 n) const
GvRealPort *	GetOutPort (Int32 n) const
GvRealPort *	GetInPortSubID (Int32 id) const
GvRealPort *	GetOutPortSubID (Int32 id) const
GvRealPort *	GetPortSubID (Int32 id) const
GvRealPort *	AddPortIntern (GvPortIO io, Int32 id, GvPortFlags flags, Int32 sub_id, Int32 data_id)
Int32	GetUniquePortID ()
void	SetGvNodeIndex (Int32 t_index)
Public Member Functions inherited from NodeData
virtual Bool	IsInstanceOf (cineware::Int32 id) const
	NodeData ()
BaseList2D *	GetNode ()
void	SetNode (BaseList2D *ptr)
BaseTag *	GetTag (Int32 id)
BaseTag *	MakeTag (Int32 id)
Public Member Functions inherited from PrivateChunk
	PrivateChunk ()
Bool	ReadChunk (HyperFile *hf, Bool keepin=false, Bool noheader=false)
virtual Bool	IsListHead ()
virtual Int32	GetInstanceType () const
Bool	ReadObject (HyperFile *hf, Bool readheader)
Bool	WriteObject (HyperFile *hf, Int32 type)
Bool	CopyTo (PrivateChunk *dest, COPYFLAGS flags, AliasTrans *trans)
virtual Bool	GetDParameter (const DescID &id, GeData &data)
virtual Bool	SetDParameter (const DescID &id, const GeData &data)
Bool	GetParameter (Int32 id, GeData &data)
Bool	SetParameter (Int32 id, const GeData &data)
Bool	GetParameter (const DescID &id, GeData &data)
Bool	SetParameter (const DescID &id, const GeData &data)
Public Member Functions inherited from GeTempPublicNode2D< PrivateChunk >
PrivateChunk *	GetNext () const
PrivateChunk *	GetPrev () const
void	InsertBefore (PrivateChunk *n)
void	InsertAfter (PrivateChunk *n)
void	Remove ()

Static Public Member Functions
static NodeData *	Alloc ()

Public Attributes
Int32	init_pos_x
Int32	init_pos_y
Bool	old_coords

Protected Attributes
GvPortArray	in_ports
GvPortArray	out_ports
Int32	_index
Int32	owner
UInt32	_flags
UInt32	state
UInt32	busymask
UInt32	recursion
Vector	color
Bool	changedColor

Friends
class	GvRealNode
class	GvRealNodeMaster

Additional Inherited Members
Public Types inherited from NodeData
typedef PrivateChunk	SUPER
Protected Member Functions inherited from NodeData
virtual void	Free ()
virtual Bool	Execute ()
virtual Int32	GetDiskType () const
virtual Bool	TranslateDescID (GeListNode *node, const DescID &id, DescID &res_id, GeListNode *&res_at)
Protected Member Functions inherited from PrivateChunk
virtual Bool	HandleSubChunk (HyperFile *hf, Int32 id, Int32 level)

Detailed Description

Since

R20

Constructor & Destructor Documentation

GvRealNodeData()

GvRealNodeData

(

)

~GvRealNodeData()

virtual ~GvRealNodeData ( )

virtual

Member Function Documentation

Init()

virtual Bool Init ( )

virtual

Called when an instance of a derived node data class needs to be initialized.

Returns

true if successful, otherwise false.

Reimplemented from NodeData.

Read()

virtual Bool Read ( HyperFile *  hf, Int32  id, Int32  level  )

virtual

Reads the node from a hyper file.

Parameters

[in]	hf	The hyper file to read from. Cineware SDK owns the pointed hyper file.
[in]	id	The ID of the node to read.
[in]	level	The disklevel of the node to read.

Returns

true if successful, otherwise false.

Reimplemented from NodeData.

Write()

virtual Bool Write ( HyperFile *  hf )

virtual

Reimplemented from PrivateChunk.

CopyToX()

virtual Bool CopyToX ( PrivateChunk *  dst, COPYFLAGS  flags, AliasTrans *  trans  )

virtual

Private.

Reimplemented from NodeData.

IsInstanceOf()

virtual Bool IsInstanceOf ( const GeListNode *  node, Int32  type  ) const

virtual

GetChunkLevel()

virtual Int32 GetChunkLevel ( )

virtual

Reimplemented from PrivateChunk.

Alloc()

static NodeData* Alloc ( )

static

GetType()

virtual Int32 GetType ( ) const

virtual

Reimplemented from PrivateChunk.

Reimplemented in GvRealGroupData.

CopyData()

Bool CopyData	(	GvRealNodeData *	dest,
		AliasTrans *	trn = nullptr
	)

GetGvNodeIndex()

Int32 GetGvNodeIndex

(

)

const

GetInPorts()

GvPortArray& GetInPorts

(

)

GetOutPorts()

GvPortArray& GetOutPorts

(

)

GetInPortCount()

Int32 GetInPortCount

(

)

const

GetOutPortCount()

Int32 GetOutPortCount

(

)

const

GetInPort()

GvRealPort* GetInPort

(

Int32

n

)

const

GetOutPort()

GvRealPort* GetOutPort

(

Int32

n

)

const

GetInPortSubID()

GvRealPort* GetInPortSubID

(

Int32

id

)

const

GetOutPortSubID()

GvRealPort* GetOutPortSubID

(

Int32

id

)

const

GetPortSubID()

GvRealPort* GetPortSubID

(

Int32

id

)

const

AddPortIntern()

GvRealPort* AddPortIntern	(	GvPortIO	io,
		Int32	id,
		GvPortFlags	flags,
		Int32	sub_id,
		Int32	data_id
	)

GetUniquePortID()

Int32 GetUniquePortID

(

)

SetGvNodeIndex()

void SetGvNodeIndex

(

Int32

t_index

)

Friends And Related Function Documentation

GvRealNode

friend class GvRealNode

friend

GvRealNodeMaster

friend class GvRealNodeMaster

friend

Member Data Documentation

in_ports

GvPortArray in_ports

protected

out_ports

GvPortArray out_ports

protected

_index

Int32 _index

protected

owner

Int32 owner

protected

_flags

UInt32 _flags

protected

state

UInt32 state

protected

busymask

UInt32 busymask

protected

recursion

UInt32 recursion

protected

color

Vector color

protected

changedColor

Bool changedColor

protected

init_pos_x

Int32 init_pos_x

init_pos_y

Int32 init_pos_y

old_coords

Bool old_coords
