GvExpressionData Class Reference

#include <c4d_expressotagdata.h>

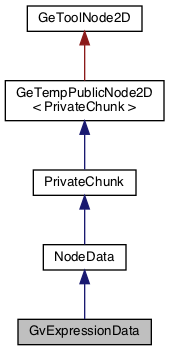

Inheritance diagram for GvExpressionData:

Public Types
typedef NodeData	SUPER
Public Types inherited from NodeData
typedef PrivateChunk	SUPER

Public Member Functions
virtual Bool	IsInstanceOf (cineware::Int32 id) const
Public Member Functions inherited from NodeData
	NodeData ()
BaseList2D *	GetNode ()
void	SetNode (BaseList2D *ptr)
BaseTag *	GetTag (Int32 id)
BaseTag *	MakeTag (Int32 id)
Public Member Functions inherited from PrivateChunk
	PrivateChunk ()
Bool	ReadChunk (HyperFile *hf, Bool keepin=false, Bool noheader=false)
virtual Bool	IsListHead ()
virtual Int32	GetType () const
virtual Int32	GetInstanceType () const
Bool	ReadObject (HyperFile *hf, Bool readheader)
Bool	WriteObject (HyperFile *hf, Int32 type)
Bool	CopyTo (PrivateChunk *dest, COPYFLAGS flags, AliasTrans *trans)
Bool	GetParameter (Int32 id, GeData &data)
Bool	SetParameter (Int32 id, const GeData &data)
Bool	GetParameter (const DescID &id, GeData &data)
Bool	SetParameter (const DescID &id, const GeData &data)
Public Member Functions inherited from GeTempPublicNode2D< PrivateChunk >
PrivateChunk *	GetNext () const
PrivateChunk *	GetPrev () const
void	InsertBefore (PrivateChunk *n)
void	InsertAfter (PrivateChunk *n)
void	Remove ()

Private Member Functions
virtual Int32	GetChunkLevel ()
	GvExpressionData ()
	~GvExpressionData ()
virtual Bool	Init ()
virtual void	Free ()
virtual Bool	GetDParameter (const DescID &id, GeData &t_data)
virtual Bool	SetDParameter (const DescID &id, const GeData &t_data)
virtual Bool	Read (HyperFile *hf, Int32 id, Int32 level)
virtual Bool	Write (HyperFile *hf)
virtual Bool	CopyToX (PrivateChunk *dest, COPYFLAGS flags, AliasTrans *trn)

Private Attributes
GvRealNodeMaster *	master

Alloc
static NodeData *	Alloc ()

Additional Inherited Members
Protected Member Functions inherited from NodeData
virtual Bool	Execute ()
virtual Int32	GetDiskType () const
virtual Bool	TranslateDescID (GeListNode *node, const DescID &id, DescID &res_id, GeListNode *&res_at)
Protected Member Functions inherited from PrivateChunk
virtual Bool	HandleSubChunk (HyperFile *hf, Int32 id, Int32 level)

Detailed Description

Node data class for Cinema 4D's Xpresso tag.

Since

R20

Member Typedef Documentation

SUPER

typedef NodeData SUPER

Constructor & Destructor Documentation

GvExpressionData()

GvExpressionData ( )

private

~GvExpressionData()

~GvExpressionData ( )

private

Member Function Documentation

IsInstanceOf()

virtual Bool IsInstanceOf ( cineware::Int32  id ) const

virtual

Reimplemented from NodeData.

GetChunkLevel()

virtual Int32 GetChunkLevel ( )

privatevirtual

Reimplemented from PrivateChunk.

Init()

virtual Bool Init ( )

privatevirtual

Called when an instance of a derived node data class needs to be initialized.

Returns

true if successful, otherwise false.

Reimplemented from NodeData.

Free()

virtual void Free ( )

privatevirtual

Reimplemented from NodeData.

GetDParameter()

virtual Bool GetDParameter ( const DescID &  id, GeData &  t_data  )

privatevirtual

Reimplemented from PrivateChunk.

SetDParameter()

virtual Bool SetDParameter ( const DescID &  id, const GeData &  t_data  )

privatevirtual

Reimplemented from PrivateChunk.

Read()

virtual Bool Read ( HyperFile *  hf, Int32  id, Int32  level  )

privatevirtual

Reads the node from a hyper file.

Parameters

[in]	hf	The hyper file to read from. Cineware SDK owns the pointed hyper file.
[in]	id	The ID of the node to read.
[in]	level	The disklevel of the node to read.

Returns

true if successful, otherwise false.

Reimplemented from NodeData.

Write()

virtual Bool Write ( HyperFile *  hf )

privatevirtual

Reimplemented from PrivateChunk.

CopyToX()

virtual Bool CopyToX ( PrivateChunk *  dst, COPYFLAGS  flags, AliasTrans *  trans  )

privatevirtual

Private.

Reimplemented from NodeData.

Alloc()

static NodeData* Alloc ( )

static

Allocates a weight tag node data. Destroy the allocated weight tag node data with Free().

Returns

The allocated weight tag node data, or nullptr if the allocation failed.

Member Data Documentation

master

GvRealNodeMaster* master

private
