Public Member Functions | Static Public Member Functions | Protected Attributes | List of all members
DrawPort Class Referenceabstract

#include <c4d_drawport.h>

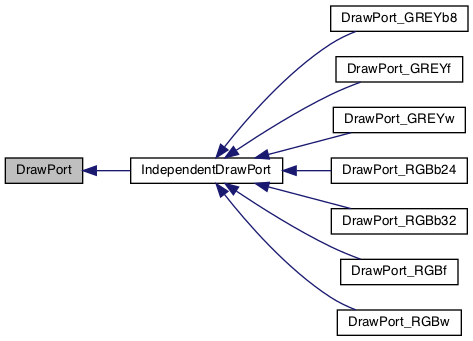

Inheritance diagram for DrawPort:
Inheritance graph
[legend]

Public Member Functions

 DrawPort ()

virtual ~DrawPort ()

void SetBaseBitmap (BaseBitmap *t_parent)

BaseBitmap * GetBaseBitmap ()

const BaseBitmap * GetBaseBitmap () const

DrawPortTypes GetType () const

Int32 GetBw ()

Int32 GetBh ()

Int32 GetBt ()

Int32 GetBpz ()

virtual Bool CloneIt (DrawPort *dest)

virtual void ScaleIt (DrawPort *dest, Int32 hell, Bool sample, Bool highq, Bool colorcorrection)

virtual void Free ()

virtual IMAGERESULT Init (Int32 x, Int32 y)=0

virtual Bool SetPixel (Int32 x, Int32 y, Int32 red, Int32 green, Int32 blue, Int32 alpha)=0

virtual void GetPixel (Int32 x, Int32 y, UInt16 *red, UInt16 *green, UInt16 *blue)=0

virtual Vector32 GetPixelDirect (Int32 x, Int32 y)

virtual Bool SetLineDirect (Int32 y, void *data, Int32 depth)

virtual Bool SetPixelCntX (Int32 x, Int32 y, Int32 cnt, UChar *buffer, Int32 inc, COLORMODE srcmode, PIXELCNT flags)

virtual void GetPixelCntX (Int32 x, Int32 y, Int32 cnt, UChar *buffer, Int32 inc, COLORMODE dstmode, PIXELCNT flags, ColorProfileConvert *conversion)

virtual Bool SetPixelCntP (Int32 x, Int32 y, Int32 cnt, UChar *buffer, Int32 inc, PIXELCNT flags)=0

virtual void GetPixelCntP (Int32 x, Int32 y, Int32 cnt, UChar *buffer, Int32 inc, PIXELCNT flags)=0


Static Public Member Functions

static DrawPort * Alloc (DrawPortTypes type, Int32 BitsPerPixel, void *data)


Protected Attributes

Int32 bw

Int32 bh

Int32 bt

Int Bpz

UChar * Bits

DrawPortTypes type

BaseBitmap * parent


Detailed Description

Private. Internal.

Constructor & Destructor Documentation

◆ DrawPort()

DrawPort ( )

◆ ~DrawPort()

virtual ~DrawPort ( )
virtual

Member Function Documentation

◆ Alloc()

static DrawPort* Alloc ( DrawPortTypes  type,
Int32  BitsPerPixel,
void *  data
)
static

◆ SetBaseBitmap()

void SetBaseBitmap ( BaseBitmap *  t_parent)

◆ GetBaseBitmap() [1/2]

BaseBitmap* GetBaseBitmap ( )

◆ GetBaseBitmap() [2/2]

const BaseBitmap* GetBaseBitmap ( ) const

◆ GetType()

DrawPortTypes GetType ( ) const

◆ GetBw()

Int32 GetBw ( )

◆ GetBh()

Int32 GetBh ( )

◆ GetBt()

Int32 GetBt ( )

◆ GetBpz()

Int32 GetBpz ( )

◆ CloneIt()

virtual Bool CloneIt ( DrawPort *  dest)
virtual

◆ ScaleIt()

virtual void ScaleIt ( DrawPort *  dest,
Int32  hell,
Bool  sample,
Bool  highq,
Bool  colorcorrection
)
virtual

◆ Free()

virtual void Free ( )
virtual

Reimplemented in IndependentDrawPort.

◆ Init()

virtual IMAGERESULT Init ( Int32  x,
Int32  y
)
pure virtual

Implemented in IndependentDrawPort.

◆ SetPixel()

virtual Bool SetPixel ( Int32  x,
Int32  y,
Int32  red,
Int32  green,
Int32  blue,
Int32  alpha
)
pure virtual

Implemented in DrawPort_GREYf, DrawPort_GREYw, DrawPort_GREYb8, DrawPort_RGBf, DrawPort_RGBw, DrawPort_RGBb32, DrawPort_RGBb24, and IndependentDrawPort.

◆ GetPixel()

virtual void GetPixel ( Int32  x,
Int32  y,
UInt16 *  red,
UInt16 *  green,
UInt16 *  blue
)
pure virtual

Implemented in DrawPort_GREYf, DrawPort_GREYw, DrawPort_GREYb8, DrawPort_RGBf, DrawPort_RGBw, DrawPort_RGBb32, DrawPort_RGBb24, and IndependentDrawPort.

◆ GetPixelDirect()

virtual Vector32 GetPixelDirect ( Int32  x,
Int32  y
)
virtual

Reimplemented in DrawPort_GREYf, DrawPort_GREYw, DrawPort_GREYb8, DrawPort_RGBf, DrawPort_RGBw, DrawPort_RGBb32, and DrawPort_RGBb24.

◆ SetLineDirect()

virtual Bool SetLineDirect ( Int32  y,
void *  data,
Int32  depth
)
virtual

◆ SetPixelCntX()

virtual Bool SetPixelCntX ( Int32  x,
Int32  y,
Int32  cnt,
UChar *  buffer,
Int32  inc,
COLORMODE  srcmode,
PIXELCNT  flags
)
virtual

◆ GetPixelCntX()

virtual void GetPixelCntX ( Int32  x,
Int32  y,
Int32  cnt,
UChar *  buffer,
Int32  inc,
COLORMODE  dstmode,
PIXELCNT  flags,
ColorProfileConvert *  conversion
)
virtual

◆ SetPixelCntP()

virtual Bool SetPixelCntP ( Int32  x,
Int32  y,
Int32  cnt,
UChar *  buffer,
Int32  inc,
PIXELCNT  flags
)
pure virtual

Implemented in DrawPort_GREYf, DrawPort_GREYw, DrawPort_GREYb8, DrawPort_RGBf, DrawPort_RGBw, DrawPort_RGBb32, and DrawPort_RGBb24.

◆ GetPixelCntP()

virtual void GetPixelCntP ( Int32  x,
Int32  y,
Int32  cnt,
UChar *  buffer,
Int32  inc,
PIXELCNT  flags
)
pure virtual

Implemented in DrawPort_GREYf, DrawPort_GREYw, DrawPort_GREYb8, DrawPort_RGBf, DrawPort_RGBw, DrawPort_RGBb32, and DrawPort_RGBb24.

Member Data Documentation

◆ bw

Int32 bw
protected

◆ bh

Int32 bh
protected

◆ bt

Int32 bt
protected

◆ Bpz

Int Bpz
protected

◆ Bits

UChar* Bits
protected

◆ type

DrawPortTypes type
protected

◆ parent

BaseBitmap* parent
protected
