#include <blendlayers.h>

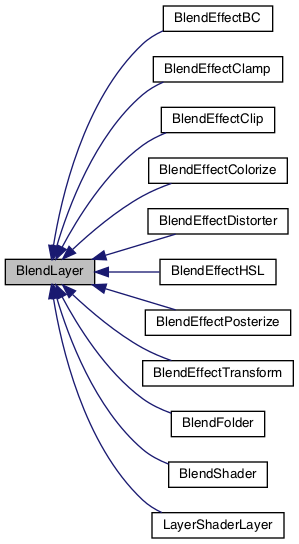

Inheritance diagram for BlendLayer:

[legend]

Public Member Functions
virtual	~BlendLayer ()

virtual String	GetLayerName (BaseDocument *pDoc, Bool bReset=false)=0

virtual Bool	CopyTo (BlendLayer pDest, AliasTrans pTrans)=0

virtual Bool	Read (HyperFile *pFile, Int32 lLevel)=0

virtual Bool	Write (HyperFile *pFile) const =0

virtual Int32	Compare (BlendLayer *pLayer)

virtual Bool	CompareStructure (BlendLayer *pLayer, Bool bCompareNames)

virtual void	GetParameter (Int32 lItem, const DescID &id, GeData &t_data, Int32 &flags)

virtual void	SetParameter (Int32 lItem, const DescID &id, const GeData &t_data, Int32 &flags)

virtual void	ClearShaders (BaseList2D pParent, BaseDocument pDoc)

Bool	IsFolder ()

Bool	IsShader ()

virtual Bool	GetParameter (Int32 lID, GeData &d)

virtual Bool	SetParameter (Int32 lID, const GeData &d)

LayerShaderLayer *	GetNext ()

Bool	GetParameter_ (Int32 lID, GeData &d)

Bool	SetParameter_ (Int32 lID, const GeData &d)

String	GetName (BaseDocument *pDoc)

LayerType	GetType ()

Static Public Member Functions
static void	Free (BlendLayer *&pLayer)

Public Attributes
CBlendLayers *	m_pParent

String	m_strName

LayerType	m_LayerType

Bool	m_bDirty

Bool	m_bIsSelected

Bool	m_bIsActive

Int32	m_lLayerID

Int32	m_lFlags

Int32	m_lRenderFlags

BaseBitmap *	m_pAlphaChannel

Protected Member Functions
	BlendLayer ()

Bool	CopyBasics (BlendLayer *pDest)

Static Protected Member Functions
static Bool	AllocDefaults (BlendLayer *pLayer)

Detailed Description

Base class of the different Layer shader layers. See LayerShaderLayer.

Constructor & Destructor Documentation

◆ ~BlendLayer()

virtual ~BlendLayer ( )

virtual

Default destructor.

◆ BlendLayer()

BlendLayer ( )

protected

Default constructor.

Member Function Documentation

◆ Free()

static void Free ( BlendLayer *& pLayer )

static

Destructs layers allocated with Alloc().

Parameters

[in] pLayer The layer to destruct. If the pointer is nullptr nothing happens. The pointer is assigned nullptr afterwards.

◆ GetLayerName()

virtual String GetLayerName	(	BaseDocument *	pDoc,
		Bool	bReset = `false`
	)

pure virtual

Private.

Implemented in BlendEffectDistorter, BlendEffectTransform, BlendEffectClip, BlendEffectClamp, BlendEffectColorize, BlendEffectPosterize, BlendEffectHSL, BlendEffectBC, BlendShader, and BlendFolder.

◆ CopyTo()

virtual Bool CopyTo	(	BlendLayer *	pDest,
		AliasTrans *	pTrans
	)

pure virtual

Copies all values from the layer to pDest.

Parameters

[in]	pDest	The destination layer. The caller owns the pointed layer.
[in]	pTrans	An alias translator for the operation. Can be nullptr. The caller owns the pointed alias translator.

Returns: true if the layer was copied, otherwise false.

Implemented in BlendEffectDistorter, BlendEffectTransform, BlendEffectClip, BlendEffectClamp, BlendEffectColorize, BlendEffectPosterize, BlendEffectHSL, BlendEffectBC, BlendShader, and BlendFolder.

◆ Read()

virtual Bool Read	(	HyperFile *	pFile,
		Int32	lLevel
	)

pure virtual

Reads the layer from a hyper file.

Parameters

[in]	pFile	The hyper file to read from. The caller owns the pointed hyper file.
[in]	lLevel	The disklevel of the layer to read.

Returns: true if the layer was read, otherwise false.

Implemented in BlendEffectDistorter, BlendEffectTransform, BlendEffectClip, BlendEffectClamp, BlendEffectColorize, BlendEffectPosterize, BlendEffectHSL, BlendEffectBC, BlendShader, and BlendFolder.

◆ Write()

virtual Bool Write ( HyperFile * pFile ) const

pure virtual

Writes the layer to a hyper file.

Parameters

[in] pFile The hyper file to write to. The caller owns the pointed hyper file.

Returns: true if the layer was written, otherwise false.

Implemented in BlendEffectDistorter, BlendEffectTransform, BlendEffectClip, BlendEffectClamp, BlendEffectColorize, BlendEffectPosterize, BlendEffectHSL, BlendEffectBC, BlendShader, and BlendFolder.

◆ Compare()

virtual Int32 Compare ( BlendLayer * pLayer )

virtual

Compares two layers.

Parameters

[in] pLayer The layer to compare with. The caller owns the pointed layer.

Returns: 0 if the layers are identical, otherwise 1.

Reimplemented in BlendEffectDistorter, BlendEffectTransform, BlendEffectClip, BlendEffectClamp, BlendEffectColorize, BlendEffectPosterize, BlendEffectHSL, BlendEffectBC, BlendShader, and BlendFolder.

◆ CompareStructure()

virtual Bool CompareStructure	(	BlendLayer *	pLayer,
		Bool	bCompareNames
	)

virtual

Private.

Reimplemented in BlendEffectColorize, BlendFolder, and BlendShader.

◆ GetParameter() [1/2]

virtual void GetParameter	(	Int32	lItem,
		const DescID &	id,
		GeData &	t_data,
		Int32 &	flags
	)

virtual

Private.

Reimplemented in BlendEffectDistorter, BlendEffectTransform, BlendEffectClip, BlendEffectClamp, BlendEffectColorize, BlendEffectPosterize, BlendEffectHSL, BlendEffectBC, BlendShader, BlendFolder, and LayerShaderLayer.

◆ SetParameter() [1/2]

virtual void SetParameter	(	Int32	lItem,
		const DescID &	id,
		const GeData &	t_data,
		Int32 &	flags
	)

virtual

Private.

Reimplemented in BlendEffectDistorter, BlendEffectTransform, BlendEffectClip, BlendEffectClamp, BlendEffectColorize, BlendEffectPosterize, BlendEffectHSL, BlendEffectBC, BlendShader, BlendFolder, and LayerShaderLayer.

◆ ClearShaders()

virtual void ClearShaders	(	BaseList2D *	pParent,
		BaseDocument *	pDoc
	)

virtual

Private.

Reimplemented in BlendShader, and BlendFolder.

◆ IsFolder()

Bool IsFolder ( )

Checks if the layer is a folder layer.

Returns: true if it is a folder layer, otherwise false.

◆ IsShader()

Bool IsShader ( )

Checks if the layer is a shader layer.

Returns: true if it is a shader layer, otherwise false.

◆ GetParameter() [2/2]

virtual Bool GetParameter	(	Int32	lID,
		GeData &	d
	)

virtual

Gets layer parameters.

Parameters

[in]	lID	The layer parameter ID. For all layers: LAYER_S_PARAM_ALL
[in]	d	Filled with the layer parameter value.

Returns: true if the parameter could be retrieved, otherwise false.

Reimplemented in BlendEffectDistorter, BlendEffectTransform, BlendEffectClip, BlendEffectClamp, BlendEffectColorize, BlendEffectPosterize, BlendEffectHSL, BlendEffectBC, BlendShader, BlendFolder, and LayerShaderLayer.

◆ SetParameter() [2/2]

virtual Bool SetParameter	(	Int32	lID,
		const GeData &	d
	)

virtual

Sets layer parameters.

Parameters

[in]	lID	The layer parameter ID. For all layers: LAYER_S_PARAM_ALL
[in]	d	The layer parameter value.

Returns: true if the parameter could be set, otherwise false.

Reimplemented in BlendEffectDistorter, BlendEffectTransform, BlendEffectClip, BlendEffectClamp, BlendEffectColorize, BlendEffectPosterize, BlendEffectHSL, BlendEffectBC, BlendShader, BlendFolder, and LayerShaderLayer.

◆ GetNext()

LayerShaderLayer* GetNext ( )

Gets the next Layer shader layer.

Returns: The next Layer shader layer. The Layer shader owns the pointed layer.

◆ GetParameter_()

Bool GetParameter_	(	Int32	lID,
		GeData &	d
	)

See also: GetParameter()

◆ SetParameter_()

Bool SetParameter_	(	Int32	lID,
		const GeData &	d
	)

See also: SetParameter()

◆ GetName()

String GetName ( BaseDocument * pDoc )

Gets the name of the layer.

Parameters

[in] pDoc The document where the layer resides. The caller owns the pointed document.

Returns: The name of the layer.

◆ GetType()

LayerType GetType ( )

Gets the layer type.

Returns: The layer type.

◆ CopyBasics()

Bool CopyBasics ( BlendLayer * pDest )

protected

Private.

◆ AllocDefaults()

static Bool AllocDefaults ( BlendLayer * pLayer )

staticprotected

Private.

Member Data Documentation

◆ m_pParent

CBlendLayers* m_pParent

Private.

◆ m_strName

String m_strName

Private.

◆ m_LayerType

LayerType m_LayerType

Private.

◆ m_bDirty

Bool m_bDirty

Private.

◆ m_bIsSelected

Bool m_bIsSelected

Private.

◆ m_bIsActive

Bool m_bIsActive

Private.

◆ m_lLayerID

Int32 m_lLayerID

Private.

◆ m_lFlags

Int32 m_lFlags

Private.

◆ m_lRenderFlags

Int32 m_lRenderFlags

Private.

◆ m_pAlphaChannel

BaseBitmap* m_pAlphaChannel

Private.
