#include <c4d_baseobject.h>

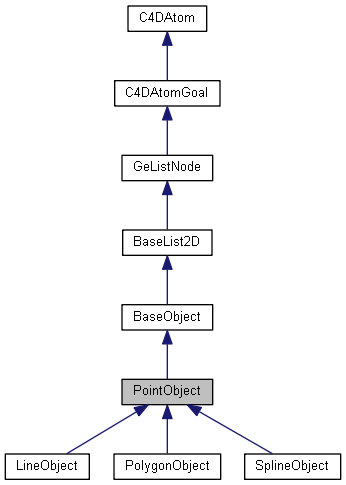

Inheritance diagram for PointObject:

[legend]

Detailed Description

Represents a Point object. Abstract, so instantiate either PolygonObject or SplineObject.

Public Member Functions
BaseSelect *	GetPointS (void)

const BaseSelect *	GetPointS (void) const

BaseSelect *	GetPointH (void)

const BaseSelect *	GetPointH (void) const

const Vector *	GetPointR (void) const

Vector *	GetPointW (void)

Int32	GetPointCount (void) const

Float32 *	CalcVertexMap (BaseObject *modifier)

Bool	ResizeObject (Int32 pcnt)

void	IncreaseBoundingBox (Int32 cnt, Vector *v)

Public Member Functions inherited from BaseObject
BaseObject *	GetNext (void)

BaseObject *	GetPred (void)

BaseObject *	GetUp (void)

BaseObject *	GetDown (void)

BaseObject *	GetDownLast (void)

Vector	GetAbsPos () const

void	SetAbsPos (const Vector &v)

Vector	GetAbsScale () const

void	SetAbsScale (const Vector &v)

Vector	GetAbsRot () const

void	SetAbsRot (const Vector &v)

Vector	GetFrozenPos () const

void	SetFrozenPos (const Vector &v)

Vector	GetFrozenScale () const

void	SetFrozenScale (const Vector &v)

Vector	GetFrozenRot () const

void	SetFrozenRot (const Vector &v)

Vector	GetRelPos () const

void	SetRelPos (const Vector &v)

Vector	GetRelScale () const

void	SetRelScale (const Vector &v)

Vector	GetRelRot () const

void	SetRelRot (const Vector &v)

const Matrix &	GetMl (void) const

void	SetMl (const Matrix &m)

Matrix	GetFrozenMln () const

Matrix	GetRelMln () const

Matrix	GetRelMl () const

void	SetRelMl (const Matrix &m)

Matrix	GetMg () const

void	SetMg (const Matrix &m)

Matrix	GetMln () const

Matrix	GetMgn () const

Matrix	GetUpMg () const

void	CopyMatrixTo (BaseObject *dst)

Vector	GetMp (void)

Vector	GetRad (void)

Int32	GetEditorMode (void) const

Int32	GetEditorModeH (void) const

void	SetEditorMode (Int32 mode)

Int32	GetRenderMode (void) const

Int32	GetRenderModeH (void) const

void	SetRenderMode (Int32 mode)

Bool	GetDeformMode (void) const

void	SetDeformMode (Bool mode)

Int32	GetRealDeformMode (void) const

void	SetRealDeformMode (Int32 mode)

Int32	GetUniqueIP (void)

void	SetUniqueIP (Int32 ip)

BaseTag *	GetFirstTag (void)

BaseTag *	GetLastTag (void)

BaseTag *	GetTag (Int32 type, Int32 nr=0)

const maxon::BaseArray< BaseTag * > *	GetTagsOfType (Int32 type) const

const maxon::BaseArray< BaseTag * > *	GetTagsWithFlags (Int32 flags) const

const void *	GetTagDataR (Int32 type, Int32 nr=0) const

void *	GetTagDataW (Int32 type, Int32 nr=0)

Int32	GetTagDataCount (Int32 type) const

BaseTag *	MakeTag (Int32 type, BaseTag *pred=nullptr)

VariableTag *	MakeVariableTag (Int32 type, Int32 count, BaseTag *pred=nullptr)

void	InsertTag (BaseTag tp, BaseTag pred=nullptr)

void	KillTag (Int32 type, Int32 nr=0)

Bool	CopyTagsTo (BaseObject dest, Int32 visible, Int32 variable, Int32 hierarchical, AliasTrans trans)

BaseObject *	GetCache (HierarchyHelp *hh=nullptr)

BaseObject *	GetDeformCache (void)

LineObject *	GetIsoparm (void)

void	SetIsoparm (LineObject *l)

BaseObject *	GetCacheParent (void) const

BaseObject *	GetCacheTopParent (void) const

Bool	SetPhong (Bool on, Bool anglelimit, Float angle)

Bool	IsDirty (DIRTYFLAGS flags)

void	SetDirty (DIRTYFLAGS flags)

Bool	CheckCache (HierarchyHelp *hh)

void	Touch (void)

void	GetColorProperties (ObjectColorProperties *prop)

void	SetColorProperties (ObjectColorProperties *prop)

const Matrix &	GetModelingAxis (BaseDocument *doc)

void	SetModelingAxis (const Matrix &m)

BaseObject *	GetAndCheckHierarchyClone (HierarchyHelp hh, BaseObject op, HIERARCHYCLONEFLAGS flags, Bool dirty, AliasTrans trans, Int childCount, maxon::BaseArray< BaseObject * > *children)

BaseObject *	GetAndCheckHierarchyClone (HierarchyHelp hh, BaseObject op, HIERARCHYCLONEFLAGS flags, Bool dirty, AliasTrans trans, Bool allchildren)

BaseObject *	GetHierarchyClone (HierarchyHelp hh, BaseObject op, HIERARCHYCLONEFLAGS flags, Bool dirty, AliasTrans trans)

BaseObject *	GetHierarchyClone (HierarchyHelp hh, BaseObject op, HIERARCHYCLONEFLAGS flags, Bool dirty, AliasTrans trans, DIRTYFLAGS dirtyflags)

void	NewDependenceList (void)

Bool	CompareDependenceList (void)

void	AddDependence (HierarchyHelp hh, BaseObject op)

void	AddDependence (HierarchyHelp hh, BaseObject op, DIRTYFLAGS dirtyflags)

void	TouchDependenceList (void)

void	SetRotationOrder (ROTATIONORDER order)

ROTATIONORDER	GetRotationOrder (void) const

void	SetQuaternionRotationMode (Bool active, Bool bUndo)

Bool	IsQuaternionRotationMode (void)

Bool	SynchronizeVectorTrackKeys (Int32 vectorTrackID, Bool bUndo, BaseTime startRange=BaseTime(-108000, 1), BaseTime endRange=BaseTime(108000, 1))

Bool	FindBestEulerAngle (Int32 rotationTrackID, Bool bAdjustTangent, Bool bUndo, BaseTime startRange=BaseTime(-108000, 1), BaseTime endRange=BaseTime(108000, 1))

Bool	EvaluateSynchronizedRotation (const BaseTime &time, ANIMATEFLAGS flags, Vector *resultRotation=nullptr)

Bool	GetVectorTracks (const DescID &id, CTrack &xfound, CTrack &yfound, CTrack *&zfound)

Bool	GetVectorCurves (CCurve curveToSearch, CCurve &xfound, CCurve &yfound, CCurve &zfound)

UInt64	GetGUID ()

Int32	GetHighlightHandle (BaseDraw *bd)

SplineObject *	GetRealSpline (void)

Float	GetVisibility (Float parent)

Bool	SearchHierarchy (BaseObject *op)

BaseObject *	GetOrigin (Bool safe)

void	SetOrigin (BaseObject *origin)

BaseObject *	GetTopOrigin (Bool parent, Bool safe)

BaseObject *	GetEditObject (BaseObject **psds, DISPLAYEDITSTATE state, Bool safetey=true)

void	RemoveFromCache (void)

DRAWRESULT	ObjDraw (DRAWPASS drawpass, BaseDraw bd, BaseDrawHelp bh)

Public Member Functions inherited from BaseList2D
const Char *	GetViewportRenderId (VIEWPORT_RENDER_ID typeId) const

BaseList2D *	GetNext ()

BaseList2D *	GetPred ()

void	SetBit (Int32 mask)

Bool	GetBit (Int32 mask) const

void	DelBit (Int32 mask)

void	ToggleBit (Int32 mask)

Int32	GetAllBits () const

void	SetAllBits (Int32 bits)

void	SetBitEx (Int32 mask, Int32 flags)

BaseContainer	GetData ()

void	SetData (const BaseContainer &bc, Bool add=true)

const BaseContainer *	GetDataInstance () const

BaseContainer *	GetDataInstance ()

const BaseContainer &	GetDataInstanceRef () const

BaseContainer &	GetDataInstanceRef ()

String	GetName () const

void	SetName (const maxon::String &name)

String	GetBubbleHelp ()

Bool	TransferGoal (BaseList2D *dst, Bool undolink)

Bool	TransferMarker (BaseList2D *dst) const

Bool	Scale (Float scale)

Bool	Edit ()

void	GetIcon (IconData *dat)

GeListHead *	GetNLARoot ()

BaseList2D *	AnimationLayerRemap (BaseObject **layer=nullptr)

String	GetTypeName ()

BaseList2D *	GetMain () const

void	InsertTrackSorted (CTrack *track)

Bool	AddEventNotification (BaseList2D bl, NOTIFY_EVENT eventid, NOTIFY_EVENT_FLAG flags, const BaseContainer data)

Bool	RemoveEventNotification (BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	FindEventNotification (BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	SetDescIDState (const DescID &id, DESCIDSTATE descidstate)

DESCIDSTATE	GetDescIDState (const DescID &id, Bool tolerant) const

GeListHead *	GetOverrideRoot ()

BaseOverride *	GetFirstOverride ()

GeListHead *	GetShaderRepositoryRoot ()

GeListHead *	GetHiddenShaderRoot ()

maxon::NimbusForwardRef	GetNimbusRef (const maxon::Id &spaceId) const

maxon::Result< maxon::NimbusForwardRef >	PrivateGetOrCreateNimbusRef (const maxon::Id &spaceId)

void	RemoveNimbusRef (const maxon::Id &spaceId)

maxon::Result< maxon::HashMap< maxon::Id, maxon::NimbusForwardRef > >	GetAllNimbusRefs () const

Bool	IsNodeBased () const

void	GetMarkerStampEx (UInt32 l1, UInt32 l2)

const GeMarker &	GetMarker () const

void	SetMarker (const GeMarker &m)

Bool	AddUniqueID (Int32 appid, const Char *const mem, Int bytes)

Bool	FindUniqueID (Int32 appid, const Char *&mem, Int &bytes) const

Int32	GetUniqueIDCount () const

Bool	GetUniqueIDIndex (Int32 idx, Int32 &id, const Char *&mem, Int &bytes) const

Bool	SetAnimatedParameter (CTrack *track, const DescID &id, const GeData &t_data1, const GeData &t_data2, Float mix, DESCFLAGS_SET flags)

Bool	GetAnimatedParameter (const DescID &id, GeData &t_data1, GeData &t_data2, Float &mix, DESCFLAGS_GET flags)

BaseShader *	GetFirstShader () const

void	InsertShader (BaseShader shader, BaseShader pred=nullptr)

void	ClearKeyframeSelection ()

Bool	FindKeyframeSelection (const DescID &id)

Bool	SetKeyframeSelection (const DescID &id, Bool selection)

Bool	KeyframeSelectionContent ()

LayerObject *	GetLayerObject (BaseDocument *doc)

Bool	SetLayerObject (LayerObject *layer)

const LayerData *	GetLayerData (BaseDocument *doc, Bool rawdata=false)

Bool	SetLayerData (BaseDocument *doc, const LayerData &data)

GeListHead *	GetCTrackRoot ()

CTrack *	GetFirstCTrack ()

CTrack *	FindCTrack (const DescID &id)

Public Member Functions inherited from GeListNode
GeListNode *	GetNext ()

GeListNode *	GetPred ()

GeListNode *	GetDown ()

GeListNode *	GetUp ()

GeListNode *	GetDownLast ()

void	InsertBefore (GeListNode *bl)

void	InsertAfter (GeListNode *bl)

void	InsertUnder (GeListNode *bl)

void	InsertUnderLast (GeListNode *bl)

void	Remove ()

GeListHead *	GetListHead ()

Int32	GetNodeID (Int32 index=0) const

template<typename CAST >
const CAST *	GetNodeData (Int32 index=0) const

template<typename CAST >
CAST *	GetNodeData (Int32 index=0)

void	SetCustomData (GeListNode *node)

GeListNode *	GetCustomData ()

BaseDocument *	GetDocument ()

Int32	GetBranchInfo (BranchInfo *info, Int32 max, GETBRANCHINFO flags)

Bool	IsDocumentRelated ()

Int32	GetInfo () const

Bool	GetNBit (NBIT bit) const

UInt32	GetNBitMask (Int32 index) const

Bool	ChangeNBit (NBIT bit, NBITCONTROL bitmode)

Public Member Functions inherited from C4DAtom
Int32	GetType () const

Int32	GetRealType () const

Int32	GetDiskType () const

Bool	IsInstanceOf (Int32 id) const

Int32	GetClassification () const

Bool	Message (Int32 type, void *data=nullptr)

Bool	MultiMessage (MULTIMSG_ROUTE flags, Int32 type, void *data)

C4DAtom *	GetClone (COPYFLAGS flags, AliasTrans *trn)

Bool	CopyTo (C4DAtom dst, COPYFLAGS flags, AliasTrans trn)

Bool	Read (HyperFile *hf, Int32 id, Int32 level)

Bool	Write (HyperFile *hf)

Bool	ReadObject (HyperFile *hf, Bool readheader)

Bool	WriteObject (HyperFile *hf)

Bool	GetDescription (Description *description, DESCFLAGS_DESC flags)

Bool	GetParameter (const DescID &id, GeData &t_data, DESCFLAGS_GET flags)

Bool	SetParameter (const DescID &id, const GeData &t_data, DESCFLAGS_SET flags)

DynamicDescription *	GetDynamicDescription ()

Bool	GetEnabling (const DescID &id, const GeData &t_data, DESCFLAGS_ENABLE flags, const BaseContainer *itemdesc)

Bool	TranslateDescID (const DescID &id, DescID &res_id, C4DAtom *&res_at)

UInt32	GetDirty (DIRTYFLAGS flags) const

void	SetDirty (DIRTYFLAGS flags)

UInt32	GetHDirty (HDIRTYFLAGS mask) const

void	SetHDirty (HDIRTYFLAGS mask)

Private Member Functions
	PointObject ()

	~PointObject ()

Additional Inherited Members
Static Public Member Functions inherited from BaseObject
static BaseObject *	Alloc (Int32 type)

static void	Free (BaseObject *&bl)

Static Public Member Functions inherited from BaseList2D
static BaseList2D *	Alloc (Int32 type)

static void	Free (BaseList2D *&bl)

Static Public Attributes inherited from BaseList2D
static const Int32	SETBIT_FLAG_NODIRTY

static const Int32	SETBIT_FLAG_REMOVE

Constructor & Destructor Documentation

◆ PointObject()

PointObject ( )

private

◆ ~PointObject()

~PointObject ( )

private

Member Function Documentation

◆ GetPointS() [1/2]

BaseSelect* GetPointS ( void )

Gets the selected points.

Returns: The selected points. The point object owns the pointed base select.

◆ GetPointS() [2/2]

const BaseSelect* GetPointS ( void ) const

Gets the selected points.

Returns: The selected points. The point object owns the pointed base select.

◆ GetPointH() [1/2]

BaseSelect* GetPointH ( void )

Gets the hidden points.

Returns: The hidden points. The point object owns the pointed base select.

◆ GetPointH() [2/2]

const BaseSelect* GetPointH ( void ) const

Gets the hidden points.

Returns: The hidden points. The point object owns the pointed base select.

◆ GetPointR()

const Vector* GetPointR ( void ) const

Gets the start of the read-only points array.

Note: While this function may sound trivial and cheap, internally it is not. For performance reasons, it is not recommended to use this function inside a loop or inside a loop condition.

Returns: The address of the read-only points array. The point object owns the pointed points array.

◆ GetPointW()

Vector* GetPointW ( void )

Gets the start of the writable points array.

Note: While this function may sound trivial and cheap, internally it is not. For performance reasons, it is not recommended to use this function inside a loop or inside a loop condition.

Returns: The address of the writable points array. The point object owns the pointed points array.

◆ GetPointCount()

Int32 GetPointCount ( void ) const

Gets the number of points in the object.

Note: While this function may sound trivial and cheap, internally it is not. For performance reasons, it is not recommended to use this function inside a loop or inside a loop condition.

Returns: The point count in the points array.

◆ CalcVertexMap()

Float32* CalcVertexMap ( BaseObject * modifier )

Gets an array of vertex weights.

Warning: The returned array must be freed afterwards with DeleteMem()

Parameters

[in] modifier The modifier object. The caller owns the pointed modifier.

Returns: The address of the weights array, or nullptr. The caller owns the pointed array.

◆ ResizeObject()

Bool ResizeObject ( Int32 pcnt )

Changes the number of points in the object.

Parameters

[in] pcnt The new number of points.

Returns: true if the number of points was changed successfully, otherwise false.

◆ IncreaseBoundingBox()

void IncreaseBoundingBox	(	Int32	cnt,
		Vector *	v
	)

Increases the bounding box of the object without making the object dirty.
Adds the vectors from v[0] to v[cnt-1] to the bounding box of the object.

Parameters

[in]	cnt	The vector count in array v.
[in]	v	The Vector array. The caller owns the pointed array.

Detailed Description

Public Member Functions

Private Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ PointObject()

◆ ~PointObject()

Member Function Documentation

◆ GetPointS() [1/2]

◆ GetPointS() [2/2]

◆ GetPointH() [1/2]

◆ GetPointH() [2/2]

◆ GetPointR()

◆ GetPointW()

◆ GetPointCount()

◆ CalcVertexMap()

◆ ResizeObject()

◆ IncreaseBoundingBox()
