Requirements

Plugin development on macOS is only supported with Apple Xcode. The supported versions are:

Cinema 4D R23 SDK : Xcode 11.3 (or Xcode 12 for Universal Binaries)
Cinema 4D S22 SDK : Xcode 11.1
Cinema 4D R21 SDK : Xcode 10.3.1
Cinema 4D R20 SDK : Xcode 9
Cinema 4D R19 SDK : Xcode 8
Cinema 4D R18 SDK : Xcode 7
Cinema 4D R17 SDK : Xcode 6.0.1
Cinema 4D R16 SDK : Xcode 5.0.2
Cinema 4D R15 SDK : Xcode 4.6.3
Cinema 4D R14 SDK : Xcode 4.3.2
Cinema 4D R13 SDK : Xcode 3.2.6

(*) It is recommended to enable the legacy build system under "File" / "Project Settings" / "Section Shared Project Settings/Build System" / "Legacy Build System"

Environment

No special configuration of the development environment is necessary.

Best Practice

macOS Specific Code

macOS specific code can be guarded with the macro MAXON_TARGET_MACOS:

#ifdef MAXON_TARGET_MACOS

#endif

Universal Binaries

Since Cinema 4D R23 Service Pack 1, it's possible to build plugins as Universal Binaries to run them both on Intel-based and ARM-based hardware.

To build Universal Binaries the following development environment is required:

macOS Catalina 10.15.6+ or macOS Big Sur 11.x
Xcode 12.2+

Aside from regenerating the project using the Project Tool, if the plugin's code is fully relying on Cinema 4D APIs, no changes are needed and rebuilding the project will suffice to generate universal binaries running on both platforms.

In case one of the two architectures is not required you can deactivate it by:

commenting out the architecture not desired in <R23 SP1 SDK>/frameworks/settings/compiler.xcconfig and rebuild, or
for each framework/module enter (1) the Build Settings, set (2) the Architecture to the proper desired one (x86_64 or arm64) and deactivate (3) Build Active Architecture Only.

3rd-party Libraries Support

If your plugin makes use of 3rd-party libraries, it's recommended to port the library on Apple Silicon - as recommended here - before attempting to build the whole Cinema 4D plugin to streamline the porting process.

Running Plugins

It is possible to start Cinema 4D from Xcode to run and debug a plugin:

In the plugin project scheme set "Run"->"Run" "Info"->"Executable" to the location of a Cinema 4D executable.
Under "Arguments" add and set the command line argument g_additionalModulePath to make sure that this Cinema 4D executable will find and load the plugin.

Debugging

The Console displays messages printed with DiagnosticOutput(). See Debug and Output Functions.

For general information on debugging see Debugging.

Automating Processes

The execution of the Project Tool can easily be automated using bash scripts.

This bash script executes the Project Tool on the given location of the SDK and starts Xcode to open the solution file:

# build SDK

# run project tool
/Volumes/development/projecttool/kernel_app.app/Contents/MacOS/kernel_app g_updateproject=/Volumes/development/sdk_extracted

# open xcode
open -a "/Applications/Xcode 9.app/Contents/MacOS/Xcode" /Volumes/development/sdk_extracted/plugins/project/plugins.xcodeproj

This bash script starts Cinema 4D with the location of the plugins:

# run C4D

open -a "/Volumes/development/cinema_4d/CINEMA 4D.app/Contents/MacOS/CINEMA 4D" --args -g_additionalModulePath=/Volumes/development/sdk_extracted/plugins

Additionally one can set the command line argument g_runUnitTests to automatically execute custom unit tests.

Cinema 4D can be informed on the type of license model to use - which can be helpful in certain automated tasks - by using:

g_licenseServerRLM="[servername]:[port]" to specify the RLM license server, or
g_licenseServerURL="[http(s)://[ip address]:[port]" to specify the Maxon license server, or
g_licenseUsername and g_licensePassword to specify the authentication credentials on https://id.maxon.net.

DYLIBs

DYLIBs needed by a plugin can be placed in myplugin\res\libs\osx.

Deployment

The final plugin build for deployment should be created using the "Release" build target.

Notarization

Since macOS Catalina 10.15, all Mac software distributed outside the Mac App Store must be notarized by Apple in order to run by default.

The notarization process beside involving Mac applications, also applies to plugins that are supposed to run in notarized applications.

The notarization process is different depending on the type of file to be notarized (an app or a plugin) or on the final archiving strategy used to deploy the plugin. The notary service accepts disk images (UDIF format), signed flat installer packages, and ZIP archives.

Requirements:

Apple Developer ID
XCode 10.1+
Internet connection
specific password for the notary tool

Preliminary steps

Notarization requires Xcode 10 or later. Building a new app for notarization requires macOS 10.13.6 or later.

Apple's notary service requires you to adopt the following protections:

enable code-signing for all of the executables you distribute;
enable the Hardened Runtime capability for your app and command line targets, as described in Enable hardened runtime;
use a Developer ID application, kernel extension, or installer certificate for your code-signing signature;
include a secure timestamp with your code-signing signature;
don’t include the com.apple.security.get-task-allow entitlement with the value set to any variation of true - if your software hosts third-party plug-ins and needs this entitlement to debug the plug-in in the context of a host executable, see Avoid the Get-Task-Allow Entitlement - ;
link against the macOS 10.9 or later SDK.

Apple Developer Program

Before the Apple notary service process a binary, it's mandatory to have the binary signed with a valid Apple Developer ID certificate. In case of signing applications or plugins signing the binary requires a Developer ID Application certificate. Such a certificate can be obtained once enrolled to the Apple Developer Program either as individual or as an organization.

The Apple Developer Program is not free and an yearly fee is due to get full membership and generate the Developer ID signing certificates. See Apple Developer Program for further details.

Note: It's important that the Apple ID used to sign-in in the Apple Developer Program has the two-factor authentication turned on. This authentication mechanism can allow the user to create application password which are used to invoke the command line executable responsible to execute the notarization procedure. This application password is later on referred as YourAppPassword.; At least one Apple ID registered to the Apple Developer Program should be used in Xcode and listed among the available Accounts

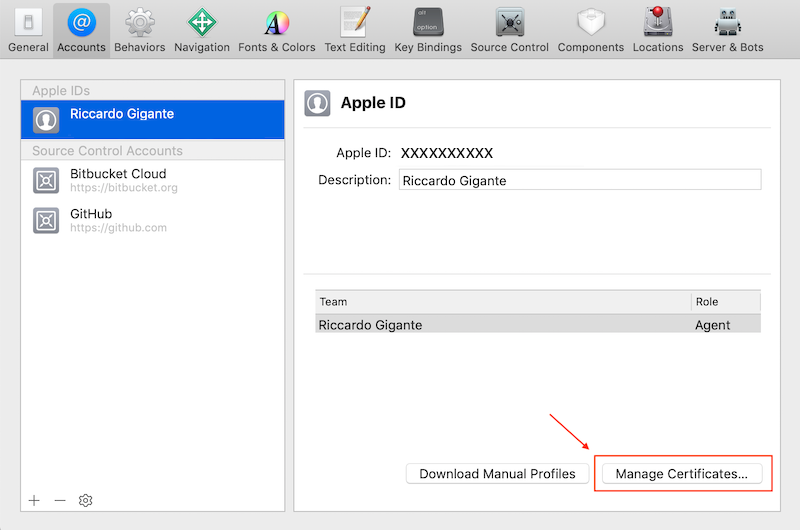

Upon adding an Apple ID owning developer credentials you can add a certificate by clicking on Manage Certificates

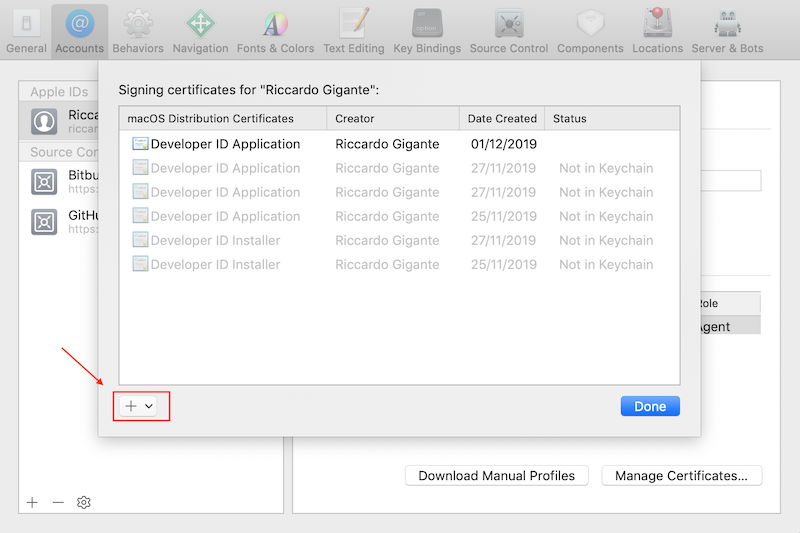

the clicking on +

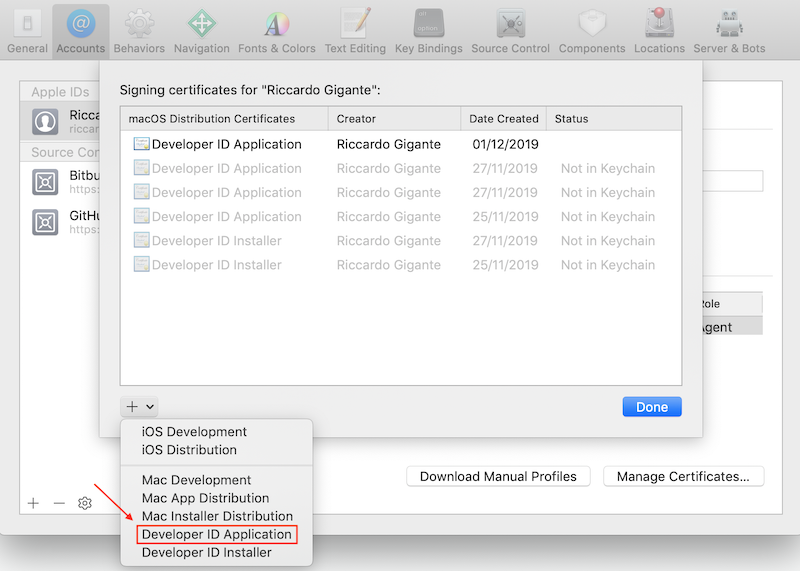

and finally selecting Developer ID Application

Code signing in Xcode

Signing a binary in Xcode is required to successfully complete the notarization process as described in Preliminary steps.

To prepare a project to undergo the notarization process the signing options needs to be specified for the project responsible to generate the binary to be notarized.

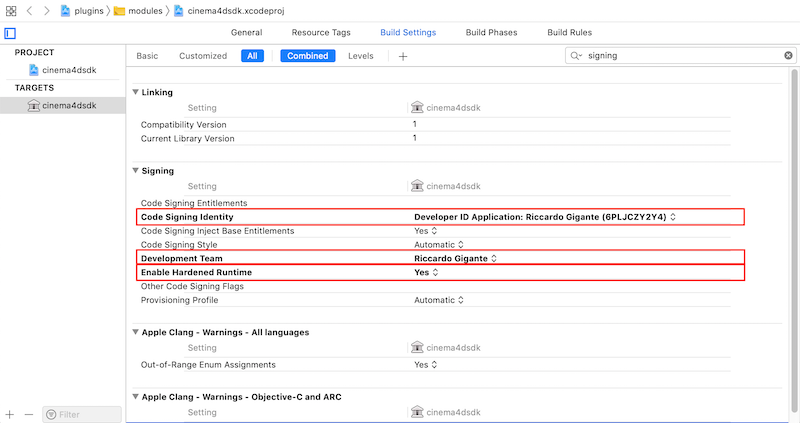

Given such a project, select the Targets settings and filter for the string "Signing"

change the values for the following parameters:

Code Signing Identity
Development Team
Enable Hardened Runtime

Upon settings up the signing parameters a Release binary of the plugin must be generated by clicking on Product -> Build For -> Profiling .

ZIP-contained plugin notarization

After the creation of the release binary, a ZIP archive should be created containing the plugin and all the other needed files. Considering the case of the cinema4dsdk plugin, upon moving the cinema4dsdk.xlib and the res folder in a proper folder, to create a zip archive of the files, from a Terminal window, execute:

% cd <parent folder of cinema4dsdk>

% /usr/bin/ditto -c -k --keepParent "<YourPluginFolder>" "<YourZipPluginArchive>"

Later on in the process it's requested to provide the value for the ASC-provider:to retrieve the list of allowed providers, from a Terminal window, execute:

% xcrun altool --list-providers -u <YourAppleID> -p <YourAppPassword>

and, if successfully executed, the tool should return

ProviderName        ProviderShortname WWDRTeamID
------------------- ----------------- ----------
<your account name> XXXXXXXXXX        XXXXXXXXXX

To submit the zip-archive to Apple to complete the notarization process, from a Terminal window, execute:

% xcrun altool --notarize-app --primary-bundle-id <YourBundleID> --username <YourAppleID> --password <YourAppPassword> --asc-provider <YourASCProvider> --file <YourZipPluginArchive>

and, if successfully executed, the tool should return

No errors uploading '<YourZipPluginArchive>'.

RequestUUID = <YourRequestUUID>

Note: The RequestUUID represents the notarization request unique identifier and must be used when further details are queried from Apple about the state of the process.

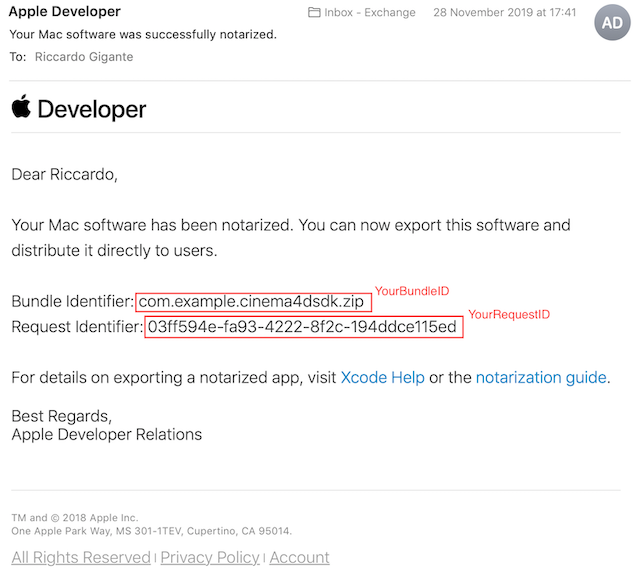

Within a certain amount of time, Apple Notary Service notifies the user about the notarization process being finished by sending an email to the address bound to the registered Apple ID.

Finally it's possible at anytime to check the notarization queue executing

% xcrun altool --notarization-history 0 -u <YourAppleID> -p <YourAppPassword>

and, if successfully executed, the tool should return something like

Notarization History - page 0

Date                      RequestUUID                          Status  Status Code Status Message
------------------------- ------------------------------------ ------- ----------- ----------------
2019-11-28 16:39:40 +0000 <YourRequestUUID>                    success 0           Package Approved

Next page value: 1574959180000

Note: Upon the package is approved, it can be safely deployed to customers, since, from that moment on, macOS can be acknowledged by Apple to be allowed to run the binary(-ies).

Warning: The notarization process must be repeated everytime the binaries in the archive are changed.
