NetworkUdpSenderInterface Class Reference

#include <network_ip_udp.h>

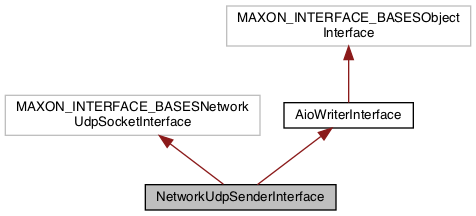

Inheritance diagram for NetworkUdpSenderInterface:

Detailed Description

An asynchronous UDP sender.

Public Types
using	SendCompletionHandler = NetworkUdpChannelInterface::SendCompletionHandler

Public Member Functions
MAXON_METHOD Result< void >	Send (const AioStatusRef &status, AioBuffer data, const NetworkIpAddrPort &destAddress, SendCompletionHandler handler=NetworkUdpChannelInterface::DefaultSendCompletionHandler)
MAXON_METHOD Result< void >	Send (AioBuffer data, const NetworkIpAddrPort &destAddress, SendCompletionHandler handler=NetworkUdpChannelInterface::DefaultSendCompletionHandler)
MAXON_METHOD AioServiceRef	GetIoService () const
MAXON_METHOD JobQueueRef	GetJobQueue () const

Private Member Functions
	MAXON_INTERFACE (NetworkUdpSenderInterface, MAXON_REFERENCE_NORMAL, "net.maxon.interface.networkudpsender")
Private Member Functions inherited from AioWriterInterface
MAXON_METHOD Result< void >	NotifyForWrite (SocketT sockfd, Result< void > result)

Member Typedef Documentation

SendCompletionHandler

using SendCompletionHandler = NetworkUdpChannelInterface::SendCompletionHandler

Member Function Documentation

MAXON_INTERFACE()

MAXON_INTERFACE ( NetworkUdpSenderInterface  , MAXON_REFERENCE_NORMAL  , "net.maxon.interface.networkudpsender"    )

private

Send() [1/2]

MAXON_METHOD Result<void> Send	(	const AioStatusRef &	status,
		AioBuffer	data,
		const NetworkIpAddrPort &	destAddress,
		SendCompletionHandler	handler = NetworkUdpChannelInterface::DefaultSendCompletionHandler
	)

Enqueues an asynchronous send request. As soon as data has been sent, the given handler delegate is called. A status instance can be used to synchronously wait on the operation and check its success.

Parameters

[in]	status	Status monitor for the operation.
[in]	data	Buffer containing data to be sent.
[in]	destAddress	Destination address.
[in]	handler	Handler delegate.

Returns

True if the request has been enqueued, error otherwise.

Send() [2/2]

MAXON_METHOD Result<void> Send	(	AioBuffer	data,
		const NetworkIpAddrPort &	destAddress,
		SendCompletionHandler	handler = NetworkUdpChannelInterface::DefaultSendCompletionHandler
	)

Equivalent to Send(AioStatusRef(), data, destAddress, handler).

GetIoService()

MAXON_METHOD AioServiceRef GetIoService

(

)

const

Returns the I/O service that processes I/O operations of this instance.

GetJobQueue()

MAXON_METHOD JobQueueRef GetJobQueue

(

)

const

Returns the job queue that runs completion handlers of this instance.
