#include <locked_resource_map.h>

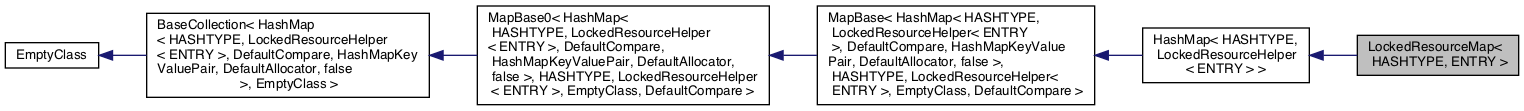

Inheritance diagram for LockedResourceMap< HASHTYPE, ENTRY >:

[legend]

Detailed Description

template<typename HASHTYPE, typename ENTRY>
class maxon::LockedResourceMap< HASHTYPE, ENTRY >

LockedResourceMap simplifies the creation, calculation or load of cpu expensive resources from different threads. E.g. If the program want to load images from different threads but want to keep it only once in memory this class manages all locking and threading using ConditionVariables for ideal performance with minimum locking. A callback must be provided in the CreateOrGetEntry function to load/calculate the value when the key is created the first time.

Example:

LockedResourceMap<Url, ImageLayerRef> g_lockedResource;
Url url = ...;

ImageLayerRef image = g_lockedResource.CreateOrGetEntryCopy(url,
  [](const Url& url, ImageLayerRef* createResource) -> Result<void>
  {
    iferr_scope;
    ImageLayerRef img = ImageLayerClasses::RASTER().Create() iferr_return;
    img.Load(url) iferr_return;
    *createResource = std::move(img);
    return OK;
  }) iferr_return;
... use 'image' for whatever ...

THREADSAFE.

Template Parameters

HASHTYPE	Hash key type of the class. Each entry is stored under this unique hash key.
ENTRY	Value to store under the key.

Public Member Functions
	LockedResourceMap ()

	LockedResourceMap (LockedResourceMap &&src)

	MAXON_OPERATOR_MOVE_ASSIGNMENT (LockedResourceMap)

Result< ENTRY & >	CreateOrGetEntry (const HASHTYPE &hashKey, const Delegate< Result< void >(const HASHTYPE &hashKey, ENTRY *createResource)> &createdCallback)

Result< ENTRY >	CreateOrGetEntryCopy (const HASHTYPE &hashKey, const Delegate< Result< void >(const HASHTYPE &hashKey, ENTRY *createResource)> &createdCallback)

Spinlock &	GetLock ()

Bool	IsChanged () const

void	SetChanged (Bool changed)

Public Member Functions inherited from HashMap< HASHTYPE, LockedResourceHelper< ENTRY > >
	HashMap (Float loadFactor=Float(false ? 0 :0.65))

	HashMap (const DefaultAllocator &alloc, Float loadFactor=Float(false ? 0 :0.65))

	HashMap (HashMap &&src)

	~HashMap ()

	MAXON_OPERATOR_MOVE_ASSIGNMENT (HashMap)

ResultMem	SetCapacityHint (Int capacity, COLLECTION_RESIZE_FLAGS resizeFlags=COLLECTION_RESIZE_FLAGS::ON_GROW_RESERVE_CAPACITY)

ResultMem	ResizeTable (Int capacity)

void	Reset ()

void	Flush ()

Int	GetCount () const

Int	GetTableSize () const

Int	GetMemorySize () const

Int	GetNonEmptyBucketCount () const

Entry *	GetNonEmptyBucket (Int i)

const Entry *	GetNonEmptyBucket (Int i) const

Int	GetOperationCountForSearch () const

SFINAEHelper< Bool, typename MAP::IsHashMap >::type	IsEqualImpl (const MAP &other, COMPARE &&cmp, OverloadRank1) const

Entry *	Find (const KEY &key)

const Entry *	Find (const KEY &key) const

LockedResourceHelper< ENTRY > *	FindValue (const KEY &key)

const LockedResourceHelper< ENTRY > *	FindValue (const KEY &key) const

Result< Entry * >	InsertCtor (KEY &&key, C &&constructor, Bool &created=BoolLValue())

ResultRef< Entry >	InsertEntry (const HASHTYPE &key, Bool &created=BoolLValue())

ResultRef< Entry >	InsertEntry (HASHTYPE &&key, Bool &created=BoolLValue())

ResultRef< Entry >	InsertEntry (KEY &&key, Bool &created=BoolLValue())

ResultRef< LockedResourceHelper< ENTRY > >	InsertKey (const HASHTYPE &key, Bool &created=BoolLValue())

ResultRef< LockedResourceHelper< ENTRY > >	InsertKey (HASHTYPE &&key, Bool &created=BoolLValue())

ResultRef< LockedResourceHelper< ENTRY > >	InsertKey (KEY &&key, Bool &created=BoolLValue())

Result< Entry * >	InsertLambda (KEY &&key, LAMBDA &&lambda)

ResultRef< Entry >	Insert (KEY &&key, const LockedResourceHelper< ENTRY > &value, Bool &created=BoolLValue())

ResultRef< Entry >	Insert (KEY &&key, LockedResourceHelper< ENTRY > &&value, Bool &created=BoolLValue())

ResultRef< Entry >	InsertMultiEntry (KEY &&key)

ResultMem	InsertMultiEntry (Entry *e, UInt hash)

ResultOk< void >	Erase (const Entry *entry, Bool deleteEntry=true)

ResultOk< void >	Erase (Entry *entry, Bool deleteEntry=true)

ResultOk< void >	Erase (const Entry &entry, Bool deleteEntry=true)

ResultOk< void >	Erase (Entry &entry, Bool deleteEntry=true)

ResultOk< Bool >	Erase (const KEY &key)

IteratorTemplate< SUPER >	Erase (const IteratorTemplate< SUPER > &it, Bool deleteEntry=true)

void	DeleteEntry (const Entry *e)

Result< void >	IntersectImpl (SET &&set, OverloadRank0)

SFINAEHelper< Result< void >, typename std::remove_reference< S >::type::MapType >::type	AppendAllImpl (S &&src, COLLECTION_RESIZE_FLAGS resizeFlags, Bool overwrite, OverloadRank1)

MultiEntryIterator< false >	FindAll (const HASHTYPE &key)

MultiEntryIterator< true >	FindAll (const HASHTYPE &key) const

KeyIterator	GetKeys ()

ConstKeyIterator	GetKeys () const

ValueIterator	GetValues ()

ConstValueIterator	GetValues () const

Iterator	Begin ()

ConstIterator	Begin () const

Iterator	End ()

ConstIterator	End () const

Iterator	GetIterator (const Entry *e)

ConstIterator	GetIterator (const Entry *e) const

SFINAEHelper< String, LockedResourceHelper< ENTRY > >::type	ToString (const FormatStatement *formatStatement) const

const Entry *	FindEntryImpl (UInt hash, const KEY &key) const

Entry *	FindEntryImpl (UInt hash, const KEY &key)

Public Member Functions inherited from MapBase< HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false >, HASHTYPE, LockedResourceHelper< ENTRY >, EmptyClass, DefaultCompare >
MAXON_ATTRIBUTE_FORCE_INLINE	MapBase (ARGS &&... args)

MapImpl< HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false > & >	ToMap ()

MapImpl< const HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false > & >	ToMap () const

MAXON_ATTRIBUTE_FORCE_INLINE	operator MapImpl< HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false > & > ()

MAXON_ATTRIBUTE_FORCE_INLINE	operator MapImpl< const HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false > & > () const

Public Member Functions inherited from MapBase0< HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false >, HASHTYPE, LockedResourceHelper< ENTRY >, EmptyClass, DefaultCompare >
MAXON_ATTRIBUTE_FORCE_INLINE	MapBase0 (ARGS &&... args)

MAXON_ATTRIBUTE_FORCE_INLINE Bool	Contains (typename ByValueParam< HASHTYPE >::type key) const

MAXON_ATTRIBUTE_FORCE_INLINE SFINAEHelper< Bool, typename PAIR::KeyType >::type	Contains (const PAIR &pair) const

ResultRef< LockedResourceHelper< ENTRY > >	Append (const HASHTYPE &key)

SFINAEHelper< ResultRef< LockedResourceHelper< ENTRY > >, typename PAIR::KeyType >::type	Append (const PAIR &pair)

Result< void >	Add (COLLECTION2 &&other, COLLECTION_RESIZE_FLAGS resizeFlags=COLLECTION_RESIZE_FLAGS::ON_GROW_RESERVE_CAPACITY)

Result< void >	AppendAll (COLLECTION2 &&other, COLLECTION_RESIZE_FLAGS resizeFlags=COLLECTION_RESIZE_FLAGS::ON_GROW_RESERVE_CAPACITY)

Result< void >	AppendAllInverse (COLLECTION2 &&other)

Bool	ContainsAllImpl (COLLECTION2 &&other, OverloadRank0) const

Result< void >	SubtractImpl (COLLECTION2 &&other, OverloadRank0)

Bool	IsEqualImpl (const COLLECTION2 &other, COMPARE &&cmp, OverloadRank0) const

UInt	GetHashCode () const

Public Member Functions inherited from BaseCollection< HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false >, EmptyClass >
MAXON_ATTRIBUTE_FORCE_INLINE	BaseCollection (ARGS &&... args)

MAXON_ATTRIBUTE_FORCE_INLINE std::enable_if< maxon::IsCollection< COLLECTION2 >::value, Bool >::type	operator== (const COLLECTION2 &other) const

MAXON_ATTRIBUTE_FORCE_INLINE std::enable_if< maxon::IsCollection< COLLECTION2 >::value, Bool >::type	operator!= (const COLLECTION2 &other) const

MAXON_ATTRIBUTE_FORCE_INLINE std::enable_if< maxon::IsCollection< COLLECTION2 >::value &&!std::is_same< typename std::decay< COMPARE >::type, EQUALITY >::value, Bool >::type	IsEqual (const COLLECTION2 &other, COMPARE &&cmp=COMPARE()) const

MAXON_ATTRIBUTE_FORCE_INLINE Result< void >	AppendAll (COLLECTION2 &&other, COLLECTION_RESIZE_FLAGS resizeFlags=COLLECTION_RESIZE_FLAGS::ON_GROW_RESERVE_CAPACITY)

MAXON_ATTRIBUTE_FORCE_INLINE Result< void >	CopyFrom (COLLECTION2 &&other, COLLECTION_RESIZE_FLAGS resizeFlags=COLLECTION_RESIZE_FLAGS::FIT_TO_SIZE)

MAXON_ATTRIBUTE_FORCE_INLINE Result< void >	Subtract (COLLECTION2 &&other)

MAXON_ATTRIBUTE_FORCE_INLINE Result< void >	Intersect (const COLLECTION2 &other)

Bool	Intersects (const COLLECTION2 &other) const

MAXON_ATTRIBUTE_FORCE_INLINE Result< void >	CopyFromImpl (COLLECTION2 &&other, COLLECTION_RESIZE_FLAGS resizeFlags, OverloadRank0)

Result< void >	AppendAllImpl (COLLECTION2 &&other, COLLECTION_RESIZE_FLAGS resizeFlags, Bool overwrite, OverloadRank0)

Result< void >	IntersectImpl (COLLECTION2 &&other, OverloadRank0)

MAXON_ATTRIBUTE_FORCE_INLINE Bool	IsEmpty () const

MAXON_ATTRIBUTE_FORCE_INLINE Bool	IsPopulated () const

String	ToString (const FormatStatement *formatStatement) const

MAXON_ATTRIBUTE_FORCE_INLINE Bool	ContainsAll (COLLECTION2 &&other) const

Bool	ContainsAllImpl (COLLECTION2 &&other, OverloadRank0) const

Private Member Functions
	MAXON_DISALLOW_COPY_AND_ASSIGN (LockedResourceMap)

Private Attributes
Spinlock	_hashLock

Bool	_changed

Additional Inherited Members
Public Types inherited from HashMap< HASHTYPE, LockedResourceHelper< ENTRY > >
using	Super = MapBase< HashMap, HASHTYPE, LockedResourceHelper< ENTRY >, EmptyClass, DefaultCompare >

using	HashType = DefaultCompare

using	IsHashMap = std::true_type

using	Iterator = IteratorTemplate< EntryIteratorBase >

using	ConstIterator = ConstIteratorTemplate< EntryIteratorBase >

using	KeyIterator = IteratorTemplate< KeyIteratorBase >

using	ConstKeyIterator = ConstIteratorTemplate< KeyIteratorBase >

using	ValueIterator = IteratorTemplate< ValueIteratorBase >

using	ConstValueIterator = ConstIteratorTemplate< ValueIteratorBase >

Public Types inherited from MapBase0< HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false >, HASHTYPE, LockedResourceHelper< ENTRY >, EmptyClass, DefaultCompare >
using	MapType = HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false >

using	Super = BaseCollection< HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false >, EmptyClass >

using	KeyType = HASHTYPE

using	ValueType = LockedResourceHelper< ENTRY >

Public Types inherited from BaseCollection< HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false >, EmptyClass >
using	IsCollection = std::true_type

Static Public Member Functions inherited from MapBase0< HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false >, HASHTYPE, LockedResourceHelper< ENTRY >, EmptyClass, DefaultCompare >
static const HASHTYPE &	GetMapKey (const HASHTYPE &key)

static const HASHTYPE &	GetMapKey (const PAIR &pair)

Static Public Attributes inherited from MapBase0< HashMap< HASHTYPE, LockedResourceHelper< ENTRY >, DefaultCompare, HashMapKeyValuePair, DefaultAllocator, false >, HASHTYPE, LockedResourceHelper< ENTRY >, EmptyClass, DefaultCompare >
static const COLLECTION_KIND	KIND

Protected Member Functions inherited from HashMap< HASHTYPE, LockedResourceHelper< ENTRY > >
Bool	ResizeTableImpl (Int length)

Entry *	AddEntryImpl (Entry e, Entry prev, Bool &created, Bool multi, void *)

Entry *	AddEntryImpl (Entry e, Entry prev, Bool &created, Bool multi, Char *)

	MAXON_DISALLOW_COPY_AND_ASSIGN (HashMap)

const Char *	GetSignature (void *) const

const Char *	GetSignature (Char *) const

Static Protected Member Functions inherited from HashMap< HASHTYPE, LockedResourceHelper< ENTRY > >
static Entry *	LoadRelaxed (AtomicPtr< Entry > &e)

static Entry *	LoadRelaxed (Entry *e)

static Entry *	LoadAcquire (AtomicPtr< Entry > &e)

static Entry *	LoadAcquire (Entry *e)

static void	StoreRelaxed (AtomicPtr< Entry > &e, Entry *newValue)

static void	StoreRelaxed (Entry &e, Entry newValue)

static Bool	TryCompareAndSwap (AtomicPtr< Entry > &e, Entry newValue, Entry compare)

static Bool	TryCompareAndSwap (Entry &e, Entry newValue, Entry *compare)

Protected Attributes inherited from HashMap< HASHTYPE, LockedResourceHelper< ENTRY > >
DefaultAllocator	_allocator

Bucket *	_table

Int	_tableLengthM1

Bucket **	_nonemptyBuckets

Int	_nonemptyBucketCount

Int	_size

Int	_resizeThreshold

const Float	_loadFactor

Constructor & Destructor Documentation

◆ LockedResourceMap() [1/2]

LockedResourceMap ( )

◆ LockedResourceMap() [2/2]

LockedResourceMap ( LockedResourceMap< HASHTYPE, ENTRY > && src )

Member Function Documentation

◆ MAXON_DISALLOW_COPY_AND_ASSIGN()

MAXON_DISALLOW_COPY_AND_ASSIGN ( LockedResourceMap< HASHTYPE, ENTRY > )

private

◆ MAXON_OPERATOR_MOVE_ASSIGNMENT()

MAXON_OPERATOR_MOVE_ASSIGNMENT ( LockedResourceMap< HASHTYPE, ENTRY > )

◆ CreateOrGetEntry()

Result<ENTRY&> CreateOrGetEntry	(	const HASHTYPE &	hashKey,
		const Delegate< Result< void >(const HASHTYPE &hashKey, ENTRY *createResource)> &	createdCallback
	)

Creates the value if the key is not created yet or gets the value for the given hash key.

Parameters

[in]	hashKey	Key under which a resource should be created and returned.
[in]	createdCallback	If the key is accessed the first time this callback will be called. The calculation/loading is lock free. All other threads that ask for the same resource in the meanwhile will put on hold using a ConditionVariable.

Returns: Returns the reference to the entry for the given hashKey. The map is still locked. You must call GetLock().Unlock() as soon as you don't need access to the element anymore. Keep the lock as short as possible. The best way is to copy the data you need and unlock it. In case of error the hash map lock is already released.

◆ CreateOrGetEntryCopy()

Result<ENTRY> CreateOrGetEntryCopy	(	const HASHTYPE &	hashKey,
		const Delegate< Result< void >(const HASHTYPE &hashKey, ENTRY *createResource)> &	createdCallback
	)

Creates the value if the key is not created yet or gets a copy of the value for the given hash key. This function is ideal to use with reference counted objects (e.g. ImageLayerRef, ObjectRef).

Parameters

[in]	hashKey	Key under which a resource should be created and returned.
[in]	createdCallback	If the key is accessed the first time this callback will be called. The calculation/loading is lock free. All other threads that ask for the same resource in the meanwhile will put on hold using a ConditionVariable.

Returns: Returns a copy of the entry for the given hashKey. The map is NOT locked after calling this function.

◆ GetLock()

Spinlock& GetLock ( )

◆ IsChanged()

Bool IsChanged ( ) const

◆ SetChanged()

void SetChanged ( Bool changed )

Member Data Documentation

◆ _hashLock

Spinlock _hashLock

private

◆ _changed

Bool _changed

private
