ImageBaseInterface Class Reference

#include <gfx_image.h>

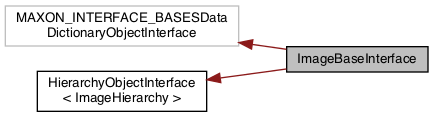

Inheritance diagram for ImageBaseInterface:

Detailed Description

Base class of all image classes. E.g. ImageLayerInterface, ImageTextureInterface inherits all this functions. This base class is able to handle layers in hierarchical order.

Public Member Functions
MAXON_METHOD Result< void >	InitBase (Int width, Int height, const PixelFormat &pixelFormat, IMAGEPROPERTIES::ITYPE type)
MAXON_METHOD Result< void >	AddChildren (IMAGEHIERARCHY hierarchy, const ImageBaseRef &newChildren, const ImageBaseRef &insertBefore)
MAXON_METHOD Int	GetWidth () const
MAXON_METHOD Int	GetHeight () const
MAXON_METHOD Int	GetChannelCount () const
MAXON_METHOD PixelFormat	GetPixelFormat () const
MAXON_METHOD Result< GetPixelHandlerStruct >	GetPixelHandler (const PixelFormat &dstFormat, const ChannelOffsets &channelOffsets, const ColorProfile &dstColorProfile, GETPIXELHANDLERFLAGS flags, const LayerSetInterface *layerSet) const
MAXON_METHOD Result< SetPixelHandlerStruct >	SetPixelHandler (const PixelFormat &srcFormat, const ChannelOffsets &channelOffsets, const ColorProfile &srcColorProfile, SETPIXELHANDLERFLAGS flags)
MAXON_METHOD Result< void >	GetComponent (Int component, const ImagePos &pos, Pix *data, Int inc, GETPIXELFLAGS flags) const
MAXON_METHOD Result< void >	SetComponent (Int component, const ImagePos &pos, const Pix *data, Int inc, SETPIXELFLAGS flags)
MAXON_METHOD Result< ImageBaseRef >	CreateSubImagePart (const DrawRectInt &rect) const
	MAXON_OBSERVABLE (void, ObservableRegionChanged,(const ObserverObjectRef &owner, const UpdateRegion &region), ObservableCombinerRunAllComponent)

Private Member Functions
	MAXON_INTERFACE (ImageBaseInterface, MAXON_REFERENCE_NORMAL, "net.maxon.image.interface.imagebase")
Private Member Functions inherited from HierarchyObjectInterface< ImageHierarchy >
MAXON_METHOD Result< void >	InsertBefore (const typename HIERARCHY::template Sibling< Interface >::type &nextSibling)
MAXON_METHOD Result< void >	InsertAfter (const typename HIERARCHY::template Sibling< Interface >::type &prevSibling)
MAXON_METHOD Result< void >	InsertAsFirstChildOf (const typename HIERARCHY::template Parent< Interface >::type &parent, const ConstDataPtr &branchId=ConstDataPtr())
MAXON_METHOD Result< void >	InsertAsLastChildOf (const typename HIERARCHY::template Parent< Interface >::type &parent, const ConstDataPtr &branchId=ConstDataPtr())
MAXON_METHOD Result< void >	InsertAsChildAt (const typename HIERARCHY::template Parent< Interface >::type &parent, Int position, const ConstDataPtr &branchId=ConstDataPtr())
MAXON_METHOD Result< void >	InsertChildAsFirst (const typename HIERARCHY::template Child< Interface >::type &child, const ConstDataPtr &branchId=ConstDataPtr())
MAXON_METHOD Result< void >	InsertChildAsLast (const typename HIERARCHY::template Child< Interface >::type &child, const ConstDataPtr &branchId=ConstDataPtr())
MAXON_METHOD Result< void >	InsertChildAt (const typename HIERARCHY::template Child< Interface >::type &child, Int position, const ConstDataPtr &branchId=ConstDataPtr())
MAXON_METHOD Result< void >	InsertChildrenAsFirst (const Block< const typename HIERARCHY::template Child< Interface >::type > &children, const ConstDataPtr &branchId=ConstDataPtr())
MAXON_METHOD Result< void >	InsertChildrenAsLast (const Block< const typename HIERARCHY::template Child< Interface >::type > &children, const ConstDataPtr &branchId=ConstDataPtr())
MAXON_METHOD Result< void >	InsertChildrenAt (const Block< const typename HIERARCHY::template Child< Interface >::type > &children, Int position, const ConstDataPtr &branchId=ConstDataPtr())
MAXON_METHOD Result< void >	Replace (const typename HIERARCHY::template Sibling< Interface >::type &newObject)
MAXON_METHOD HierarchyObjectRef	Remove ()
MAXON_METHOD HIERARCHY::template Child< Interface >::type	RemoveChildren (const ConstDataPtr &branchId=ConstDataPtr())
MAXON_METHOD void	RemoveAllChildren ()
MAXON_METHOD Result< Data >	GetOwner () const
MAXON_METHOD HIERARCHY::template Child< Interface >::type	GetFirstChild (const ConstDataPtr &branchId=ConstDataPtr()) const
MAXON_METHOD HIERARCHY::template Child< Interface >::type	GetLastChild (const ConstDataPtr &branchId=ConstDataPtr()) const
MAXON_METHOD HIERARCHY::template Child< Interface >::type	GetChildAt (Int position, const ConstDataPtr &branchId=ConstDataPtr()) const
MAXON_METHOD Result< BaseArray< typename HIERARCHY::template Child< Interface >::type > >	GetChildren (const ConstDataPtr &branchId=ConstDataPtr()) const
MAXON_METHOD Result< BaseArray< ConstDataPtr > >	GetBranches () const
MAXON_METHOD HIERARCHY::template Parent< Interface >::type	GetParent () const
MAXON_METHOD HIERARCHY::template Sibling< Interface >::type	GetNext () const
MAXON_METHOD HIERARCHY::template Sibling< Interface >::type	GetPrev () const
MAXON_METHOD void	ParentChanged (Bool removed)
	MAXON_OBSERVABLE (Result< void >, ObservableHierarchyInsert,(const HierarchyObjectRef<> &sender, const HierarchyObjectRef<> &object), ObservableCombinerRunAllComponent)
	MAXON_OBSERVABLE (Result< void >, ObservableHierarchyRemove,(const HierarchyObjectRef<> &sender, const HierarchyObjectRef<> &object), ObservableCombinerRunAllComponent)

Member Function Documentation

MAXON_INTERFACE()

MAXON_INTERFACE ( ImageBaseInterface  , MAXON_REFERENCE_NORMAL  , "net.maxon.image.interface.imagebase"    )

private

InitBase()

MAXON_METHOD Result<void> InitBase	(	Int	width,
		Int	height,
		const PixelFormat &	pixelFormat,
		IMAGEPROPERTIES::ITYPE	type
	)

Initializes the bitmap with a given size/height. The bitmap content is cleared with 0 bytes.

Parameters

[in]	width	Image width.
[in]	height	Image height.
[in]	pixelFormat	Image PixelFormat.
[in]	type	Image type set into IMAGEPROPERTIES::TYPE. You can query this with image.Get(IMAGEPROPERTIES::TYPE).

Returns

OK on success.

AddChildren()

MAXON_METHOD Result<void> AddChildren	(	IMAGEHIERARCHY	hierarchy,
		const ImageBaseRef &	newChildren,
		const ImageBaseRef &	insertBefore
	)

Parameters

[in]	hierarchy	Defines the hierarchy to which the children belongs to.
[in]	newChildren	New children to add under this object.
[in]	insertBefore	Insert the children before this object. nullptr will append the object at the end.

Returns

OK on success.

GetWidth()

MAXON_METHOD Int GetWidth

(

)

const

Returns the width of the bitmap.

GetHeight()

MAXON_METHOD Int GetHeight

(

)

const

Returns the height of the bitmap.

GetChannelCount()

MAXON_METHOD Int GetChannelCount

(

)

const

Returns the channel count of the bitmap.

GetPixelFormat()

MAXON_METHOD PixelFormat GetPixelFormat

(

)

const

Returns the pixel format connected to this bitmap.

GetPixelHandler()

MAXON_METHOD Result<GetPixelHandlerStruct> GetPixelHandler	(	const PixelFormat &	dstFormat,
		const ChannelOffsets &	channelOffsets,
		const ColorProfile &	dstColorProfile,
		GETPIXELHANDLERFLAGS	flags,
		const LayerSetInterface *	layerSet
	)		const

To access pixel data a GetPixelHandlerStruct is needed. This optimizes the access to the pixel data see GetPixelHandlerStruct.

Parameters

[in]	dstFormat	Destination pixel format that should be read with this pixel handler.
[in]	channelOffsets	Destination channel offsets in bits.
[in]	dstColorProfile	Optional parameter which is only necessary if the color spaces of the given pixel formats doesn't match. In that case the conversion will be performed using the correct color conversion.
[in]	flags	Flags for the GetPixel operation.
[in]	layerSet	Optional LayerSet or nullptr.

Returns

A valid GetPixelHandlerStruct struct if successful.

SetPixelHandler()

MAXON_METHOD Result<SetPixelHandlerStruct> SetPixelHandler	(	const PixelFormat &	srcFormat,
		const ChannelOffsets &	channelOffsets,
		const ColorProfile &	srcColorProfile,
		SETPIXELHANDLERFLAGS	flags
	)

To access pixel data a SetPixelHandlerStruct is needed. This optimizes the access to the pixel data see SetPixelHandlerStruct.

Parameters

[in]	srcFormat	Source pixel format that should be written with this pixel handler.
[in]	channelOffsets	Source channel offsets in bits.
[in]	srcColorProfile	Optional parameter which is only necessary if the color spaces of the given pixel formats doesn't match. In that case the conversion will be performed using the correct color conversion.
[in]	flags	Flags for the SetPixel operation.

Returns

A valid SetPixelHandlerStruct struct if successful.

GetComponent()

MAXON_METHOD Result<void> GetComponent	(	Int	component,
		const ImagePos &	pos,
		Pix *	data,
		Int	inc,
		GETPIXELFLAGS	flags
	)		const

Access single components of the image.

Parameters

[in]	component	Index of the component.
[in]	pos	ImagePos of the data to read.
[in]	data	Destination buffer.
[in]	inc	Distance between 2 pixels in the destination buffer.
[in]	flags	Flags to control the read operation.

Returns

OK on success.

SetComponent()

MAXON_METHOD Result<void> SetComponent	(	Int	component,
		const ImagePos &	pos,
		const Pix *	data,
		Int	inc,
		SETPIXELFLAGS	flags
	)

Access single components of the image.

Parameters

[in]	component	Index of the component.
[in]	pos	ImagePos of the data to write.
[in]	data	Source buffer.
[in]	inc	Distance between 2 pixels in the source buffer.
[in]	flags	Flags to control the write operation.

Returns

OK on success.

CreateSubImagePart()

MAXON_METHOD Result<ImageBaseRef> CreateSubImagePart

(

const DrawRectInt &

rect

)

const

Create a new ImageBaseRef as a sub image of the given image with the given rectangle. The image will not be copied! It generates only a reference to the original image with the rectangle set to the portion of the image.

Parameters

[in]

rect

Part of the image.

Returns

New Image as part of the given image.

MAXON_OBSERVABLE()

MAXON_OBSERVABLE	(	void	,
		ObservableRegionChanged	,
		(const ObserverObjectRef &owner, const UpdateRegion &region)	,
		ObservableCombinerRunAllComponent
	)

Observable: This observable is fired as soon as anybody modifies the pixel data of this object.
