#include <c4d_particles.h>

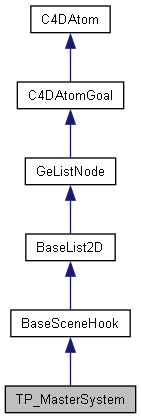

Inheritance diagram for TP_MasterSystem:

[legend]

Detailed Description

The master system is the main Thinking Particles engine class. There can only be one master system per document. This is the easiest way to get it:

TP_MasterSystem* GetTpMasterSystem(BaseDocument* doc)
{
  if (!doc)
    return nullptr;

  BaseSceneHook* hook = doc->FindSceneHook(ID_THINKINGPARTICLES);
  if (!hook || hook->GetType() != ID_THINKINGPARTICLES)
    return nullptr;

  return static_cast<TP_MasterSystem*>(hook);
}

Private Member Functions
	TP_MasterSystem ()

	~TP_MasterSystem ()

Particle/Particles
Int32	AllocParticle ()

Int32	AllocParticles (Int32 num, Int32 *ids)

void	FreeParticle (Int32 pid)

void	FreeAllParticles ()

Int32	NumParticles () const

Particle Group
TP_PGroup *	AllocParticleGroup ()

void	FreeParticleGroup (TP_PGroup *&group)

Bool	SetPGroupHierarchy (TP_PGroup parent, TP_PGroup group, TP_InsertMode mode)

Int32	GetParticleGroups (TP_PGroup ingroup, TP_PGroupArray gtab, TP_GetPGroupMode mode, Bool subgroups=true)

Int32	GetParticleGroups (const TP_PGroup ingroup, maxon::BaseArray< const TP_PGroup > *gtab, TP_GetPGroupMode mode, Bool subgroups=true) const

Int32	GetGroupParticleCount (TP_PGroup *ingroup, Bool subgroups=true)

BaseObject *	GetVirtualObjects (TP_PGroup ingroup, Bool inRender=true, Bool subgroups=true, const HierarchyHelp hh=nullptr)

BaseContainer *	GetGroupInfo (TP_PGroup *group)

TP_PGroup *	GetGroupFromInfo (BaseContainer *info)

Bool	UpdateGroup (TP_PGroup *group, const BaseTime &timeDelta)

Particle Information/Bits
Bool	Alive (Int32 pid) const

Bool	IsBorn (Int32 pid) const

Bool	IsDie (Int32 pid) const

Bool	EntersGroup (Int32 pid) const

TP_PGroup *	Group (Int32 pid)

Vector	Position (Int32 pid) const

Vector	Velocity (Int32 pid) const

Float	Mass (Int32 pid) const

TP_Spin	Spin (Int32 pid) const

Float	Size (Int32 pid) const

Vector	Scale (Int32 pid) const

BaseTime	Age (Int32 pid) const

BaseTime	Life (Int32 pid) const

Matrix	Alignment (Int32 pid) const

Int32	Randomseed (Int32 pid) const

TP_PShapePtr	Shape (Int32 pid) const

Matrix	Transform (Int32 pid) const

UInt16	Flags (Int32 pid) const

Float	DTFactor (Int32 pid) const

Set Particle Information/Bits
void	SetPosition (Int32 pid, const Vector &p)

void	SetVelocity (Int32 pid, const Vector &p)

void	SetMass (Int32 pid, Float mass)

void	SetSpin (Int32 pid, const TP_Spin &spin)

void	SetAge (Int32 pid, const BaseTime &age)

void	SetLife (Int32 pid, const BaseTime &life)

void	SetGroup (Int32 pid, TP_PGroup *group)

void	SetSize (Int32 pid, Float size)

void	SetScale (Int32 pid, const Vector &scale)

void	SetAlignment (Int32 pid, const Matrix &align)

void	SetRandomseed (Int32 pid, Int32 seed)

void	SetShape (Int32 pid, const TP_PShapePtr &shape, Bool deleteold=true)

void	SetCollision (Int32 pid, Int32 collision)

void	SetDTFactor (Int32 pid, Float dt)

Particle Data Channels
Bool	AddDataChannel (GvDataID type, const maxon::String &str)

Bool	RemoveDataChannel (Int32 chan)

Int32	NumDataChannels ()

GvDataID	DataChannelType (Int32 chan)

String	DataChannelName (Int32 chan)

Int32	DataChannelUniqueID (Int32 chan)

Int32	DataChannelID (Int32 unique_id)

Bool	SetData (Int32 pid, Int32 chan, void *data, GvValueID type)

Bool	GetData (Int32 pid, Int32 chan, void *data, GvValueID type)

Bool	SetDataFromPort (Int32 pid, Int32 chan, GvPort p, GvRun r)

Bool	SetDataToPort (Int32 pid, Int32 chan, GvPort p, GvRun r)

BaseContainer *	GetDataChannelInfo (Int32 chan)

Int32	GetDataChannelFromInfo (BaseContainer *info)

Callbacks
void	Reg_FreeParticle_CB (TP_FreeParticle_CB *cb)

void	UReg_FreeParticle_CB (TP_FreeParticle_CB *cb)

void	Reg_DeletePShape_CB (TP_FreePShape_CB *cb)

void	UReg_DeletePShape_CB (TP_FreePShape_CB *cb)

Operator Link Table
Int32	GetOperatorID (GvNode *op)

GvOperatorData *	GetOperator (Int32 id)

Dirty
UInt32	GetDirty () const

void	SetDirty ()

Collision
Bool	CheckCollision (Int32 collision, Int32 pid, Float t, Vector &pos, Vector &vel, TP_Spin &spin, Float dt, Float &ct)

Particle Shape
TP_PShapePtr	GetShapeClone (const TP_PShapePtr &shape, Int32 pid, COPYFLAGS flags, AliasTrans *trn)

TP_PShapePtr	GetShape (const TP_PShapePtr &shape, Int32 pid, Int32 owner_id)

BaseObject *	GetShapeVirtualObjects (const TP_PShapePtr &shape, Int32 pid, BaseDocument doc, const HierarchyHelp hh)

Float	GetShapeScale (const TP_PShapePtr &shape, Int32 pid)

void	FreeShape (TP_PShapePtr &shape, Int32 pid)

Collider Cache
GeColliderCache *	ColliderCache (Int32 pid)

Color Property
Vector32	Color (Int32 pid)

void	SetColor (Int32 pid, const Vector32 &color)

Additional Inherited Members
Public Member Functions inherited from BaseSceneHook
Bool	InitDisplayControl (BaseDocument doc, BaseDraw bd, const AtomArray *active)

void	FreeDisplayControl ()

Bool	DisplayControl (BaseDocument doc, BaseObject op, BaseObject chainstart, BaseDraw bd, BaseDrawHelp *bh, ControlDisplayStruct &cds) const

void	Draw (BaseDocument doc, BaseDraw bd, BaseDrawHelp bh, BaseThread bt, SCENEHOOKDRAW flags)

maxon::Generic *	GetObjectData (BaseList2D *op)

Public Member Functions inherited from BaseList2D
void	SetBit (Int32 mask)

Bool	GetBit (Int32 mask) const

void	DelBit (Int32 mask)

void	ToggleBit (Int32 mask)

Int32	GetAllBits () const

void	SetAllBits (Int32 bits)

void	SetBitEx (Int32 mask, Int32 flags)

const Char *	GetViewportRenderId (VIEWPORT_RENDER_ID typeId) const

BaseList2D *	GetNext ()

const BaseList2D *	GetNext () const

BaseList2D *	GetPred ()

const BaseList2D *	GetPred () const

BaseContainer	GetData () const

void	SetData (const BaseContainer &bc, Bool add=true)

const BaseContainer &	GetDataInstanceRef () const

BaseContainer &	GetDataInstanceRef ()

const BaseContainer *	GetDataInstance () const

BaseContainer *	GetDataInstance ()

String	GetName () const

void	SetName (const maxon::String &name, Bool setDirty=true)

String	GetBubbleHelp ()

Bool	TransferGoal (BaseList2D *dst, Bool undolink)

Bool	TransferMarker (BaseList2D *dst) const

Bool	CopyDynamicDescriptionFrom (const BaseList2D *src)

Bool	Scale (Float scale)

Bool	Edit ()

void	GetIcon (IconData *dat)

GeListHead *	GetNLARoot (Bool create)

BaseList2D *	AnimationLayerRemap (BaseObject **layer=nullptr)

String	GetTypeName () const

const BaseList2D *	GetMain () const

BaseList2D *	GetMain ()

void	InsertTrackSorted (CTrack *track)

Bool	AddEventNotification (BaseList2D bl, NOTIFY_EVENT eventid, NOTIFY_EVENT_FLAG flags, const BaseContainer data)

Bool	RemoveEventNotification (const BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	FindEventNotification (const BaseDocument doc, BaseList2D bl, NOTIFY_EVENT eventid)

Bool	SetDescIDState (const DescID &id, DESCIDSTATE descidstate)

DESCIDSTATE	GetDescIDState (const DescID &id, Bool tolerant) const

GeListHead *	GetOverrideRoot (Bool create)

BaseOverride *	GetFirstOverride ()

GeListHead *	GetShaderRepositoryRoot (Bool create)

GeListHead *	GetHiddenShaderRoot (Bool create)

maxon::NimbusForwardRef	GetNimbusRef (const maxon::Id &spaceId) const

maxon::Result< maxon::NimbusForwardRef >	PrivateGetOrCreateNimbusRef (const maxon::Id &spaceId)

void	RemoveNimbusRef (const maxon::Id &spaceId)

maxon::Result< maxon::HashMap< maxon::Id, maxon::NimbusForwardRef > >	GetAllNimbusRefs () const

Bool	IsNodeBased () const

maxon::Result< Bool >	GetAccessedObjects (METHOD_ID method, AccessedObjectsCallback &access) const

maxon::Result< Bool >	GetAccessedObjectsRec (ACCESSED_OBJECTS_MASK read, ACCESSED_OBJECTS_MASK write, METHOD_ID method, Bool withSiblings, Bool withChildren, AccessedObjectsCallback &access) const

maxon::Result< Bool >	GetAccessedObjectsOfHierarchy (ACCESSED_OBJECTS_MASK read, ACCESSED_OBJECTS_MASK write, METHOD_ID method, AccessedObjectsCallback &access) const

maxon::Result< Bool >	GetAccessedObjectsOfChildren (ACCESSED_OBJECTS_MASK read, ACCESSED_OBJECTS_MASK write, METHOD_ID method, AccessedObjectsCallback &access) const

maxon::Result< Bool >	GetAccessedObjectsOfFirstChildHierarchy (ACCESSED_OBJECTS_MASK read, ACCESSED_OBJECTS_MASK write, METHOD_ID method, AccessedObjectsCallback &access) const

maxon::Result< maxon::GenericData >	GroupChanges ()

void	GetMarkerStampEx (UInt32 l1, UInt32 l2)

const GeMarker &	GetMarker () const

void	SetMarker (const GeMarker &m)

Bool	AddUniqueID (Int32 appid, const Char *const mem, Int bytes)

Bool	FindUniqueID (Int32 appid, const Char *&mem, Int &bytes) const

Int32	GetUniqueIDCount () const

Bool	GetUniqueIDIndex (Int32 idx, Int32 &id, const Char *&mem, Int &bytes) const

Bool	SetAnimatedParameter (const CTrack *track, const DescID &id, const GeData &t_data1, const GeData &t_data2, Float mix, DESCFLAGS_SET flags)

Bool	GetAnimatedParameter (const DescID &id, GeData &t_data1, GeData &t_data2, Float &mix, DESCFLAGS_GET flags) const

BaseShader *	GetFirstShader () const

void	InsertShader (BaseShader shader, BaseShader pred=nullptr)

void	ClearKeyframeSelection ()

Bool	FindKeyframeSelection (const DescID &id)

Bool	SetKeyframeSelection (const DescID &id, Bool selection)

Bool	KeyframeSelectionContent ()

LayerObject *	GetLayerObject (const BaseDocument *doc)

const LayerObject *	GetLayerObject (const BaseDocument *doc) const

Bool	SetLayerObject (const LayerObject *layer)

const LayerData *	GetLayerData (const BaseDocument *doc, Bool rawdata=false) const

Bool	SetLayerData (BaseDocument *doc, const LayerData &data)

GeListHead *	GetCTrackRoot (Bool create)

const GeListHead *	GetCTrackRoot () const

const CTrack *	GetFirstCTrack () const

CTrack *	GetFirstCTrack ()

const CTrack *	FindCTrack (const DescID &id) const

CTrack *	FindCTrack (const DescID &id)

Public Member Functions inherited from GeListNode
GeListNode *	GetNext ()

const GeListNode *	GetNext () const

GeListNode *	GetPred ()

const GeListNode *	GetPred () const

GeListNode *	GetDown ()

const GeListNode *	GetDown () const

GeListNode *	GetUp ()

const GeListNode *	GetUp () const

GeListNode *	GetDownLast ()

const GeListNode *	GetDownLast () const

void	InsertBefore (GeListNode *bl)

void	InsertAfter (GeListNode *bl)

void	InsertUnder (GeListNode *bl)

void	InsertUnderLast (GeListNode *bl)

void	Remove ()

void	FlushChilds ()

void	MoveChildrenTo (GeListNode *dest)

GeListHead *	GetListHead ()

const GeListHead *	GetListHead () const

Int32	GetNodeID (Int32 index=0) const

template<typename CAST >
const CAST *	GetNodeData (Int32 index=0) const

template<typename CAST >
CAST *	GetNodeData (Int32 index=0)

void	SetCustomData (GeListNode *node)

GeListNode *	GetCustomData ()

const GeListNode *	GetCustomData () const

const BaseDocument *	GetDocument () const

BaseDocument *	GetDocument ()

maxon::Result< Bool >	GetBranchInfo (const maxon::ValueReceiver< const BranchInfo & > &info, GETBRANCHINFO flags) const

Bool	IsDocumentRelated () const

Int32	GetInfo () const

Bool	GetNBit (NBIT bit) const

template<NBIT bit>
constexpr Bool	GetNBit () const

UInt32	GetNBitMask (Int32 index) const

Bool	ChangeNBit (NBIT bit, NBITCONTROL bitmode)

Public Member Functions inherited from C4DAtomGoal
Bool	HasLinks () const

Public Member Functions inherited from C4DAtom
Int32	GetType () const

Int32	GetRealType () const

Int32	GetDiskType () const

Bool	IsInstanceOf (Int32 id) const

Int32	GetClassification () const

Bool	Message (Int32 type, void *data=nullptr)

Bool	MultiMessage (MULTIMSG_ROUTE flags, Int32 type, void *data)

C4DAtom *	GetClone (COPYFLAGS flags, AliasTrans *trn) const

Bool	CopyTo (C4DAtom dst, COPYFLAGS flags, AliasTrans trn) const

Bool	Read (HyperFile *hf, Int32 id, Int32 level)

Bool	Write (HyperFile *hf) const

Bool	ReadObject (HyperFile *hf, Bool readheader)

Bool	WriteObject (HyperFile *hf) const

Bool	GetDescription (Description *description, DESCFLAGS_DESC flags) const

Bool	GetParameter (const DescID &id, GeData &t_data, DESCFLAGS_GET flags) const

Bool	SetParameter (const DescID &id, const GeData &t_data, DESCFLAGS_SET flags)

DynamicDescription *	GetDynamicDescriptionWritable ()

const DynamicDescription *	GetDynamicDescription () const

Bool	CopyDynamicDescriptionFrom (const BaseList2D *src)

Bool	GetEnabling (const DescID &id, const GeData &t_data, DESCFLAGS_ENABLE flags, const BaseContainer *itemdesc) const

Bool	TranslateDescID (const DescID &id, DescID &res_id, C4DAtom *&res_at)

UInt32	GetDirty (DIRTYFLAGS flags) const

void	SetDirty (DIRTYFLAGS flags)

UInt32	GetHDirty (HDIRTYFLAGS mask) const

void	SetHDirty (HDIRTYFLAGS mask)

Static Public Member Functions inherited from BaseList2D
static BaseList2D *	Alloc (Int32 type)

static void	Free (BaseList2D *&bl)

Static Public Attributes inherited from BaseList2D
static const Int32	SETBIT_FLAG_NODIRTY

static const Int32	SETBIT_FLAG_REMOVE

Constructor & Destructor Documentation

◆ TP_MasterSystem()

TP_MasterSystem ( )

private

◆ ~TP_MasterSystem()

~TP_MasterSystem ( )

private

Member Function Documentation

◆ AllocParticle()

Int32 AllocParticle ( )

Allocates a particle.

Returns: The particle ID of the allocated particle, or NOTOK if the allocation failed.

◆ AllocParticles()

Int32 AllocParticles	(	Int32	num,
		Int32 *	ids
	)

Allocates num particles and stores their particles IDs in the ids array.

Parameters

[in]	num	The number of particles to allocate.
[out]	ids	An array of num Int32 elements. Filled with the allocated particle IDs. The caller owns the pointed array.

Returns: The number of particles allocated, or NOTOK if the allocation failed.

◆ FreeParticle()

void FreeParticle ( Int32 pid )

Frees a particle.

Note: Normally this should not be used. Instead SetLife() should be uses with a negative time, so that the particle in question dies immediately.

Parameters

[in] pid The particle ID of the particle to free: 0 <= pid < NumParticles()

◆ FreeAllParticles()

void FreeAllParticles ( )

Frees all particles.

Note: Normally this should not be used. Instead SetLife() should be uses with a negative time, so that the particles dies immediately.

◆ NumParticles()

Int32 NumParticles ( ) const

Retrieves the number of allocated particles. All particles IDs are less than this value.

Returns: The number of particles.

◆ AllocParticleGroup()

TP_PGroup* AllocParticleGroup ( )

Allocates a new particle group. Must be freed with FreeParticleGroup(), or inserted into the list with SetPGroupHierarchy().

Returns: The allocate particle group. The caller owns the pointed TP_PGroup.

◆ FreeParticleGroup()

void FreeParticleGroup ( TP_PGroup *& group )

Frees a particle group, removing it from the list.

Parameters

[in,out] group The group to free. Set to nullptr afterwards.

◆ SetPGroupHierarchy()

Bool SetPGroupHierarchy	(	TP_PGroup *	parent,
		TP_PGroup *	group,
		TP_InsertMode	mode
	)

Performs a hierarchy action on a particle group.

Parameters

[in]	parent	The parent parameter. The caller owns the pointed TP_PGroup.
[in]	group	The group to act on. The caller owns the pointed TP_PGroup.
[in]	mode	The hierarchy action: TP_InsertMode

Returns: true if successful, otherwise false.

◆ GetParticleGroups() [1/2]

Int32 GetParticleGroups	(	TP_PGroup *	ingroup,
		TP_PGroupArray *	gtab,
		TP_GetPGroupMode	mode,
		Bool	subgroups = `true`
	)

Returns the particle groups in ingroup, specified by mode, into the gtab list.
Example:

PluginSceneHook* hook = doc->FindSceneHook(ID_THINKINGPARTICLES);
if (hook && hook->GetType() == ID_THINKINGPARTICLES)
{
  TP_MasterSystem *tpm = (TP_MasterSystem*)hook;
  TP_PGroupArray groups;
  Int32 gcnt = tpm->GetParticleGroups(nullptr, &groups, TP_GETPGROUP_ALL, false);
  // For subgroups
  //Int32 gcnt = tpm->GetParticleGroups(nullptr,&groups, TP_GETPGROUP_ALL, true);

  TP_PGroup *grp = (TP_PGroup*)groups.GetIndex(0); // grp is the "All" group

  //To iterate
  //for (Int32 i=0; i<gcnt; i++)
  //{
  //  TP_PGroup *grp = (TP_PGroup*)groups.GetIndex(i);
  //}
}

Parameters

[in]	ingroup	The in-group parameter. The caller owns the pointed TP_PGroup.
[out]	gtab	The specified groups are added to this list. The caller owns the pointed TP_PGroup.
[in]	mode	The mode: TP_GetPGroupMode
[in]	subgroups	If true sub-groups are included.

Returns: The number of groups added to gtab.

◆ GetParticleGroups() [2/2]

Int32 GetParticleGroups	(	const TP_PGroup *	ingroup,
		maxon::BaseArray< const TP_PGroup * > *	gtab,
		TP_GetPGroupMode	mode,
		Bool	subgroups = `true`
	)		const

◆ GetGroupParticleCount()

Int32 GetGroupParticleCount	(	TP_PGroup *	ingroup,
		Bool	subgroups = `true`
	)

Calculates the number of particles in ingroup.

Parameters

[in]	ingroup	The in-group parameter. The caller owns the pointed TP_PGroup.
[in]	subgroups	If true sub-groups are included.

Returns: The number of particles in the specified group.

◆ GetVirtualObjects()

BaseObject* GetVirtualObjects	(	TP_PGroup *	ingroup,
		Bool	inRender = `true`,
		Bool	subgroups = `true`,
		const HierarchyHelp *	hh = `nullptr`
	)

Creates the virtual object hierarchy for a particle group, i.e. an object group containing all particles. Used by the ParticleGeometry object.

Parameters

[in]	ingroup	The in-group parameter. The caller owns the pointed TP_PGroup.
[in]	inRender	true if this is for rendering, otherwise the objects are built for the editor view.
[in]	subgroups	If true sub-groups are included.
[in]	hh	The hierarchy helper for the virtual object generation. The caller owns the pointed HierarchyHelp.

Returns: The virtual object, or nullptr if there was an error.

◆ GetGroupInfo()

BaseContainer* GetGroupInfo ( TP_PGroup * group )

Retrieves the group information for a group.

Parameters

[in] group The group to get the information for. The caller owns the pointed TP_PGroup.

Returns: The group information for group. The caller owns the pointed TP_PGroupInfo.

◆ GetGroupFromInfo()

TP_PGroup* GetGroupFromInfo ( BaseContainer * info )

Retrieves a group from the information in info.

Parameters

[in] info The group information to search for. The caller owns the pointed TP_PGroupInfo.

Returns: The retrieved group, or nullptr if no group matched. The master system owns the pointed TP_PGroup.

◆ UpdateGroup()

Bool UpdateGroup	(	TP_PGroup *	group,
		const BaseTime &	timeDelta
	)

Updates a group at a given time difference since the last update. Use a default timeDelta of 0 to update at the current time.

Since: R16.050

Parameters

[in]	group	The group to update. The caller owns the pointed TP_PGroup.
[in]	timeDelta	The time difference since the last update.

Returns: true if the update was done successfully, otherwise false.

◆ Alive()

Bool Alive ( Int32 pid ) const

Retrieves the alive bit of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: true if the particle is alive, otherwise false.

◆ IsBorn()

Bool IsBorn ( Int32 pid ) const

Retrieves the is-born bit of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: true if the particle was just born, otherwise false.

◆ IsDie()

Bool IsDie ( Int32 pid ) const

Retrieves the is-die bit of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: true if the particle just died, otherwise false.

◆ EntersGroup()

Bool EntersGroup ( Int32 pid ) const

Retrieves the enters-group bit of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: true if the particle just entered a group, otherwise false.

◆ Group()

TP_PGroup* Group ( Int32 pid )

Retrieves the group of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The group that the particle currently is in. The master system owns the pointed TP_PGroup.

◆ Position()

Vector Position ( Int32 pid ) const

Retrieves the position of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle position.

◆ Velocity()

Vector Velocity ( Int32 pid ) const

Retrieves the velocity of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle velocity.

◆ Mass()

Float Mass ( Int32 pid ) const

Retrieves the mass of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle mass.

◆ Spin()

TP_Spin Spin ( Int32 pid ) const

Retrieves the spin of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle spin.

◆ Size()

Float Size ( Int32 pid ) const

Retrieves the size of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle size.

◆ Scale()

Vector Scale ( Int32 pid ) const

Retrieves the scale of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle scale.

◆ Age()

BaseTime Age ( Int32 pid ) const

Retrieves the age of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle age.

◆ Life()

BaseTime Life ( Int32 pid ) const

Retrieves the lifetime of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle lifetime.

◆ Alignment()

Matrix Alignment ( Int32 pid ) const

Retrieves the alignment matrix of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle alignment matrix.

◆ Randomseed()

Int32 Randomseed ( Int32 pid ) const

Retrieves the random seed of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle random seed.

◆ Shape()

TP_PShapePtr Shape ( Int32 pid ) const

Retrieves the shape of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle shape. The master system owns the pointed TP_PShapePtr.

◆ Transform()

Matrix Transform ( Int32 pid ) const

Retrieves the transformation matrix of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle transformation matrix.

◆ Flags()

UInt16 Flags ( Int32 pid ) const

Retrieves the flags of a particle.

Note: These returned flags are private. Use the functions like Alive() instead.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle flags.

◆ DTFactor()

Float DTFactor ( Int32 pid ) const

Retrieves the delta time factor of a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle delta time factor.

◆ SetPosition()

void SetPosition	(	Int32	pid,
		const Vector &	p
	)

Sets the position for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	p	The new particle position.

◆ SetVelocity()

void SetVelocity	(	Int32	pid,
		const Vector &	p
	)

Sets the velocity for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	p	The new particle velocity.

◆ SetMass()

void SetMass	(	Int32	pid,
		Float	mass
	)

Sets the mass for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	mass	The new particle mass.

◆ SetSpin()

void SetSpin	(	Int32	pid,
		const TP_Spin &	spin
	)

Sets the spin for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	spin	The new particle spin.

◆ SetAge()

void SetAge	(	Int32	pid,
		const BaseTime &	age
	)

Sets the age for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	age	The new particle age.

◆ SetLife()

void SetLife	(	Int32	pid,
		const BaseTime &	life
	)

Sets the lifetime for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	life	The new particle lifetime.

◆ SetGroup()

void SetGroup	(	Int32	pid,
		TP_PGroup *	group
	)

Inserts a particle into another group.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	group	The group to place the particle in. The pointed group must belong to this master system.

◆ SetSize()

void SetSize	(	Int32	pid,
		Float	size
	)

Sets the size for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	size	The new particle size.

◆ SetScale()

void SetScale	(	Int32	pid,
		const Vector &	scale
	)

Sets the scale for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	scale	The new particle scale.

◆ SetAlignment()

void SetAlignment	(	Int32	pid,
		const Matrix &	align
	)

Sets the alignment matrix for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	align	The new particle alignment matrix.

◆ SetRandomseed()

void SetRandomseed	(	Int32	pid,
		Int32	seed
	)

Sets the random seed for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	seed	The new particle random seed.

◆ SetShape()

void SetShape	(	Int32	pid,
		const TP_PShapePtr &	shape,
		Bool	deleteold = `true`
	)

Sets the shape for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	shape	The new particle shape. TP_PShapeI::owner_id should be set to GetOperatorID() for the node responsible for the shape handling. This node should be prepared to provide a TP_PShapeInterface via the TP_MSG_GET_PSHAPEINTERFACE message.
[in]	deleteold	If true the old shape is deleted.

◆ SetCollision()

void SetCollision	(	Int32	pid,
		Int32	collision
	)

Sets the collision handling information for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	collision	The collision ID. This is the GetOperatorID() for the node responsible for the collision handling. This node should be prepared to provide a TP_CollisionInterface via the TP_MSG_GET_COLLISIONINTERFACE message.

◆ SetDTFactor()

void SetDTFactor	(	Int32	pid,
		Float	dt
	)

Sets the delta time factor for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	dt	The new particle delta time factor.

◆ AddDataChannel()

Bool AddDataChannel	(	GvDataID	type,
		const maxon::String &	str
	)

Adds a data channel.

Parameters

[in]	type	The channel data type: GvDataID
[in]	str	The channel name.

Returns: true if successful, otherwise false.

◆ RemoveDataChannel()

Bool RemoveDataChannel ( Int32 chan )

Removes a data channel.

Parameters

[in] chan The channel index: 0 <= chan < NumDataChannels()

Returns: true if successful, otherwise false.

◆ NumDataChannels()

Int32 NumDataChannels ( )

Retrieves the data channel count.

Returns: The number of data channels.

◆ DataChannelType()

GvDataID DataChannelType ( Int32 chan )

Retrieves the data type of a data channel.

Parameters

[in] chan The channel index: 0 <= chan < NumDataChannels()

Returns: The data type of channel chan.

◆ DataChannelName()

String DataChannelName ( Int32 chan )

Retrieves the name of a data channel.

Parameters

[in] chan The channel index: 0 <= chan < NumDataChannels()

Returns: The data channel name.

◆ DataChannelUniqueID()

Int32 DataChannelUniqueID ( Int32 chan )

Retrieves a unique ID for a data channel that is independent of its index.

Parameters

[in] chan The channel index: 0 <= chan < NumDataChannels()

Returns: A unique ID for channel chan.

◆ DataChannelID()

Int32 DataChannelID ( Int32 unique_id )

Retrieves the index of a data channel from its unique ID.

Parameters

[in] unique_id The unique channel ID.

Returns: The data channel index.

◆ SetData()

Bool SetData	(	Int32	pid,
		Int32	chan,
		void *	data,
		GvValueID	type
	)

Sets the data channel for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	chan	The channel index: 0 <= chan < NumDataChannels()
[in]	data	The data to set. Points to GV data. The layout of the pointed data is determined by type.
[in]	type	Determines the type of data.

Returns: true if successful, otherwise false.

◆ GetData()

Bool GetData	(	Int32	pid,
		Int32	chan,
		void *	data,
		GvValueID	type
	)

Retrieves the data channel for a particle.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	chan	The channel index: 0 <= chan < NumDataChannels()
[out]	data	Filled with the retrieved data. Points to GV data. The layout of the pointed data is determined by type.
[in]	type	Determines the type of data.

Returns: true if successful, otherwise false.

◆ SetDataFromPort()

Bool SetDataFromPort	(	Int32	pid,
		Int32	chan,
		GvPort *	p,
		GvRun *	r
	)

Sets the data channel for a particle, getting the data from a GV port.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	chan	The channel index: 0 <= chan < NumDataChannels()
[in]	p	The port with the data to set. The caller owns the pointed GvPort.
[in]	r	The run helper. The caller owns the pointed GvRun.

Returns: true if successful, otherwise false.

◆ SetDataToPort()

Bool SetDataToPort	(	Int32	pid,
		Int32	chan,
		GvPort *	p,
		GvRun *	r
	)

Retrieves the data channel for a particle, storing the data in a GV port.

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	chan	The channel index: 0 <= chan < NumDataChannels()
[out]	p	The retrieved data is set in this port. The caller owns the pointed GvPort.
[in]	r	The run helper. The caller owns the pointed GvRun.

Returns: true if successful, otherwise false.

◆ GetDataChannelInfo()

BaseContainer* GetDataChannelInfo ( Int32 chan )

Retrieves the channel information for a data channel.

Warning: The returned object needs to be free with (info) afterwards. chan The channel index: 0 <= chan < NumDataChannels()

Returns: The channel information for chan. The caller owns the pointed TP_DataChannelInfo.

◆ GetDataChannelFromInfo()

Int32 GetDataChannelFromInfo ( BaseContainer * info )

Retrieves a data channel index from the information in info.

Parameters

[in] info The information to search for. The caller owns the pointed TP_DataChannelInfo.

Returns: The retrieved channel index, or NOTOK if no channel matched.

◆ Reg_FreeParticle_CB()

void Reg_FreeParticle_CB ( TP_FreeParticle_CB * cb )

Registers a free-particle callback.

Parameters

[in] cb The callback to register.

◆ UReg_FreeParticle_CB()

void UReg_FreeParticle_CB ( TP_FreeParticle_CB * cb )

Unregisters a free-particle callback.

Parameters

[in] cb The callback to unregister.

◆ Reg_DeletePShape_CB()

void Reg_DeletePShape_CB ( TP_FreePShape_CB * cb )

Registers a delete-shape callback.

Parameters

[in] cb The callback to register.

◆ UReg_DeletePShape_CB()

void UReg_DeletePShape_CB ( TP_FreePShape_CB * cb )

Unregisters a delete-shape callback.

Parameters

[in] cb The callback to unregister.

◆ GetOperatorID()

Int32 GetOperatorID ( GvNode * op )

Retrieves an ID for op that can later be used with GetOperator() to get op back.

Warning: The ID is only valid during a limited time.

Parameters

[in] op A node. The caller owns the pointed node.

Returns: An operator ID for op.

◆ GetOperator()

GvOperatorData* GetOperator ( Int32 id )

Retrieves the operator for an ID previously acquired with GetOperatorID().

Parameters

[in] id The operator ID, as returned by GetOperatorID().

Returns: The retrieved operator, or nullptr. The GV world owns the pointed object.

◆ GetDirty()

UInt32 GetDirty ( ) const

A dirty counter for the master system. This can be used to see if anything has changed. Use SetDirty() to increment the counter.

Returns: The dirty counter, incremented when something changes in the system.

◆ SetDirty()

void SetDirty ( )

Increments the dirty counter, i.e. tells anyone using GetDirty() that something has changed.

Note: This has to be used whenever an operator affects particle shapes, like the ObjectShape operator does.

◆ CheckCollision()

Bool CheckCollision	(	Int32	collision,
		Int32	pid,
		Float	t,
		Vector &	pos,
		Vector &	vel,
		TP_Spin &	spin,
		Float	dt,
		Float &	ct
	)

Finds the node responsible for collision, the one that called SetCollision(), and tells it to evaluate the passed collision parameters.

Note: Normally Thinking Particles evaluates this function automatically for registered collisions.

Parameters

[in]	collision	The collision ID. This is GetOperatorID() for the node responsible for the collision.
[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	t	Time to evaluate the collision at. Collisions are detected between t - dt and t.
[in]	pos	Assigned the new position of the object if there is a collision.
[out]	vel	Assigned the new velocity of the object if there is a collision.
[out]	spin	Assigned the new spin of the object if there is a collision.
[in]	dt	The time since the last evaluation, i.e. the time to look backwards for collisions.
[in]	ct	The collision time, if there was a collision. This is generally less than t.

Returns: true if there was a collision, otherwise false.

◆ GetShapeClone()

TP_PShapePtr GetShapeClone	(	const TP_PShapePtr &	shape,
		Int32	pid,
		COPYFLAGS	flags,
		AliasTrans *	trn
	)

Finds the node responsible for shape, as specified by TP_PShapeI::owner_id, and tells it to return a clone of shape.

Note: Normally Thinking Particles evaluates this function automatically for registered shapes.

Warning: The returned shape must be free with FreeShape() afterwards.

Parameters

[in]	shape	The particle shape. The caller owns the pointed shape.
[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	flags	The flags: COPYFLAGS
[in]	trn	An alias translator for the operation. Can be nullptr. The caller owns the pointed AliasTrans.

Returns: The particle shape pointer structure of the cloned particle shape. The caller owns the pointed shape.

◆ GetShape()

TP_PShapePtr GetShape	(	const TP_PShapePtr &	shape,
		Int32	pid,
		Int32	owner_id
	)

Finds the node responsible for shape, as specified by TP_PShapeI::owner_id, and tells it to return the shape associated with shape. (Normally this is the same object.)

Note: Normally Thinking Particles evaluates this function automatically for registered shapes.

Parameters

[in]	shape	The particle shape. The caller owns the pointed shape.
[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	owner_id	The owner ID.

Returns: The shape. The shape handler owns the pointed shape.

◆ GetShapeVirtualObjects()

BaseObject* GetShapeVirtualObjects	(	const TP_PShapePtr &	shape,
		Int32	pid,
		BaseDocument *	doc,
		const HierarchyHelp *	hh
	)

Finds the node responsible for shape, as specified by TP_PShapeI::owner_id, and tells it to return a BaseObject shape for shape.

Note: Normally Thinking Particles evaluates this function automatically for registered shapes.

Parameters

[in]	shape	The particle shape. The caller owns the pointed shape.
[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	doc	The current document. The caller owns the pointed BaseDocument.
[in]	hh	A hierarchy helper for the operation. The caller owns the pointed HierarchyHelp.

Returns: The particle shape object. The particle shape handler owns the pointed object.

◆ GetShapeScale()

Float GetShapeScale	(	const TP_PShapePtr &	shape,
		Int32	pid
	)

Finds the node responsible for shape, as specified by TP_PShapeI::owner_id, and tells it to return the scale of shape.

Note: Normally Thinking Particles evaluates this function automatically for registered shapes.

Parameters

[in]	shape	The particle shape. The caller owns the pointed shape.
[in]	pid	The particle ID: 0 <= pid < NumParticles()

Returns: The shape scale.

◆ FreeShape()

void FreeShape	(	TP_PShapePtr &	shape,
		Int32	pid
	)

Finds the node responsible for shape, as specified by TP_PShapeI::owner_id, and tells it to free shape.

Note: Normally Thinking Particles evaluates this function automatically for registered shapes.

Parameters

[in]	shape	The particle shape. The caller owns the pointed shape.
[in]	pid	The particle ID: 0 <= pid < NumParticles()

◆ ColliderCache()

GeColliderCache* ColliderCache ( Int32 pid )

Retrieves a collider cache for the shape associated with a particle.

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The collider cache, or nullptr. The system owns the pointed collider cache.

◆ Color()

Vector32 Color ( Int32 pid )

Retrieves the color for a particle.

Since: R16.038

Parameters

[in] pid The particle ID: 0 <= pid < NumParticles()

Returns: The particle color.

◆ SetColor()

void SetColor	(	Int32	pid,
		const Vector32 &	color
	)

Sets the color for a particle.

Since: R16.038

Parameters

[in]	pid	The particle ID: 0 <= pid < NumParticles()
[in]	color	The particle color.

Detailed Description

Private Member Functions

Particle/Particles

Particle Group

Particle Information/Bits

Set Particle Information/Bits

Particle Data Channels

Callbacks

Operator Link Table

Dirty

Collision

Particle Shape

Collider Cache

Color Property

Additional Inherited Members

Constructor & Destructor Documentation

◆ TP_MasterSystem()

◆ ~TP_MasterSystem()

Member Function Documentation

◆ AllocParticle()

◆ AllocParticles()

◆ FreeParticle()

◆ FreeAllParticles()

◆ NumParticles()

◆ AllocParticleGroup()

◆ FreeParticleGroup()

◆ SetPGroupHierarchy()

◆ GetParticleGroups() [1/2]

◆ GetParticleGroups() [2/2]

◆ GetGroupParticleCount()

◆ GetVirtualObjects()

◆ GetGroupInfo()

◆ GetGroupFromInfo()

◆ UpdateGroup()

◆ Alive()

◆ IsBorn()

◆ IsDie()

◆ EntersGroup()

◆ Group()

◆ Position()

◆ Velocity()

◆ Mass()

◆ Spin()

◆ Size()

◆ Scale()

◆ Age()

◆ Life()

◆ Alignment()

◆ Randomseed()

◆ Shape()

◆ Transform()

◆ Flags()

◆ DTFactor()

◆ SetPosition()

◆ SetVelocity()

◆ SetMass()

◆ SetSpin()

◆ SetAge()

◆ SetLife()

◆ SetGroup()

◆ SetSize()

◆ SetScale()

◆ SetAlignment()

◆ SetRandomseed()

◆ SetShape()

◆ SetCollision()

◆ SetDTFactor()

◆ AddDataChannel()

◆ RemoveDataChannel()

◆ NumDataChannels()

◆ DataChannelType()

◆ DataChannelName()

◆ DataChannelUniqueID()

◆ DataChannelID()

◆ SetData()

◆ GetData()

◆ SetDataFromPort()

◆ SetDataToPort()

◆ GetDataChannelInfo()

◆ GetDataChannelFromInfo()
