#include <nodesystem.h>

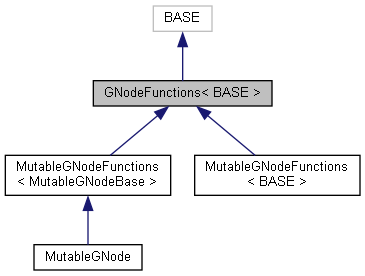

Inheritance diagram for GNodeFunctions< BASE >:

[legend]

Detailed Description

template<typename BASE>
class maxon::nodes::GNodeFunctions< BASE >

This class template contains the functions of a general g-node which shall also be available on Result<NODE>.

Public Member Functions
Bool	IsPort () const

const PortSelector< BASE::MUTABLE > &	ToPort () const

Result< void >	GetValues (GraphAttribute::FLAGS mask, GraphAttributeMap &attribs, Bool includeInherited=true, Bool includeRemoved=false) const

Result< ConstDataPtr >	GetValue (const InternedId &attr, const DataType &expectedType) const

Result< ConstDataPtr >	GetValue (const InternedId &attr, const DataType &expectedType, Int &nesting, Bool negativeRootNesting=false) const

template<typename T >
Result< Opt< const T & > >	GetValue (const InternedId &attr) const

template<typename ATTR >
Result< Opt< const typename ATTR::ValueType & > >	GetValue (const ATTR &attr) const

template<typename ATTR >
Result< Opt< const typename ATTR::ValueType & > >	GetValue () const

template<typename ATTR >
Result< Opt< const typename ATTR::ValueType & > >	GetValue (const ATTR &attr, Int &nesting) const

Result< Bool >	GetBaseValues (const InternedId &attr, const DataType &expectedType, const ValueReceiver< const ConstDataPtr &, Int > &receiver) const

Result< Bool >	GetAttributeModificationsSince (TimeStamp stamp, const ValueReceiver< InternedId, ConstDataPtr > &receiver) const

TimeStamp	GetAttributeStamp (const InternedId &attr) const

Result< NodeSelector< BASE::MUTABLE > >	GetNode () const

Result< GNodeSelector< BASE::MUTABLE > >	GetParent () const

Result< GNodeSelector< BASE::MUTABLE > >	FindChild (const InternedId &name, NODE_KIND mask) const

template<typename NODE >
Result< typename NODE::template Selector< BASE::MUTABLE > >	FindInnerNode (const PathBlock &relativePath) const

Result< Bool >	GetInnerNodes (NODE_KIND mask, Bool includeThis, const ValueReceiver< const GNodeSelector< BASE::MUTABLE > & > &receiver) const

const NodeSystem &	GetBase () const

const Block< const NodeSystem > &	GetBases () const

Result< Bool >	GetAllBases (const ValueReceiver< const NodeSystem & > &receiver) const

const NodeTemplate &	GetTemplate () const

Result< Bool >	GetAllTemplates (const ValueReceiver< const NodeTemplate & > &receiver) const

const NodeSystemDerivationHandler &	GetDerivationHandler () const

Protected Types
using	Super = BASE

Member Typedef Documentation

◆ Super

using Super = BASE

protected

Member Function Documentation

◆ IsPort()

Bool IsPort ( ) const

Checks whether this reference addresses a port or a port list. PortList is a base class of Port, so a PortList reference may actually refer to a port.

Returns: True if this reference points to a port, false if it points to a port list.

◆ ToPort()

const PortSelector<BASE::MUTABLE>& ToPort ( ) const

Downcasts this reference to a port reference. This function may only be invoked if this reference really points to a port and not just to a port list (see IsPort()), otherwise the behaviour is undefined.

Returns: This reference, cast to a port reference.

◆ GetValues()

Result<void> GetValues	(	GraphAttribute::FLAGS	mask,
		GraphAttributeMap &	attribs,
		Bool	includeInherited = `true`,
		Bool	includeRemoved = `false`
	)		const

Collects all attribute values which are defined for this g-node in #attribs. This includes values which are set at the node itself, but also values which are inherited from a base node unless they have been marked as removed by MutableGNode::RemoveValue().

Parameters

[in]	mask	A mask to filter the attributes which shall be added to attribs. The mask filter is split into two parts: You have to set at least one of the flags from GraphAttribute::FLAGS::TYPE_MASK to determine which attribute types shall be taken into account at all. Optionally you can add further flags, then these have to be matched too.
[in]	attribs	The map to write the values to.
[in]	includeInherited	Use true if attributes inherited from base node systems shall be added (the default).
[in]	includeRemoved	Use true if removed attributes shall be added, too (false by default, the corresponding attribute value to signal a removed attribute is empty).

Returns: OK on success.

◆ GetValue() [1/6]

Result<ConstDataPtr> GetValue	(	const InternedId &	attr,
		const DataType &	expectedType
	)		const

Returns a pointer to the value of #attr at this g-node. The value may be defined at this node itself or at one of its bases. If no value is found or the found value doesn't match the expectedType, nullptr is returned.

Parameters

[in]	attr	The attribute whose value shall be obtained.
[in]	expectedType	The expected type of the value. May be nullptr, then no type-check is done.

Returns: Pointer to the value of #attr (to be cast to the type of #attr), or nullptr if this g-node has no value for the attribute.

◆ GetValue() [2/6]

Result<ConstDataPtr> GetValue	(	const InternedId &	attr,
		const DataType &	expectedType,
		Int &	nesting,
		Bool	negativeRootNesting = `false`
	)		const

Returns a pointer to the value of #attr at this g-node. The value may be defined at this node itself or at one of its bases. If no value is found or the found value doesn't match the expectedType, nullptr is returned.

Compared to the basic GetValue function this function has an additional output parameter nesting. If a value is found, the nesting of the node system which contained the value is written to nesting. For example if the attribute value is defined at a node system which is a child of the root node system, the nesting is 1. If it's a child of a child the nesting is 2. However if the root node system overrides an attribute value for a g-node of a child, then the nesting is 0, or -1 when negativeRootNesting is true.

Parameters

[in]	attr	The attribute whose value shall be obtained.
[in]	expectedType	The expected type of the value. May be nullptr, then no type-check is done.
[out]	nesting	If a value is found, the nesting of the node system which contained the value is written to nesting.
[in]	negativeRootNesting	If this is true #nesting will be set to -1 if the value is defined at the root node system. This allows to distinguish between values which are set at the root and those which are inherited from a base (they will report a nesting of 0).

Returns: Pointer to the value of #attr (to be cast to the type of #attr), or nullptr if this g-node has no value for the attribute.

◆ GetValue() [3/6]

Result<Opt<const T&> > GetValue ( const InternedId & attr ) const

Returns a pointer to the value of #attr at this g-node. The value may be defined at this node itself or at one of its bases. If no value is found or the found value doesn't match the expected type T, nullptr is returned.

Parameters

[in] attr The attribute whose value shall be obtained.

Template Parameters

T	The expected type of the value.

Returns: The value of attr for this g-node, or an empty Opt if this g-node has no value for the attribute.

◆ GetValue() [4/6]

Result<Opt<const typename ATTR::ValueType&> > GetValue ( const ATTR & attr ) const

Returns a pointer to the value of #attr at this g-node. The value may be defined at this node itself or at one of its bases. If no value is found or the found value doesn't match the expected type of the attribute, nullptr is returned.

Parameters

[in] attr The attribute whose value shall be obtained.

Returns: The value of attr for this g-node, or an empty Opt if this g-node has no value for the attribute.

◆ GetValue() [5/6]

Result<Opt<const typename ATTR::ValueType&> > GetValue ( ) const

Returns a pointer the value of #ATTR at this g-node. The value may be defined at this node itself or at one of its bases. If no value is found, nullptr is returned.

Template Parameters

ATTR	The attribute whose value shall be obtained.

Returns: The value of ATTR for this g-node, or an empty Opt if this g-node has no value for the attribute.

◆ GetValue() [6/6]

Result<Opt<const typename ATTR::ValueType&> > GetValue	(	const ATTR &	attr,
		Int &	nesting
	)		const

Returns a pointer the value of #attr at this g-node. The value may be defined at this node itself or at one of its bases. If no value is found, nullptr is returned.

Parameters

[in]	attr	The attribute whose value shall be obtained.
[out]	nesting	If a value is found, the nesting of the node system which contained the value is written to nesting, see GetValue(InternedId, DataType, Int).

Returns: The value of attr for this g-node, or an empty Opt if this g-node has no value for the attribute.

◆ GetBaseValues()

Result<Bool> GetBaseValues	(	const InternedId &	attr,
		const DataType &	expectedType,
		const ValueReceiver< const ConstDataPtr &, Int > &	receiver
	)		const

Yields all values which are stored for attr at this g-node and its bases. While the normal getter functions only return the outmost value (which overrides the inner ones) this function allows to obtain also the hidden values.

The found values are reported together with their nesting in ascending order of the nesting. The nesting is defined as for GetValue(InternedId, DataType, Int) with one exception: A value which is stored at the root node system itself has a nesting of -1 instead of 0. This allows to distinguish between such values and values stored at a base of the root node system (which have a nesting of 0).

Parameters

[in]	attr	The attribute whose values shall be obtained.
[in]	expectedType	The expected type of the attribute. May be nullptr, then no type-check is done.
[in]	receiver	A callback which receives the attribute values and their nestings.

Returns: false if the receiver cancelled further evaluation, true otherwise.

◆ GetAttributeModificationsSince()

Result<Bool> GetAttributeModificationsSince	(	TimeStamp	stamp,
		const ValueReceiver< InternedId, ConstDataPtr > &	receiver
	)		const

Reports all attribute modifications which have been made for this g-node since the given stamp to the receiver. Only stored attributes will be reported, so to also check for new values of computed attributes you should use GraphAttributeInterface::IsComputedFrom().

See also: NodeSystemInterface::GetModificationsSince

Parameters

[in]	stamp	A reference time stamp. Only modifications newer than this stamp are reported.
[in]	receiver	Modifications are reported to this receiver as a pair of the attribute identifier and the current value.

Returns: false if the receiver cancelled further evaluation, true otherwise.

◆ GetAttributeStamp()

TimeStamp GetAttributeStamp ( const InternedId & attr ) const

Returns the modification stamp of the given attribute for this g-node. This is the value of the node system's time stamp (see NodeSystemInterface::GetModificationStamp) at the time when the attribute value has been set last for this g-node, or a default value if it hasn't been set at all.

Parameters

[in] attr An attribute.

Returns: The modification stamp of the last change of the attribute value.

◆ GetNode()

Result<NodeSelector<BASE::MUTABLE> > GetNode ( ) const

Returns the enclosing (true) node to which this g-node belongs. If this g-node is already a node, then it is returned itself.

Returns: The enclosing node if this g-node is a port list or port, otherwise this node itself.

◆ GetParent()

Result<GNodeSelector<BASE::MUTABLE> > GetParent ( ) const

Returns the parent node of this node. If this node is null or a root node, a null reference is returned.

Returns: Parent node.

◆ FindChild()

Result<GNodeSelector<BASE::MUTABLE> > FindChild	(	const InternedId &	name,
		NODE_KIND	mask
	)		const

Finds a child with the given name or kind. If name is given, this returns the first direct child of this node which has the identifier name and whose kind matches the mask. If name is empty, the function returns the first direct child with matching kind (in this case children whose identifiers start with a dot are ignored).

Parameters

[in]	name	The identifier to look for.
[in]	mask	A mask for the node kind.

Returns: The first direct child which matches name and mask, or a null node.

◆ FindInnerNode()

Result<typename NODE::template Selector<BASE::MUTABLE> > FindInnerNode ( const PathBlock & relativePath ) const

Finds the inner child of this g-node with the given relative path. If no such child can be found, a null node is returned.

Template Parameters

NODE	The expected node type (such as Node or MutablePort).

Parameters

[in] relativePath The relative path of the child to find, starting at this node.

Returns: The inner child of this node with the given relativePath, or a null node if no such child exists.

◆ GetInnerNodes()

Result<Bool> GetInnerNodes	(	NODE_KIND	mask,
		Bool	includeThis,
		const ValueReceiver< const GNodeSelector< BASE::MUTABLE > & > &	receiver
	)		const

Yields all inner nodes of this g-node matching #mask in pre-order. The recursive traversal stops at nodes which don't match #mask.

Parameters

[in]	mask	Mask to filter the tree traversal. Only nodes matching this mask are considered. The node on which GetInnerNodes is called isn't checked for mask.
[in]	includeThis	If true, the node on which GetInnerNodes is called is yielded to #receiver too.
[in]	receiver	Inner nodes are reported to this value receiver.

Returns: false if #receiver cancelled further evaluation, true otherwise.

◆ GetBase()

const NodeSystem& GetBase ( ) const

Returns the base node system of this node (or in other words, the node system of which this node is an instance).

For a root node, this is the base of the root's node system (which may be null). In the instancing graph below the base of B is A and the base of E is D. A, C and D have no bases.
Otherwise we have a nested node, then we follow the chain of bases until we reach a root node. In the instancing graph the base node system of the nodes n of C, m/n of D as well as m/n of E is B. The base node system of the node m of D and of E is C.

@graph +-D-----------—+ +-E-----------—+ +-C-------—+ | +-m-------—+ | | +-m-------—+ | +-A---—+ +-B---—+ | +-n---—+ | | | +-n---—+ | | | | +-n---—+ | | | |<- - -| |<- - - -| | |<- - - -| | | | |<- - -| | | | | | +-----—+ +-----—+ | +-----—+ | | | +-----—+ | | | | +-----—+ | | +---------—+ | +---------—+ | | +---------—+ | +-------------—+ +-------------—+ @endgraph If this node is not a true node but a port or port list, the base of the enclosing true node is returned.

Returns: The base node system of this node, may be a null reference.

◆ GetBases()

const Block<const NodeSystem>& GetBases ( ) const

Returns the base node systems of which this node is an instance. The entry at index 0 refers to the node system of which this node has been created as instance by CreateInstance(), this will be a null reference if the node systems hasn't been created this way. It's the same as the node system returned by GetBase(). The remaining entries list the bases which have been added by AddBase().

Returns: The bases of this node system, this will have at least one entry. The first entry may be a null reference.

◆ GetAllBases()

Result<Bool> GetAllBases ( const ValueReceiver< const NodeSystem & > & receiver ) const

Recursively finds all the bases of the node.

Parameters

[in] receiver ValueReceiver or Array that will receive all the base NodeSystem found.

Returns: False if the receiver cancelled further evaluation, true otherwise.

◆ GetTemplate()

const NodeTemplate& GetTemplate ( ) const

Returns the NodeTemplate which instantiated this node. For a root node, this is the template of the root's node system. Otherwise it is the template of the base of this node.

Returns: The NodeTemplate which instantiated this node, may be a null reference.

◆ GetAllTemplates()

Result<Bool> GetAllTemplates ( const ValueReceiver< const NodeTemplate & > & receiver ) const

Returns the NodeTemplate which instantiated this node also those from all the bases.

Parameters

[in] receiver ValueReceiver or Array that will receive all the NodeTemplate found.

Returns: False if ValueReceiver was canceled. True otherwise.

◆ GetDerivationHandler()

const NodeSystemDerivationHandler& GetDerivationHandler ( ) const

Returns the derivation handler of this node.

Returns: The NodeSystemDerivationHandler of this node.
