MicroNode Class Reference

#include <corenodes_instances.h>

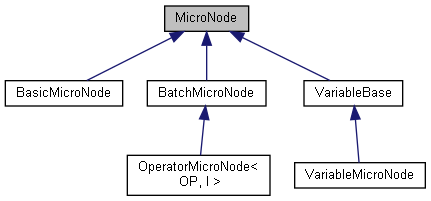

Inheritance diagram for MicroNode:
Inheritance graph
[legend]

Detailed Description

MicroNode is the base class of all micro node implementation classes such as BasicMicroNode or BatchMicroNode. To implement a new custom micro node, you usually write a subclass of BasicMicroNode.

There is a 1:1 correspondence between a MicroNodeInterface instance and a MicroNode instance: Each MicroNodeInterface instance holds its own MicroNode instance, see MicroNodeInterface::GetImplementation() and MicroNode::GetNode().

Although MicroNode itself has no data members, it is ensured by its subclasses that the data layout always starts with MicroNode::Base. MicroNode::ToBase() does the corresponding cast.

Classes

class  AllowsChild

class  AllowsParent

class  Base

struct  Child

class  Lazy

class  PortsAccess

struct  Source


Public Types

enum class  TYPE {
  INVALID ,
  BASIC ,
  BATCH ,
  SPLIT_MERGE ,
  ITERATION ,
  SEQUENCING ,
  RECURSION_STEP ,
  CURRENT_ITERATION_VALUE ,
  CURRENT_ITERATION_VALUE_WITH_INIT ,
  COPY ,
  SET_TRUE ,
  NOP ,
  SUBTRACTIVE_DOMAIN ,
  JOIN ,
  CONTROL_TRANSFER ,
  MAX_WITHOUT_FLAG ,
  VARIABLE_MASK ,
  MIN_FLAG ,
  VALUE_PORT_MASK ,
  INPUT_PORT_MASK ,
  EXPORTED_PORT ,
  VIRTUAL_INPUT_PORT ,
  OUTPUT_PORT_MASK ,
  VARIABLE ,
  PORT_MASK ,
  FACTOR_MASK ,
  ROOT ,
  WHILE_CONDITION ,
  INDEFINITE_LOOP ,
  BLOCK ,
  TOP_LEVEL_FACTOR_MASK ,
  FRAME_MASK ,
  TOP_LEVEL_FRAME ,
  FRAME ,
  EVENT_MASK ,
  EVENT ,
  FACTOR_HEAD_MASK ,
  BLOCK_HEAD ,
  CONDITIONAL_HEAD ,
  RECURSION_HEAD ,
  DEFINITE_FACTOR_HEAD_MASK ,
  CONTAINER_LOOP_HEAD_MASK ,
  CONTAINER_OUTPUT_HEAD_MASK ,
  DEFINITE_FACTOR_MASK ,
  CONTAINER_OUTPUT_ELEMENT_MASK ,
  INDEXABLE_FACTOR_MASK ,
  DIMENSIONAL_FACTOR_TEST ,
  CONTAINER_LOOP_MASK ,
  DEFINITE_LOOP_HEAD ,
  CONTAINER_LOOP_HEAD ,
  ARRAY_LOOP_HEAD ,
  CONTAINER_LOOP ,
  ARRAY_LOOP ,
  CONTAINER_OUTPUT_HEAD ,
  CONTAINER_OUTPUT_ELEMENT ,
  ARRAY_OUTPUT_ELEMENT ,
  DEFINITE_LOOP ,
  GENERIC_DEFINITE_LOOP ,
  RECURSION ,
  INPUT_ELEMENT_MASK ,
  ARRAY_INPUT_ELEMENT ,
  CONTAINER_INPUT_ELEMENT ,
  INPUT_MASK ,
  OUTPUT_MASK ,
  CONDITIONAL_MASK ,
  IF ,
  CONTAINER_MASK ,
  CONTAINER ,
  ARRAY_CONTAINER ,
  ARRAY ,
  CONTAINER_OUTPUT_MASK ,
  CONTAINER_OUTPUT ,
  CONTAINER_INPUT_GROUP_MASK ,
  CONTAINER_INPUT_GROUP ,
  FACTOR_WITH_FACTOR_VARIABLE ,
  ALL
}

enum class  FLAGS : Int64 {
  NONE ,
  STATE ,
  STATE_MODIFIER ,
  LOCAL ,
  PERMANENT ,
  CACHED ,
  CURRENT_ITV ,
  NEXT_ITV ,
  CONTAINER_MEMBER ,
  COMMUTATIVE ,
  STATE_MAPPER ,
  PARAMETER ,
  INPUT_WITHOUT_VALUE ,
  OUTER_DOMAIN ,
  SUSPEND ,
  INDEPENDENT ,
  INCLUDE_IN_PREDECESSORS ,
  FACTOR_REFERENCE ,
  OPTIONAL_INPUT ,
  CURRENT_ITV_GROUP ,
  NEXT_ITV_GROUP ,
  NEW_UNIQUE_NAME ,
  TIME_LOOP ,
  UNDERSCORE_NUMBER_PREFIX ,
  WRAPPER_DONT_WRAP ,
  WRAPPER_HIDDEN ,
  WRAPPER_KEEP_LETTER_CASE ,
  WRAPPER_LAMBDA ,
  WRAPPER_USE_ATTRIBUTE_RESOURCES ,
  WRAPPER_FIXED_VARIADIC ,
  WRAPPER_COPIED_VARIADIC ,
  WRAPPER_INNER_DOMAIN ,
  WRAPPER_OUTER_DOMAIN ,
  WRAPPER_ENCLOSING_DOMAIN ,
  WRAPPER_STREAM ,
  WRAPPER_CONTEXT ,
  NO_LIFETIME_PORT ,
  NO_FACTOR_NODES ,
  WRAPPER_FLAGS ,
  ITV_MASK ,
  ITV_GROUP_MASK ,
  PORT_MODIFIERS ,
  MODIFIERS ,
  PORTINFO_FLAGS ,
  ALL
}

enum class  PORTSACCESS_FLAGS {
  NONE ,
  ITERATION ,
  CONTAINER_MASK ,
  CONST_MASK ,
  BATCH ,
  BATCH_ACCESS ,
  CONTAINER ,
  CONST_CONTAINER ,
  DIRECT_ACCESS_TEST
}

template<typename PORT >
using Input = typename PORT::PrivateInput

template<typename... PORTS>
using Ports = typename PortsAccess< PORTSACCESS_FLAGS::NONE, PORTS... >::Members


Public Member Functions

enum maxon::corenodes::MicroNode::TYPE MAXON_ENUM_ORDERED_FLAGS_CLASS (TYPE)

enum maxon::corenodes::MicroNode::FLAGS Int64 MAXON_ENUM_FLAGS_CLASS (FLAGS)

const Base & ToBase () const

Base & ToBase ()

Bool HasSameClass (const MicroNode &other) const

const MicroNodeInterface * GetNode () const

MicroNodeInterface * GetNode ()

TYPE GetType () const

FLAGS GetFlags () const

enum maxon::corenodes::MicroNode::PORTSACCESS_FLAGS MAXON_ENUM_FLAGS_CLASS (PORTSACCESS_FLAGS)


Static Public Member Functions

static void InitUserData ()

static void GetLlvmAssembly (const LlvmGlobalsReceiver &)


Public Attributes

class maxon::corenodes::MicroNode::Base MAXON_ENUM_FLAGS_CLASS


Static Public Attributes

static const TYPE INPUT_TYPE_MASK

static const TYPE OUTPUT_TYPE_MASK

static const FLAGS MICRONODE_FLAGS


Member Typedef Documentation

◆ Input

using Input = typename PORT::PrivateInput

◆ Ports

using Ports = typename PortsAccess<PORTSACCESS_FLAGS::NONE, PORTS...>::Members

You have to use {const Ports<...>&} as the parameter type of the Process method of a BasicMicroNode.

Template Parameters
PORTSThe ports which shall be accessed within the Process method.

Member Enumeration Documentation

◆ TYPE

enum TYPE
strong

This enum lists the defined micro node types.

Enumerator
INVALID
BASIC

Enum value for BasicMicroNode.

BATCH
SPLIT_MERGE
ITERATION
SEQUENCING
RECURSION_STEP
CURRENT_ITERATION_VALUE
CURRENT_ITERATION_VALUE_WITH_INIT
COPY
SET_TRUE
NOP
SUBTRACTIVE_DOMAIN
JOIN
CONTROL_TRANSFER
MAX_WITHOUT_FLAG
VARIABLE_MASK
MIN_FLAG
VALUE_PORT_MASK
INPUT_PORT_MASK
EXPORTED_PORT
VIRTUAL_INPUT_PORT
OUTPUT_PORT_MASK
VARIABLE
PORT_MASK
FACTOR_MASK
ROOT
WHILE_CONDITION
INDEFINITE_LOOP
BLOCK
TOP_LEVEL_FACTOR_MASK
FRAME_MASK
TOP_LEVEL_FRAME
FRAME
EVENT_MASK
EVENT
FACTOR_HEAD_MASK
BLOCK_HEAD
CONDITIONAL_HEAD
RECURSION_HEAD
DEFINITE_FACTOR_HEAD_MASK
CONTAINER_LOOP_HEAD_MASK
CONTAINER_OUTPUT_HEAD_MASK
DEFINITE_FACTOR_MASK
CONTAINER_OUTPUT_ELEMENT_MASK
INDEXABLE_FACTOR_MASK
DIMENSIONAL_FACTOR_TEST
CONTAINER_LOOP_MASK
DEFINITE_LOOP_HEAD
CONTAINER_LOOP_HEAD
ARRAY_LOOP_HEAD
CONTAINER_LOOP
ARRAY_LOOP
CONTAINER_OUTPUT_HEAD
CONTAINER_OUTPUT_ELEMENT
ARRAY_OUTPUT_ELEMENT
DEFINITE_LOOP
GENERIC_DEFINITE_LOOP
RECURSION
INPUT_ELEMENT_MASK
ARRAY_INPUT_ELEMENT
CONTAINER_INPUT_ELEMENT
INPUT_MASK
OUTPUT_MASK
CONDITIONAL_MASK
IF
CONTAINER_MASK
CONTAINER
ARRAY_CONTAINER
ARRAY
CONTAINER_OUTPUT_MASK
CONTAINER_OUTPUT
CONTAINER_INPUT_GROUP_MASK
CONTAINER_INPUT_GROUP
FACTOR_WITH_FACTOR_VARIABLE
ALL

◆ FLAGS

enum FLAGS : Int64
strong

This enum lists the flags for micro nodes as returned by GetFlags().

Enumerator
NONE

No flag set.

STATE
STATE_MODIFIER
LOCAL
PERMANENT
CACHED
CURRENT_ITV
NEXT_ITV
CONTAINER_MEMBER
COMMUTATIVE
STATE_MAPPER
PARAMETER

Set for ports added by ParameterBuilder::AddParameter, ports that don't have input/default values given by the graph (like component access ports).

INPUT_WITHOUT_VALUE
OUTER_DOMAIN
SUSPEND
INDEPENDENT
INCLUDE_IN_PREDECESSORS
FACTOR_REFERENCE
OPTIONAL_INPUT
CURRENT_ITV_GROUP
NEXT_ITV_GROUP
NEW_UNIQUE_NAME
TIME_LOOP
UNDERSCORE_NUMBER_PREFIX
WRAPPER_DONT_WRAP
WRAPPER_HIDDEN
WRAPPER_KEEP_LETTER_CASE
WRAPPER_LAMBDA
WRAPPER_USE_ATTRIBUTE_RESOURCES
WRAPPER_FIXED_VARIADIC
WRAPPER_COPIED_VARIADIC
WRAPPER_INNER_DOMAIN

Marker flag for inner-domain ports, used by the core node wrapper.

WRAPPER_OUTER_DOMAIN

Marker flag for outer-domain ports, used by the core node wrapper.

WRAPPER_ENCLOSING_DOMAIN

Marker flag for enclosing-domain ports, used by the core node wrapper.

WRAPPER_STREAM

Marker flag for stream ports, used by the core node wrapper.

WRAPPER_CONTEXT

Marker flag for context ports, used by the core node wrapper.

NO_LIFETIME_PORT
NO_FACTOR_NODES
WRAPPER_FLAGS
ITV_MASK
ITV_GROUP_MASK
PORT_MODIFIERS
MODIFIERS
PORTINFO_FLAGS
ALL

◆ PORTSACCESS_FLAGS

enum PORTSACCESS_FLAGS
strong
Enumerator
NONE
ITERATION
CONTAINER_MASK
CONST_MASK
BATCH
BATCH_ACCESS
CONTAINER
CONST_CONTAINER
DIRECT_ACCESS_TEST

Member Function Documentation

◆ MAXON_ENUM_ORDERED_FLAGS_CLASS()

enum maxon::corenodes::MicroNode::TYPE MAXON_ENUM_ORDERED_FLAGS_CLASS ( TYPE  )

◆ MAXON_ENUM_FLAGS_CLASS() [1/2]

enum maxon::corenodes::MicroNode::FLAGS Int64 MAXON_ENUM_FLAGS_CLASS ( FLAGS  )

◆ ToBase() [1/2]

const Base& ToBase ( ) const

Casts this MicroNode to its Base object. Each MicroNode has a Base as its first data member.

Returns
This object, casted to Base.

◆ ToBase() [2/2]

Base& ToBase ( )

Casts this MicroNode to its Base object. Each MicroNode has a Base as its first data member.

Returns
This object, casted to Base.

◆ HasSameClass()

Bool HasSameClass ( const MicroNode &  other) const

Checks if this micro node has the same implementation class as other.

Parameters
[in]otherAnother micro node.
Returns
This object, casted to MicroNode.

◆ GetNode() [1/2]

const MicroNodeInterface* GetNode ( ) const

Returns the MicroNodeInterface instance which owns this MicroNode.

Returns
The owning MicroNodeInterface.

◆ GetNode() [2/2]

MicroNodeInterface* GetNode ( )

Returns the MicroNodeInterface instance which owns this MicroNode.

Returns
The owning MicroNodeInterface.

◆ GetType()

TYPE GetType ( void  ) const

Returns the type of this micro node.

Returns
Type of this micro node.

◆ GetFlags()

FLAGS GetFlags ( void  ) const

Returns the flags of this micro node.

Returns
Flags of this micro node.

◆ MAXON_ENUM_FLAGS_CLASS() [2/2]

enum maxon::corenodes::MicroNode::PORTSACCESS_FLAGS MAXON_ENUM_FLAGS_CLASS ( PORTSACCESS_FLAGS  )

◆ InitUserData()

static void InitUserData ( )
static

◆ GetLlvmAssembly()

static void GetLlvmAssembly ( const LlvmGlobalsReceiver &  )
static

Member Data Documentation

◆ MAXON_ENUM_FLAGS_CLASS

class maxon::corenodes::MicroNode::Base MAXON_ENUM_FLAGS_CLASS

◆ INPUT_TYPE_MASK

const TYPE INPUT_TYPE_MASK
static

◆ OUTPUT_TYPE_MASK

const TYPE OUTPUT_TYPE_MASK
static

◆ MICRONODE_FLAGS

const FLAGS MICRONODE_FLAGS
static
