c4d.utils.GeRayCollider¶

class c4d.utils.GeRayCollider¶

Evaluates intersections between a ray and a polygon object. The ray is defined by a point, a ray and length.

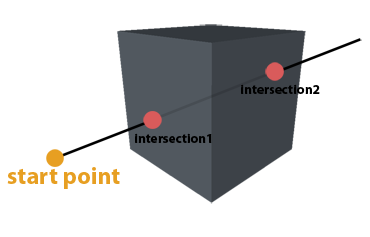

In the following example a ray intersects a cube:

../../../_images/geraycollider_raycollision.png

Methods Signatures

GeRayCollider.__init__(self)

rtype:	c4d.utils.GeRayCollider

`GeRayCollider.Init(self, goal[, force])`	Initializes the ray collider with the object specified by goal.
`GeRayCollider.Intersect(self, ray_p, ray_dir, ...)`	Checks if the line segment specified by ray_p to ray_p + ray_dirray_length* intersects the object.
`GeRayCollider.GetIntersectionCount(self)`	Returns the number of intersections found by `Intersect()`.
`GeRayCollider.GetIntersection(self, number)`	Retrieves the intersection information, found by `GeRayCollider.Intersect()`, by index:
`GeRayCollider.GetNearestIntersection(self)`	Retrieves the intersection, found by `Intersect()`, closest to the start of the ray.

Methods Documentation

GeRayCollider.__init__(self)¶

Return type:	c4d.utils.GeRayCollider
Returns:	A new ray collider.

GeRayCollider.Init(self, goal, force=False)¶

Initializes the ray collider with the object specified by goal.

Parameters:	goal (c4d.PolygonObject) – The object to check for intersections. The object is copied. force (bool) – If False then Cinema checks if the passed object’s `C4DAtom.GetDirty(c4d.DIRTYFLAGS_DATA)` is unchanged. If yes, it does nothing and returns True. If True it always rebuilds the cache.
Return type:	bool
Returns:	True if successful, otherwise False.

GeRayCollider.Intersect(self, ray_p, ray_dir, length, only_test=False)¶

Checks if the line segment specified by ray_p to ray_p + ray_dir*ray_length intersects the object.

Parameters:	ray_p (c4d.Vector) – Start point of the ray in object coordinates ray_dir (c4d.Vector) – Ray direction in object coordinates. ray_length (number) – Ray length. only_test (bool) – If this is True no information about the intersections are stored, so only the return value can be used to tell if there were intersections or not.
Return type:	bool
Returns:	True if there was in intersection, otherwise False

GeRayCollider.GetIntersectionCount(self)¶

Returns the number of intersections found by Intersect().

Return type:	int
Returns:	Number of intersections.

GeRayCollider.GetIntersection(self, number)¶

Retrieves the intersection information, found by GeRayCollider.Intersect(), by index:

import c4d

rc = c4d.utils.GeRayCollider()

intersection = rc.GetIntersection(id)

intersection["face_id"]  # The polygon index, int

intersection["tri_face_id"]  # If first half of quad or triangle face_id + 1, else -(face_id + 1), int

intersection["hitpos"]  # Position of the intersection, c4d.Vector

intersection["distance"]  # Distance to the intersection, float

intersection["s_normal"]  # Same as f_normal (reserved for phong normal at the intersection (Not normalized)), c4d.Vector

intersection["f_normal"]  # Face normal (Not normalized), c4d.Vector

intersection["barrycoords"]  # Barycentric coordinates of the intersection (x = u, y = v, z = d), c4d.Vector

intersection["backface"]  # True if the intersected face's normal points away from the camera, otherwise False, bool

Parameters:	number (int) – Intersection index.
Raises:	IndexError – If intersection index is out of range : 0<=number<`GetIntersectionCount()`.
Return type:	dict
Returns:	The intersection information.

GeRayCollider.GetNearestIntersection(self)¶

Retrieves the intersection, found by Intersect(), closest to the start of the ray.

Return type:	dict
Returns:	The nearest intersection or None if there was no intersection.
