c4d.storage¶

class c4d.storage¶

Types¶

Functions Signatures

`c4d.storage.LoadDialog([type, title, flags, ...])`	Open a load dialog. The look of this dialog depends on the operating system.
`c4d.storage.SaveDialog([type, title, ...])`	Open a save dialog. The look of this dialog depends on the operating system.
`c4d.storage.ShowInFinder(path, open)`	Show the file/path in the Finder (OSX) or Explorer (Windows).
`c4d.storage.GeGetPluginPath()`	Retrieve the path of the current module.
`c4d.storage.GeGetC4DPath(whichpath)`	Gets one of the Cinema 4D paths.
`c4d.storage.GeGetStartupApplication()`	Returns the complete path of the host application (Cinema 4D, BODYPAINT 3D, NET) of the plugin:
`c4d.storage.GeGetStartupWritePath()`	Returns the writeable startup directory. This is the directory where all user data (preferences, libraries etc.) are stored:
`c4d.storage.GeGetMemoryStat()`	Gets Cinema 4D memory statistics.
`c4d.storage.GeMemGetFreePhysicalMemoryEstimate()`	Get the estimated free physical memory.
`c4d.storage.WriteHyperFile(doc, node, filename, ident)`	Writes a single list node to disk as a hyper file.
`c4d.storage.ReadHyperFile(doc, node, filename, ident)`	Reads a single list node from a hyper file on disk. The read data replaces the data in node.
`c4d.storage.GeGetStartupPath()`	Get the path for the main folder Cinema 4D:
`c4d.storage.GetUserSiteSpecificPath()`	Get the path to the site folder in the user folder.
`c4d.storage.GetFreeVolumeSpace(drive)`	Calculate the free space on a volume.
`c4d.storage.GeExecuteProgram(app, path)`	Executes an application.
`c4d.storage.GeExecuteFile(path)`	Executes a file.
`c4d.storage.GeGetMovieInfo(path)`	Get information from a movie file.
`c4d.storage.GeIdentifyFile(name, probe, recognition)`	Identify the file in name.

Functions Documentation

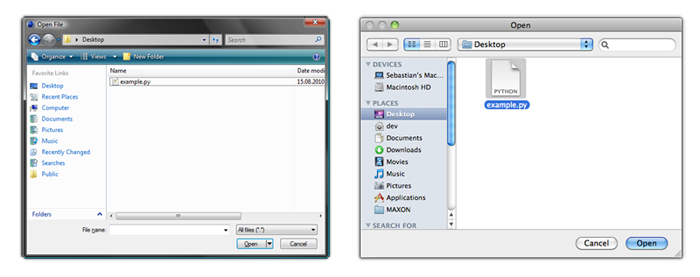

c4d.storage.LoadDialog(type=FILESELECTTYPE_ANYTHING, title="", flags=FILESELECT_LOAD, force_suffix="", def_path="", def_file="")¶

Open a load dialog. The look of this dialog depends on the operating system.

Warning

If the filename returned by LoadDialog() will be passed to a non-Cinema 4D function it must be decoded to an utf-8 object.

import c4d

fn = c4d.storage.LoadDialog()

f = open(fn.decode("utf-8"))

# open() is a non-Cinema 4D function so it needs a decode but it works with a Cinema 4D function:

doc = c4d.documents.LoadDocument(fn)

# or

doc = c4d.documentsLoadDocument(fn.decode("utf8"))

Parameters:

type (int) –
One of the following flags:

FILESELECTTYPE_ANYTHING Any file.

FILESELECTTYPE_IMAGES Image files.

FILESELECTTYPE_SCENES 3D scene files.

FILESELECTTYPE_BODYPAINT BodyPaint 3D files.
title (str) – The title.
flags (int) –
The flags:

FILESELECT_LOAD Load dialog.

FILESELECT_SAVE Save dialog.

FILESELECT_DIRECTORY Folder selection dialog.
force_suffix (str) – Currently not used.
def_path (str) – The default path on popup.
def_file (str) –

New in version R18.057: The default file on popup.

Return type:

str

Returns:

The selected path.

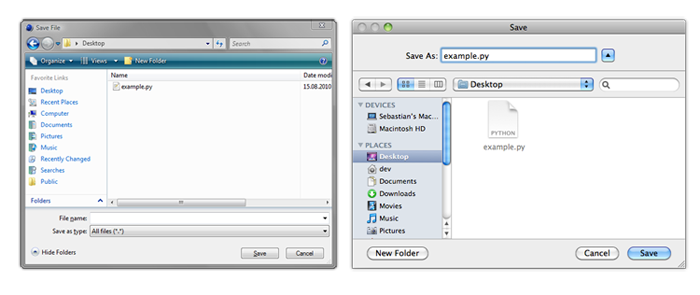

c4d.storage.SaveDialog(type=FILESELECTTYPE_ANYTHING, title="", force_suffix="", def_path="", def_file="")¶

Open a save dialog. The look of this dialog depends on the operating system.

Parameters:

type (int) –
One of the following flags:

FILESELECTTYPE_ANYTHING Any file.

FILESELECTTYPE_IMAGES Image files.

FILESELECTTYPE_SCENES 3D scene files.

FILESELECTTYPE_BODYPAINT BodyPaint 3D files.
title (str) – The title.
force_suffix (str) – The suffix.
def_path (str) – The default path on popup.
def_file (str) –

New in version R18.057: The default file on popup.

Return type:

str

Returns:

The selected path.

c4d.storage.ShowInFinder(path, open)¶

Show the file/path in the Finder (OSX) or Explorer (Windows).

Parameters:	path (str) – The file/path to show. open (bool) – If True the file will be opened by the assigned application.
Return type:	bool
Returns:	True if the path/file exists, otherwise False.

c4d.storage.GeGetPluginPath()¶

Retrieve the path of the current module.

Warning

The Python implementation is different from the C++. In the Python SDK, this function returns the path of the Python SDK module. To get the path of your Python plugin use __file__.

See also

Directory Structure

Return type:	str
Returns:	The path of the Python SDK module.

c4d.storage.GeGetC4DPath(whichpath)¶

Gets one of the Cinema 4D paths.

Parameters:

whichpath (int) –

The path to get:

C4D_PATH_PREFS	Cinema 4D preferences directory.
C4D_PATH_RESOURCE	Cinema 4D resource directory.
C4D_PATH_LIBRARY	Cinema 4D library directory. (Built-in.)
C4D_PATH_LIBRARY_USER	Cinema 4D library path. (Different if multi-user mode is enabled.)
C4D_PATH_ONLINE_HELP	Cinema 4D online help directory.
C4D_PATH_DESKTOP	OS desktop directory.
C4D_PATH_HOME	OS home directory.
C4D_PATH_STARTUPWRITE	Writable startup directory.
C4D_PATH_MYDOCUMENTS	The user’s documents directory.
C4D_PATH_APPLICATION	OS application directory.

Return type: str

Returns: The retrieved path.

c4d.storage.GeGetStartupApplication()¶

Returns the complete path of the host application (Cinema 4D, BODYPAINT 3D, NET) of the plugin:

(Mac) e.g: ‘/Applications/MAXON/Cinema 4D R21_022/Cinema 4D.app’ (Windows) e.g: ‘C:Program FilesMAXONCinema 4D R21_022Cinema 4D.exe’

Return type:	str
Returns:	The complete path to the host application.

c4d.storage.GeGetStartupWritePath()¶

Returns the writeable startup directory. This is the directory where all user data (preferences, libraries etc.) are stored:

(Mac) e.g: ‘/Users/UserName/Library/Preferences/MAXON/Cinema 4D R12_C333CB6C’ (Windows) e.g: ‘C:UsersUserNameAppDataRoamingMaxonCinema 4D R21_022_95E9A228’

Note

For example to store plugin preferences since modern OS do not allow to write files into the application folder.

Return type:	str
Returns:	The writeable startup directory.

c4d.storage.GeGetMemoryStat()¶

Gets Cinema 4D memory statistics.

Return type: c4d.BaseContainer

Returns:

Can be None if receiving memory container failed. Assigned statistics:

C4D_MEMORY_STAT_MEMORY_INUSE	long	Bytes in use.
C4D_MEMORY_STAT_MEMORY_PEAK	long	Peak usage in bytes.
C4D_MEMORY_STAT_NO_OF_ALLOCATIONS_TOTAL	long	Total number of allocations.
C4D_MEMORY_STAT_NO_OF_ALLOCATIONS_CURRENT	long	Current number of allocations.
C4D_MEMORY_STAT_EOGL_TEXBUFFER	long	Texture buffer usage.
C4D_MEMORY_STAT_EOGL_VERTEXBUFFER	long	Vertex buffer usage.
C4D_MEMORY_STAT_LOWMEMCNT	int	Number of low memory conditions (out of memory).
C4D_MEMORY_STAT_EOGL_VERTEXBUFFER_CNT	int	Number of VBOs (Vertex Buffer Objects).
C4D_MEMORY_STAT_EOGL_TEXTUREBUFFER_CNT	int	Number of texture buffers.
C4D_MEMORY_STAT_OPENGL_TOTAL	int	Total OpenGL memory in KB.
C4D_MEMORY_STAT_OPENGL_FREE	int	Free OpenGL memory in KB.

c4d.storage.GeMemGetFreePhysicalMemoryEstimate()¶

Get the estimated free physical memory.

Return type:	long
Returns:	The estiumated free physical memory.

c4d.storage.WriteHyperFile(doc, node, filename, ident)¶

Writes a single list node to disk as a hyper file.

Parameters:

doc (c4d.documents.BaseDocument) – The document of the node.
node (c4d.GeListNode) – The node to write.
filename (Union[str, c4d.storage.MemoryFileStruct]) – A file to write to.
ident (long) – A unique file identification, to make sure that you only read your own files.

Return type:

int

Returns:

The result:

FILEERROR_NONE	No error.
FILEERROR_OPEN	Problems opening the file.
FILEERROR_CLOSE	Problems closing the file.
FILEERROR_READ	Problems reading the file.
FILEERROR_WRITE	Problems writing the file.
FILEERROR_SEEK	Problems seeking the file.
FILEERROR_INVALID	Invalid parameter or operation (e.g. writing in read-mode).
FILEERROR_MEMORY	Not enough memory.
FILEERROR_USERBREAK	User break.
FILEERROR_WRONG_VALUE	Other value detected than expected.
FILEERROR_CHUNK_NUMBER	Wrong number of chunks or sub-chunks detected.
FILEERROR_VALUE_NO_CHUNK	There was a value without any enclosing start/stop chunks.
FILEERROR_FILE_END	The file end was reached without finishing reading.
FILEERROR_UNKNOWN_VALUE	Unknown value detected.

c4d.storage.ReadHyperFile(doc, node, filename, ident)¶

Reads a single list node from a hyper file on disk. The read data replaces the data in node.

Parameters:

doc (c4d.documents.BaseDocument) – The document of the node.
node (c4d.GeListNode) – The node to read to.
filename (Union[str, c4d.storage.MemoryFileStruct]) – A file to read from.
ident (long) – A unique file identification, to make sure that you only read your own files.

Return type:

int

Returns:

The result:

FILEERROR_NONE	No error.
FILEERROR_OPEN	Problems opening the file.
FILEERROR_CLOSE	Problems closing the file.
FILEERROR_READ	Problems reading the file.
FILEERROR_WRITE	Problems writing the file.
FILEERROR_SEEK	Problems seeking the file.
FILEERROR_INVALID	Invalid parameter or operation (e.g. writing in read-mode).
FILEERROR_MEMORY	Not enough memory.
FILEERROR_USERBREAK	User break.
FILEERROR_WRONG_VALUE	Other value detected than expected.
FILEERROR_CHUNK_NUMBER	Wrong number of chunks or sub-chunks detected.
FILEERROR_VALUE_NO_CHUNK	There was a value without any enclosing start/stop chunks.
FILEERROR_FILE_END	The file end was reached without finishing reading.
FILEERROR_UNKNOWN_VALUE	Unknown value detected.

c4d.storage.GeGetStartupPath()¶

Get the path for the main folder Cinema 4D:

(Mac) e.g: ‘/Applications/MAXON/Cinema 4D R12’ (Windows) e.g: ‘C:Program FilesMAXONCinema 4D R21_022’

Return type:	str
Returns:	The main path for the Cinema 4D application.

c4d.storage.GetUserSiteSpecificPath()¶

Get the path to the site folder in the user folder.

(Windows 64-bits) e.g: ‘C:/Users/$UserName/AppData/Roaming/MAXON/R15/library/python/packages/win64’

New in version R15.037.

Note

This folder exists so that 3rd party packages can be installed in it.

Return type:	str
Returns:	The path to the site folder in the user folder.

c4d.storage.GetFreeVolumeSpace(drive)¶

Calculate the free space on a volume.

New in version R16.021.

Parameters:	drive (str) – Can point to a volume or directory.
Return type:	tuple(long, long)
Returns:	The number of available bytes on the volume and the total size of the volume in bytes.

c4d.storage.GeExecuteProgram(app, path)¶

Executes an application.

Note

The application is started asynchronously.

Parameters:	app (str) – The name of the application to execute. path (str) – The name of a file to open using the application.
Return type:	bool
Returns:	True if the application was executed, otherwise False.

c4d.storage.GeExecuteFile(path)¶

Executes a file.

Note

Opens a file as if the user double-clicked it: the default application for this file will open.

Parameters:	path (str) – The name of the application to execute.
Return type:	bool
Returns:	True if the application was executed, otherwise False.

c4d.storage.GeGetMovieInfo(path)¶

Get information from a movie file.

Parameters:	path (Union[str, c4d.storage.MemoryFileStruct]) – The path of the movie file.
Return type:	dict{frames: int, fps: float}
Returns:	The number of frames and frames per second.

c4d.storage.GeIdentifyFile(name, probe, recognition)¶

Identify the file in name.

Parameters:

name (Union[str, c4d.storage.MemoryFileStruct]) – The file to check.
probe (buffer) – The start of a small chunk of data from the start of the file for testing this file type. Usually the probe size is 1024 bytes.

recognition (int) –

Identification flags:

IDENTIFYFILE_NONE	None.
IDENTIFYFILE_SCENE	Scene file.
IDENTIFYFILE_IMAGE	Image file.
IDENTIFYFILE_MOVIE	Movie file.
IDENTIFYFILE_SKIPQUICKTIME	Skip files that require Quicktime.
IDENTIFYFILE_SCRIPT	Script file.
IDENTIFYFILE_SOUND	Sound file.
IDENTIFYFILE_LAYOUT	Layout file.
IDENTIFYFILE_PYTHON	Python file.

Return type:

tuple(int, BasePlugin)

Returns:

The result and, for image formats, the image loader that was identified.

IDENTIFYFILE_NONE	None.
IDENTIFYFILE_SCENE	Scene file.
IDENTIFYFILE_IMAGE	Image file.
IDENTIFYFILE_MOVIE	Movie file.
IDENTIFYFILE_SKIPQUICKTIME	Skip files that require Quicktime.
IDENTIFYFILE_SCRIPT	Script file.
IDENTIFYFILE_SOUND	Sound file.
IDENTIFYFILE_LAYOUT	Layout file.
IDENTIFYFILE_PYTHON	Python file.
